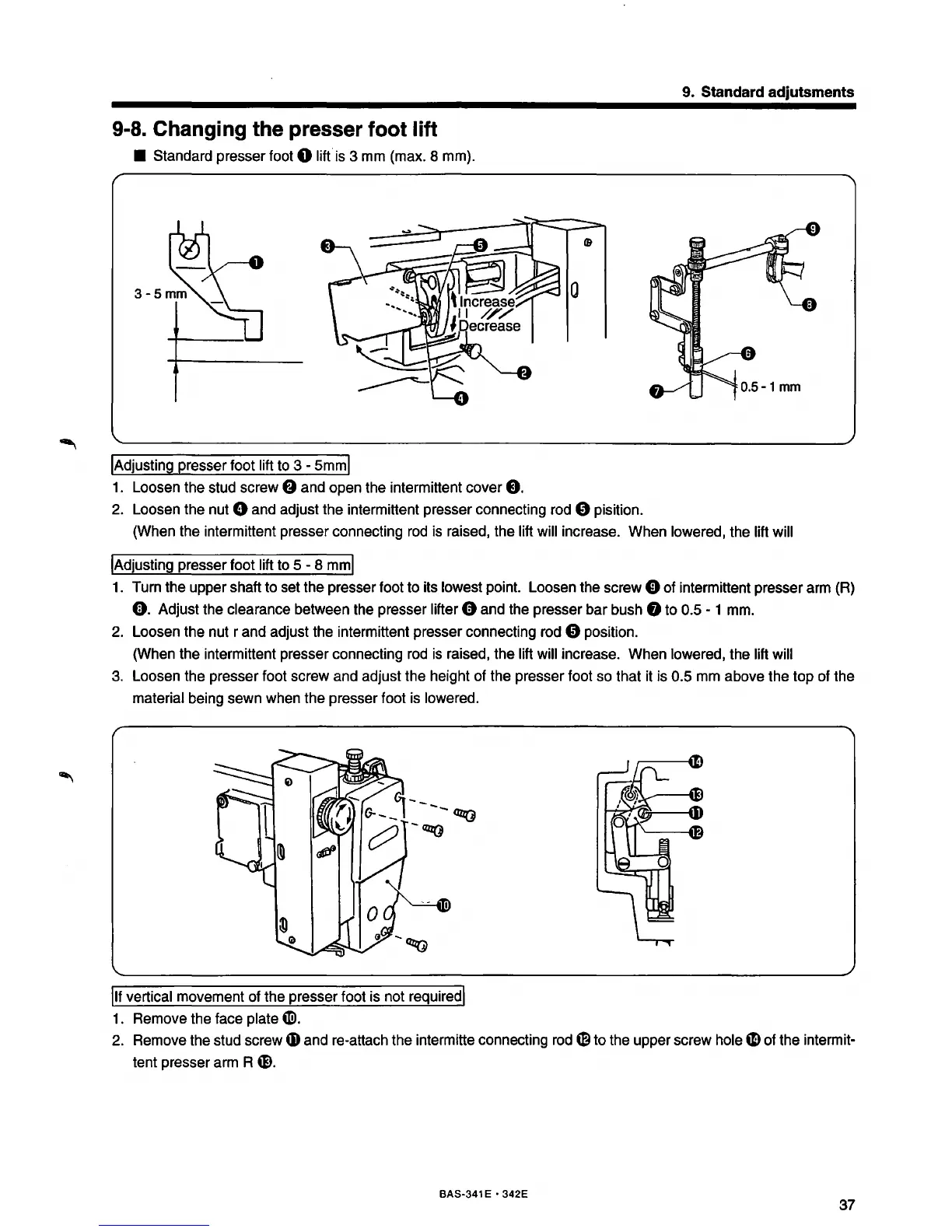

9. Standard adjutsments
9-8. Changing the presser foot lift
• Standard presser foot 0 lift' is 3 mm (max. 8 mm).
!Adjusting presser foot
lift to
3-
5mml
1. Loosen the stud screw 8 and open the intermittent cover
8.
2. Loosen the nut 0 and adjust the intermittent presser connecting rod 0 pisition.
(When the intermittent presser connecting rod is raised, the lift will increase. When lowered, the lift will
!Adjusting presser foot lift to
5-8
mml
1. Turn the upper shaft to set the presser foot to its lowest point. Loosen the screw 0 of intermittent presser arm (R)
0.
Adjust the clearance between the presser lifter 0 and the presser bar bush 8 to
0.5-
1 mm.
2.
Loosen the nut r and adjust the intermittent presser connecting rod 0 position.
(When the intermittent presser connecting rod
is
raised, the lift will increase. When lowered, the lift will
3.
Loosen the presser foot screw and adjust the height of the presser foot so that it is 0.5 mm above the top of the
material being sewn when the presser foot is lowered.
I If vertical movement of the presser foot is not required!
1. Remove the face
plate«!).
2.
Remove the stud screw m and re-attach the intermitte connecting rod
~to
the upper screw hole m of the intermit-
tent presser arm
R E).
BAS-341 E • 342E
37
