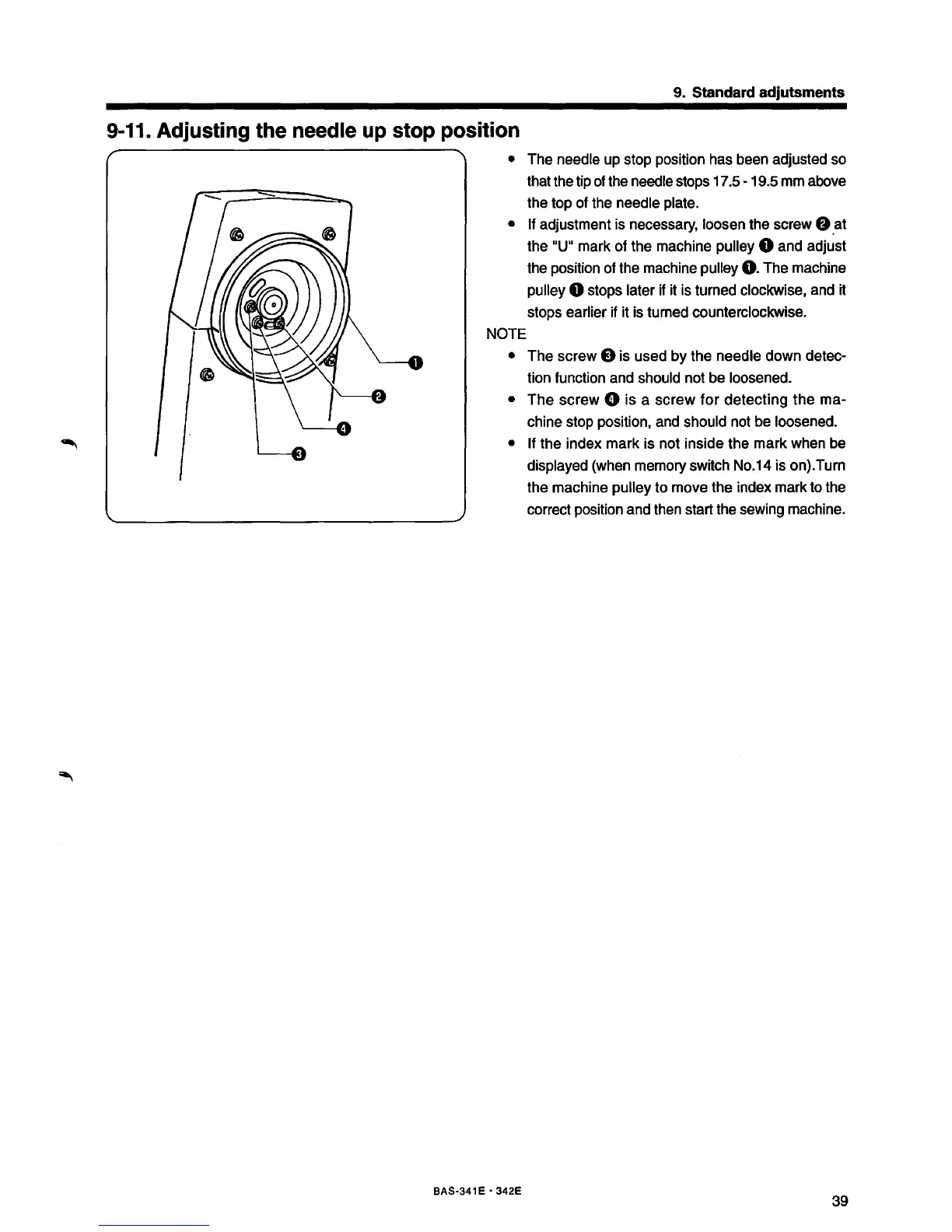

9-11. Adjusting the needle up stop position
• The needle up stop position has been adjusted so
that the tip of the needle stops 17.5 - 19.5 mm above
the top of the needle plate.
• If adjustment is necessary, loosen the screw 8 .at
the "U
11
mark of the machine pulley 0 and adjust
the position of the machine pulley 0. The machine
pulley 0 stops later if it is turned clockwise, and it
stops earlier if it is turned counterclockwise.
NOTE
• The screw 8 is used by the needle down detec-
tion function and should not be loosened.
• The screw 0 is a screw for detecting the ma-
chine stop position, and should not be loosened.
• If the index mark is not inside the mark when be
displayed (when memory switch No.14 is on). Turn
the machine pulley to move the index mark to the
correct position and then start the sewing machine.
