4.
Preparation

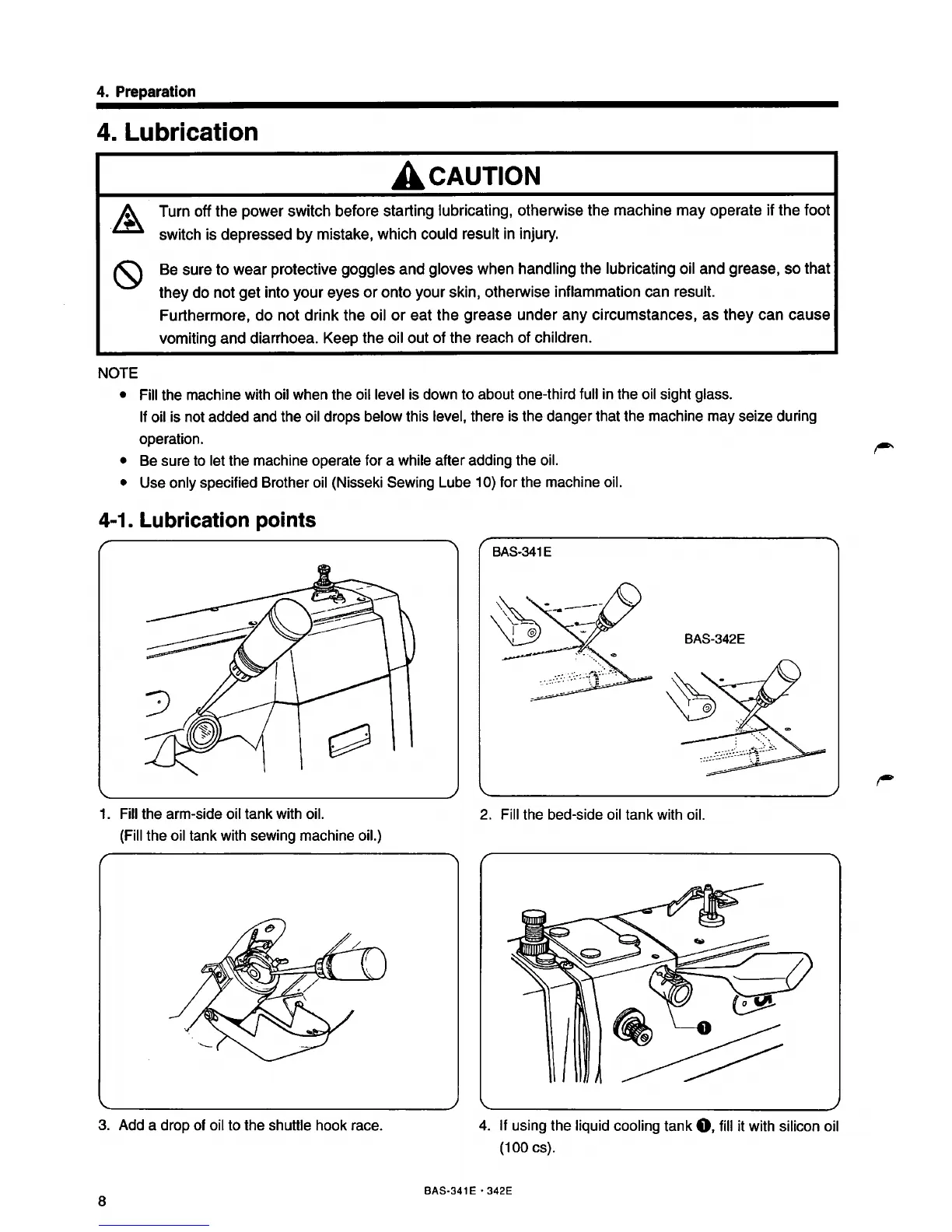

4. Lubrication
A cAUTION
Turn off
the
power switch before starting lubricating, otherwise
the
machine
may
operate if
the
foot
switch
is
depressed
by
mistake, which could result in injury.
Be sure
to
wear
protective goggles
and
gloves when handling the lubricating oil and grease,
so
that
they
do not
get
into
your
eyes
or
onto your skin, otherwise inflammation can result.
Furthermore,
do
not
drink
the oil
or
eat
the
grease
under
any
circumstances,
as
they
can
cause
vomiting and diarrhoea. Keep the oil out
of
the reach
of
children.
NOTE
• Fill the machine with oil when the oil level
is
down to about one-third full in the oil sight glass.
If oil is not added and the oil drops below this level, there
is
the danger that the machine may seize during
operation.
• Be sure to let the machine operate for a while after adding the oil.
• Use only specified Brother oil (Nisseki Sewing Lube 1
0)
for the machine oil.
4-1. Lubrication points
1. Fill the arm-side oil tank with oil.
(Fill the oil tank with sewing machine oil.)
3. Add a drop of oil to the shuttle hook race.
8
BAS-341E
BAS-342E
2. Fill the bed-side oil tank with oil.
4. If using the liquid cooling tank
0,
fill it with silicon oil
(100 cs).
BAS-341 E • 342E
