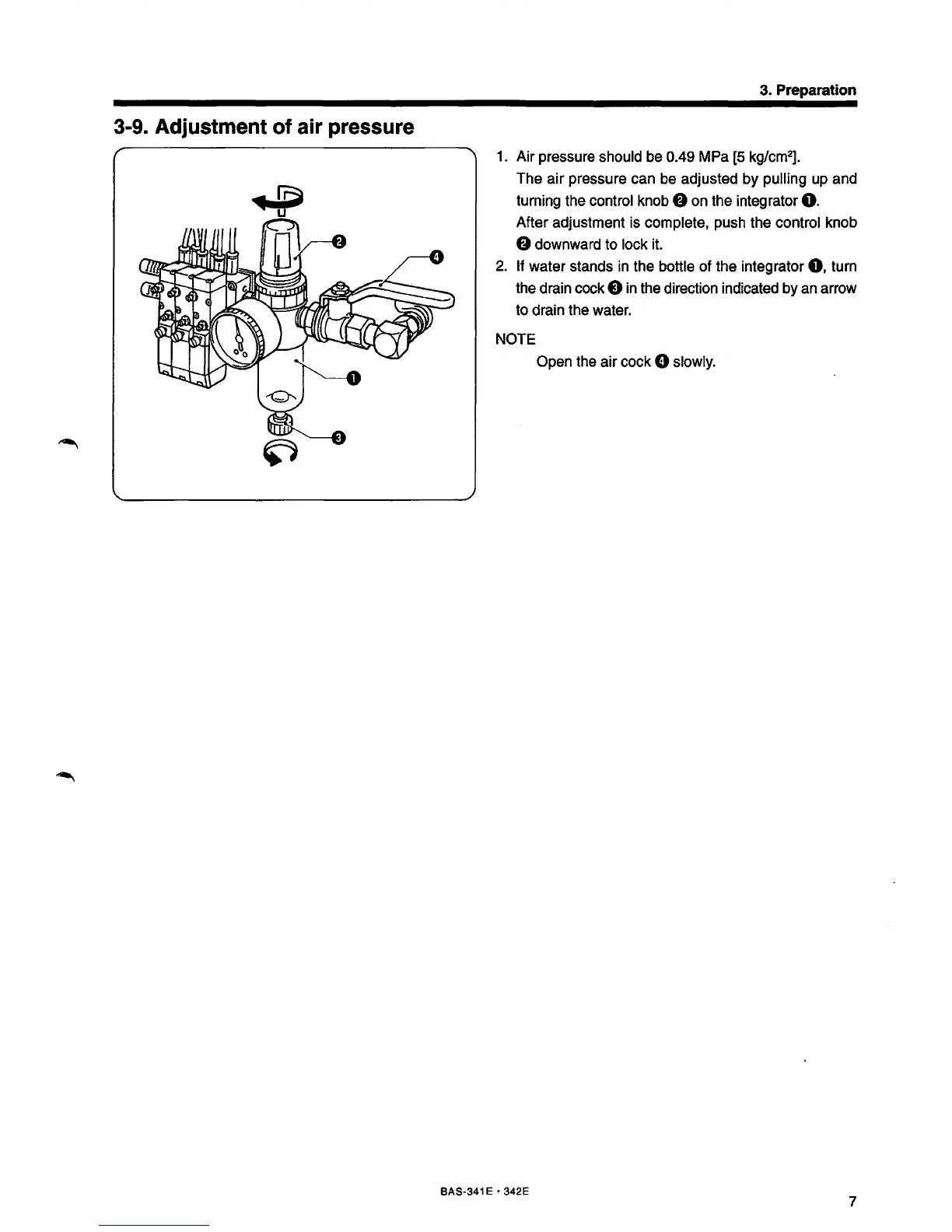

3-9. Adjustment of air pressure
3. Preparation
1. Air pressure should be 0.49 MPa [5 kg/cm2].
The air pressure can be adjusted by pulling up and
turning the
control knob 8 on the integrator 0.
After adjustment is complete, push the control knob
8 downward to lock it.
2. If water stands in the bottle of the integrator 0, turn
the drain cock
e in the direction indicated by an arrow
to drain the water.
NOTE
Open
the air cock 0 slowly.
BAS-341 E • 342E
7
