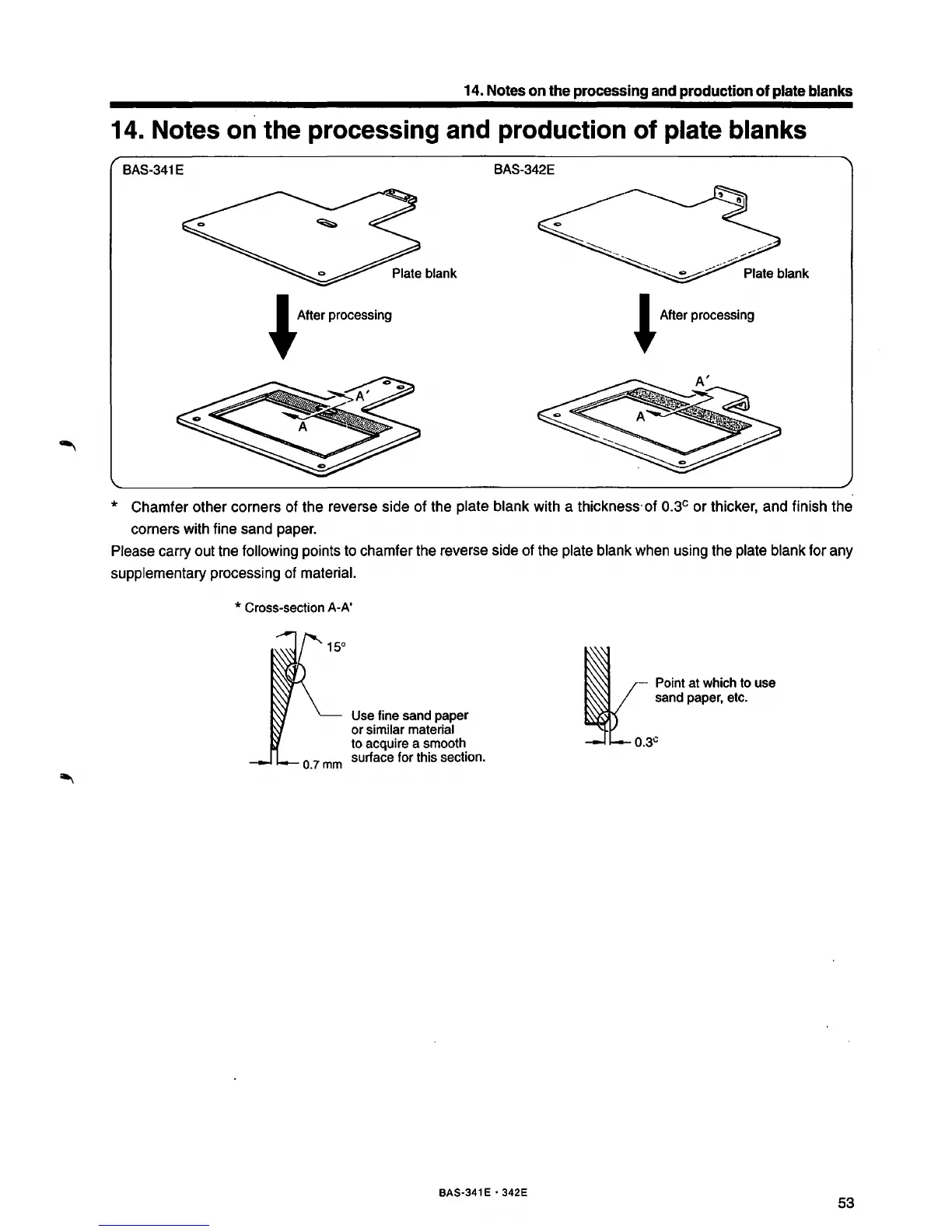

14. Notes on the processing and production of plate blanks
BAS-341E
BAS-342E
'After
processing
'After
processing
* Chamfer other corners
of
the reverse side
of
the
plate blank with a thickness·
of
0.3° or thicker,
and
finish the
corners
with
fine
sand
paper.
Please
carry
out
tne
following
points
to
chamfer
the
reverse
side
of
the
plate
blank
when
using
the
plate
blank
for any
supplementary processing
of
material.
*Cross-section A-A'
Use fine sand paper
or
similar material
to acquire a smooth
surface for this section.
BAS-341 E • 342E
Point at which to use
sand paper, etc.
53
