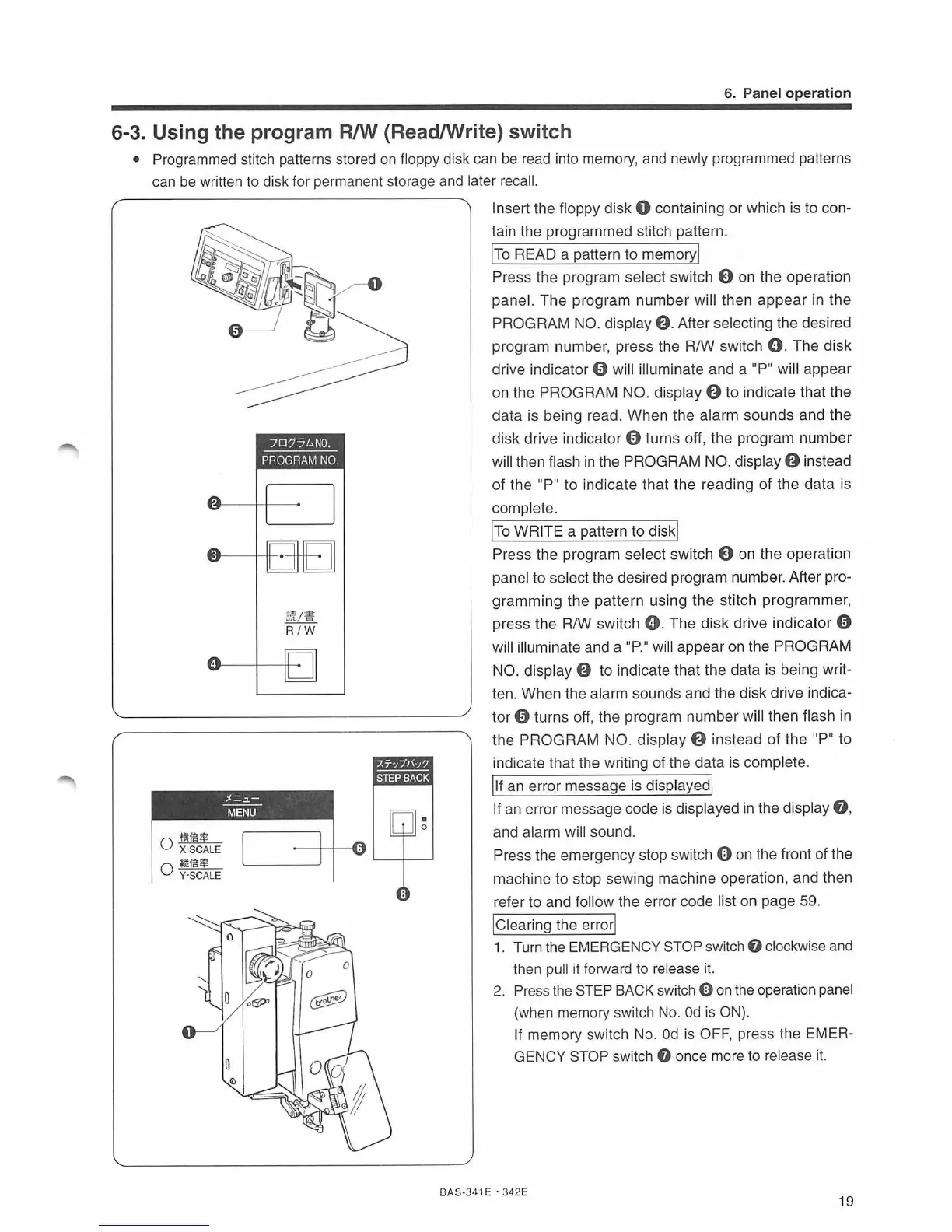

6. Panel operation
6-3. Using the program RIW (Read/Write) switch
• Programmed stitch patterns stored
on
floppy disk can
be
read into memory, and newly programmed patterns
can be written to disk for permanent storage and later
re
ca
ll.
0
-llffl$
X-SCALE
0
~ffl$
Y·SCALE
~ft/!f
R / W
Insert the floppy disk 0 containing or which is to con-
tain the programmed stitch pattern.
ITo
READ a pattern to memory!
Press the program select switch 8 on the operation
panel.
The
program
number
will then
appear
in
the
PROGRAM NO. displ
ay
0 . After selecting the desired
program
number
, press the RIW switch
0.
The disk
dr
ive indicator 0 will illuminate
and
a "P" will appear
on the
PROGRAM NO. display 0 to indicate that the
data
is being read. When the alarm sounds and the
disk drive indica
tor
0 turns off, the program number
wi
ll
then flash
in
the PROGRAM NO. displ
ay
0 instead
of
the "
P"
to indicate
that
the reading
of
the
data
is
complete.
ITo
WRITE a pattern to disk!
Press the program select switch 8 on
the
operation
panel to select the desired program number. After pro-
gramm
ing the pattern using the st
it
ch programmer,
press the
RIW switch
0.
The disk drive indicator 0
wi
ll
illuminate and a
"P."
will appear
on
the PROGRAM
NO.
display 0 to indicate that the data is being writ-
ten. When the alarm sounds and the disk drive indica-
tor
0 turns off, the program number will then flash
in
the
PROGRAM NO. display 0 instead
of
the
"P" to
indicate that the writing of the data is complete.
llf an error message is displayed!
If an error message code is displayed
in
the display
0,
and alarm will sound.
Press the emergency stop switch 0 on the front of the
machine to stop sewing machine operation, and then
refer to and
follow the error code list on page 59.
!clearing the
errorl
1. Turn the EMERGENCY STOP switch
f)
clockwise and
then pull it forward to release it.
2.
Press
the
STEP
BACK switch 0
on
the
operation p
ane
l
(when memory switch
No.
Od
is ON).
If
memory
sw
it
ch N
o.
Od
is OFF, press the EMER-
GENCY STOP switch
f)
once more to release
it.
