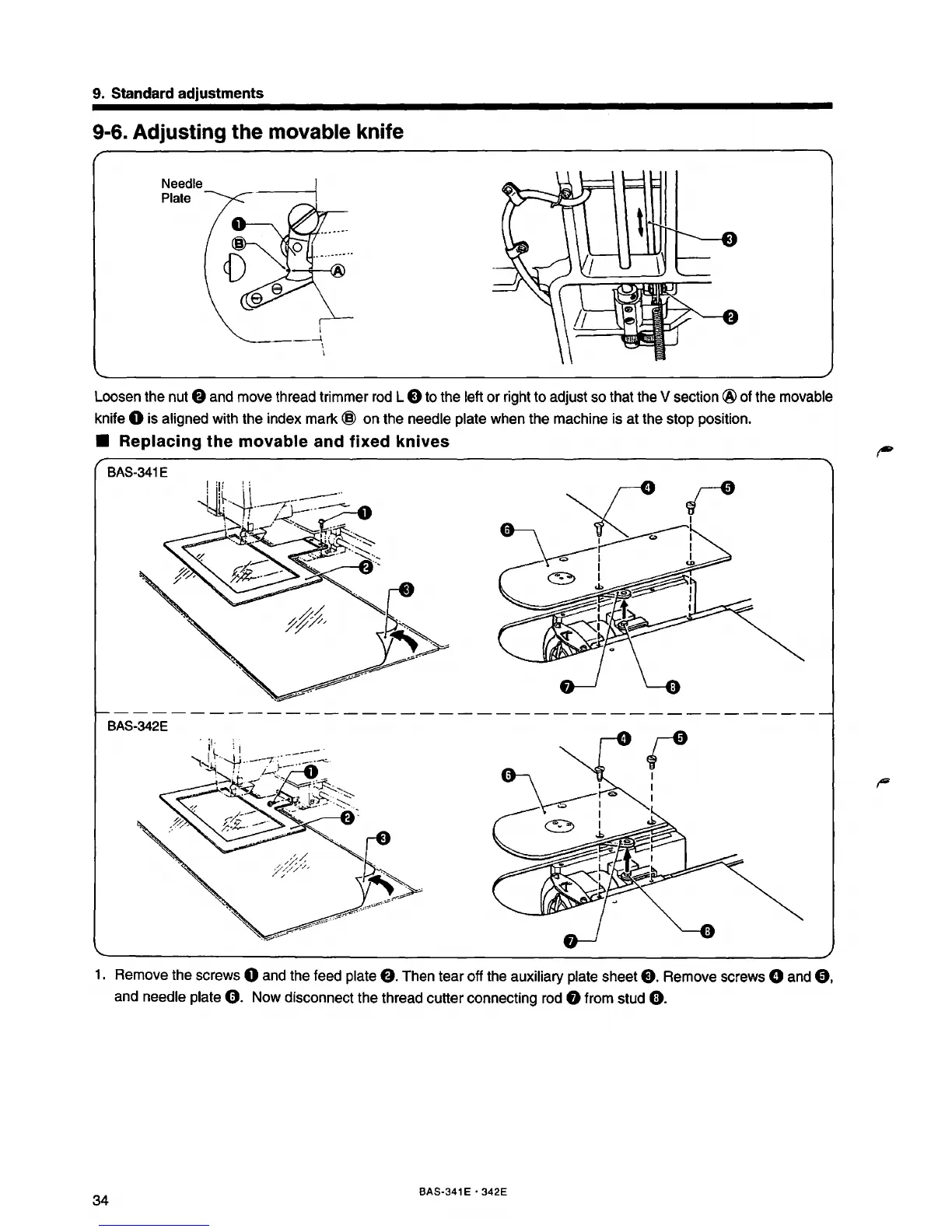

9. Standard adjustments
9-6. Adjusting the movable knife
Needle
Plate
Loosen the nut 8 and move thread trimmer rod L 8 to the left
or
right to adjust so that the V
section®
of the movable
knife 0 is aligned with the index mark ® on the needle plate when the machine is at the stop position.
• Replacing the movable and fixed knives
BAS-341E
BAS-342E
1.
Remove the screws 0 and the feed plate
8.
Then tear off the auxiliary plate sheet
8.
Remove screws 0 and
0,
and needle plate
8.
Now disconnect the thread cutter connecting rod
f)
from stud
0.
34
BAS-341 E • 342E
