Brother BAS-341E - Page 52

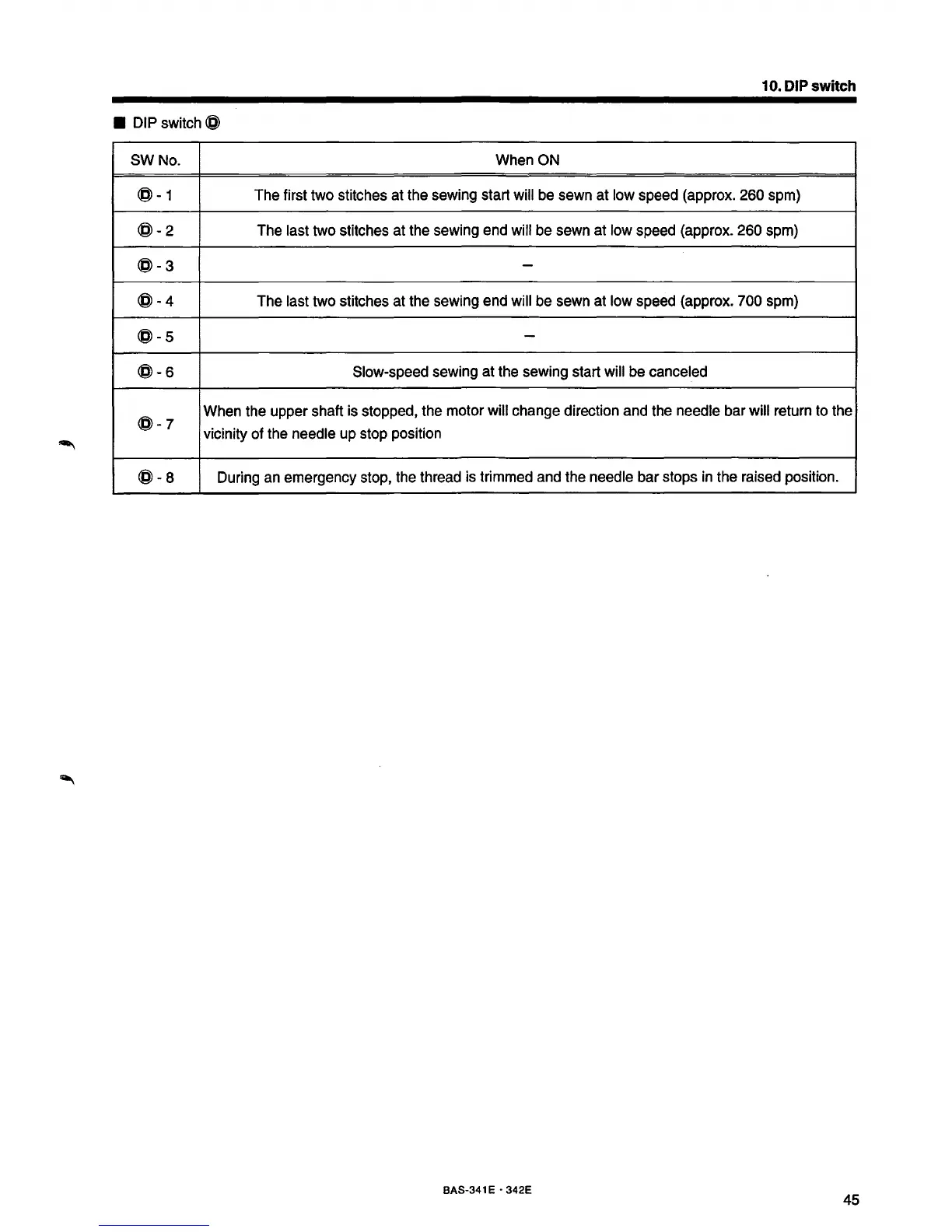

10. DIP switch
• DIP switch @
SWNo.
When ON
@-1
The first two stitches at the sewing start will be sewn at low speed (approx. 260 spm)
@-2
The last two stitches at the sewing end will be sewn at low speed (approx. 260 spm)
@-3
-
@-4
The last two stitches at the sewing end will be sewn at low speed (approx. 700 spm)
@-5 -
@-6
Slow-speed sewing at the sewing start will be canceled
@-7
When the upper shaft is stopped, the motor will change direction and the needle bar will return to the
vicinity
of the needle up stop position
@-8
During an emergency stop, the thread is trimmed and the needle bar stops in the raised position.
BAS-341 E • 342E
45
