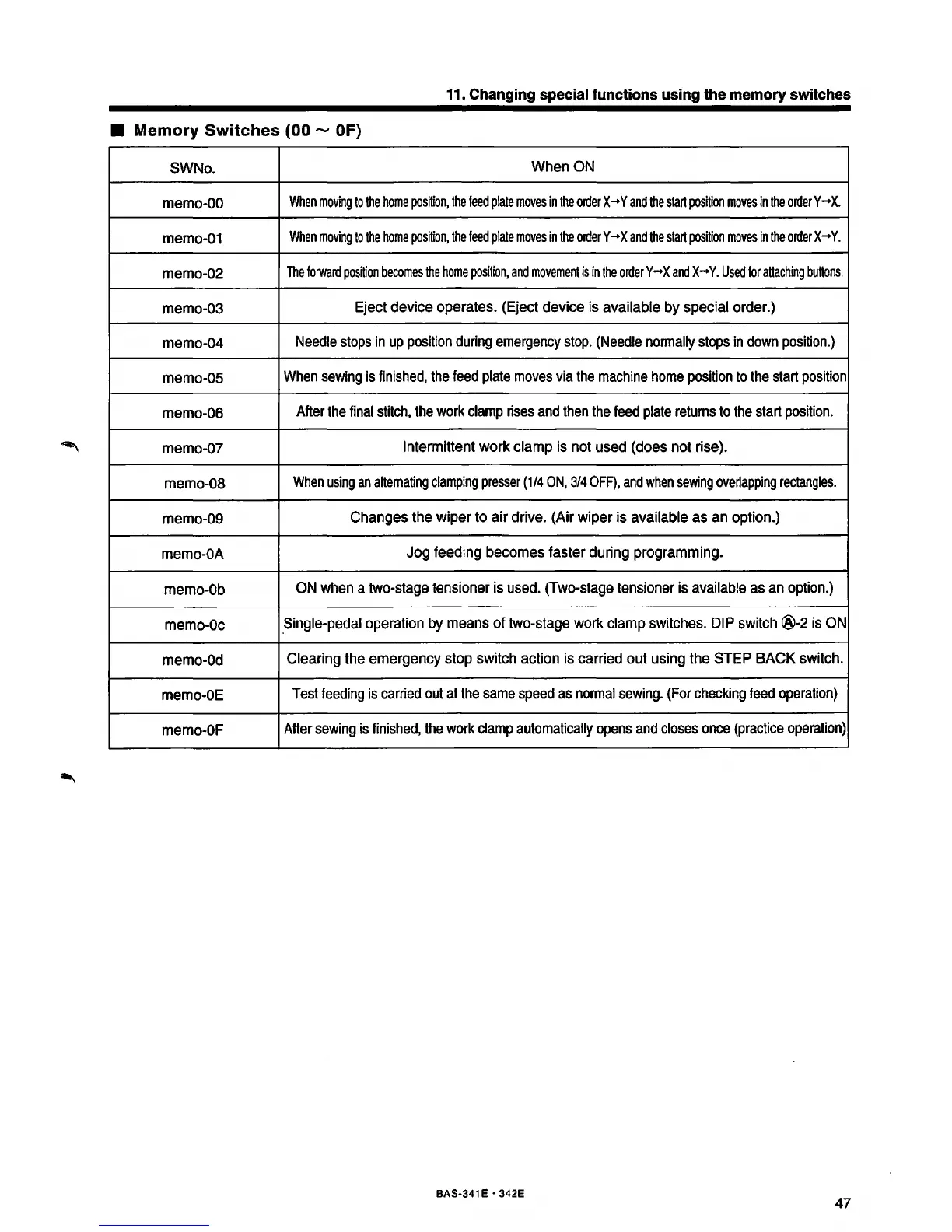

11. Changing special functions using the memory switches
• Memory Switches (00 ,....., OF)
SWNo.
When ON
memo-00
When moving to the home position, the feed plate moves in the order X-+ Y and the start posttion moves in the order Y-+ X.
memo-01
When moving to the home position, the feed plate moves in the order Y-+ X and the start position moves in the order X-+ Y.
memo-02
The forward position becomes the home position, and movement is in the order Y-+ X and X-+ Y. Used for aUaching buttons.
memo-03
Eject device operates. (Eject device is available by special order.)
memo-04
Needle stops in up position during emergency stop. (Needle normally stops in down position.)
memo-05
When sewing is finished, the feed plate moves via the machine home position to the start position
memo-06
After the final stitch, the work clamp rises and then the feed plate returns to the start position.
memo-07
Intermittent work clamp is not used (does not rise).
memo-08
When using an alternating clamping presser (1/4 ON, 3/4 OFF), and when sewing ove~apping rectangles.
memo-09
Changes the wiper to air drive. (Air wiper is available as an option.)
memo-OA
Jog feeding becomes faster during programming.
memo-Ob
ON when a two-stage tensioner is used. (Two-stage tensioner is available as an option.)
memo-Oc
.Single-pedal operation by means of two-stage work clamp switches. DIP switch ®-2 is ON
me mo-Od
Clearing the emergency stop switch action is carried out using the STEP BACK switch.
memo-OE
Test feeding is carried out at the same speed as normal sewing. (For checking feed operation)
memo-OF
After sewing is finished, the work clamp automatically opens and closes once (practice operation)
BAS-341 E • 342E
47
