5-10
Confidential
[2] Print worker switch (WSW) setting data (function code: 11)
<Function>
This function is used to print the setting items of the worker switches and the set details.
<Operating Procedure>
(1) Press the [▲] or [▼] key in the initial state of maintenance mode to display
"MAINTENANCE 11" on the LCD, and press the [OK] key.

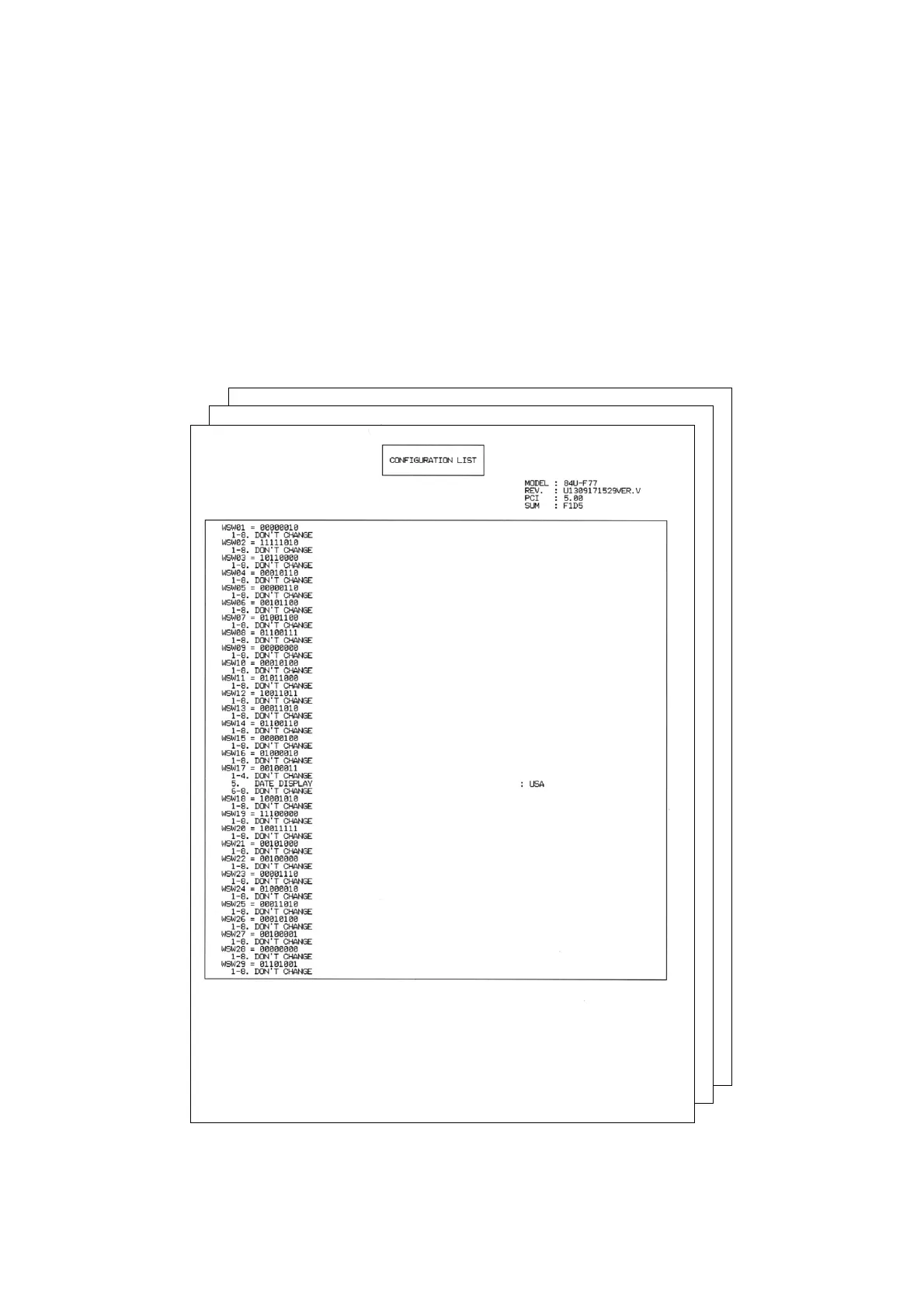

(2) "PRINTING" is displayed on the LCD, and printing the CONFIGURATION LIST (refer to
the figure below) starts.
(3) When printing is completed, the machine returns to the initial state of maintenance
mode.
Fig. 5-2
To Next Page
