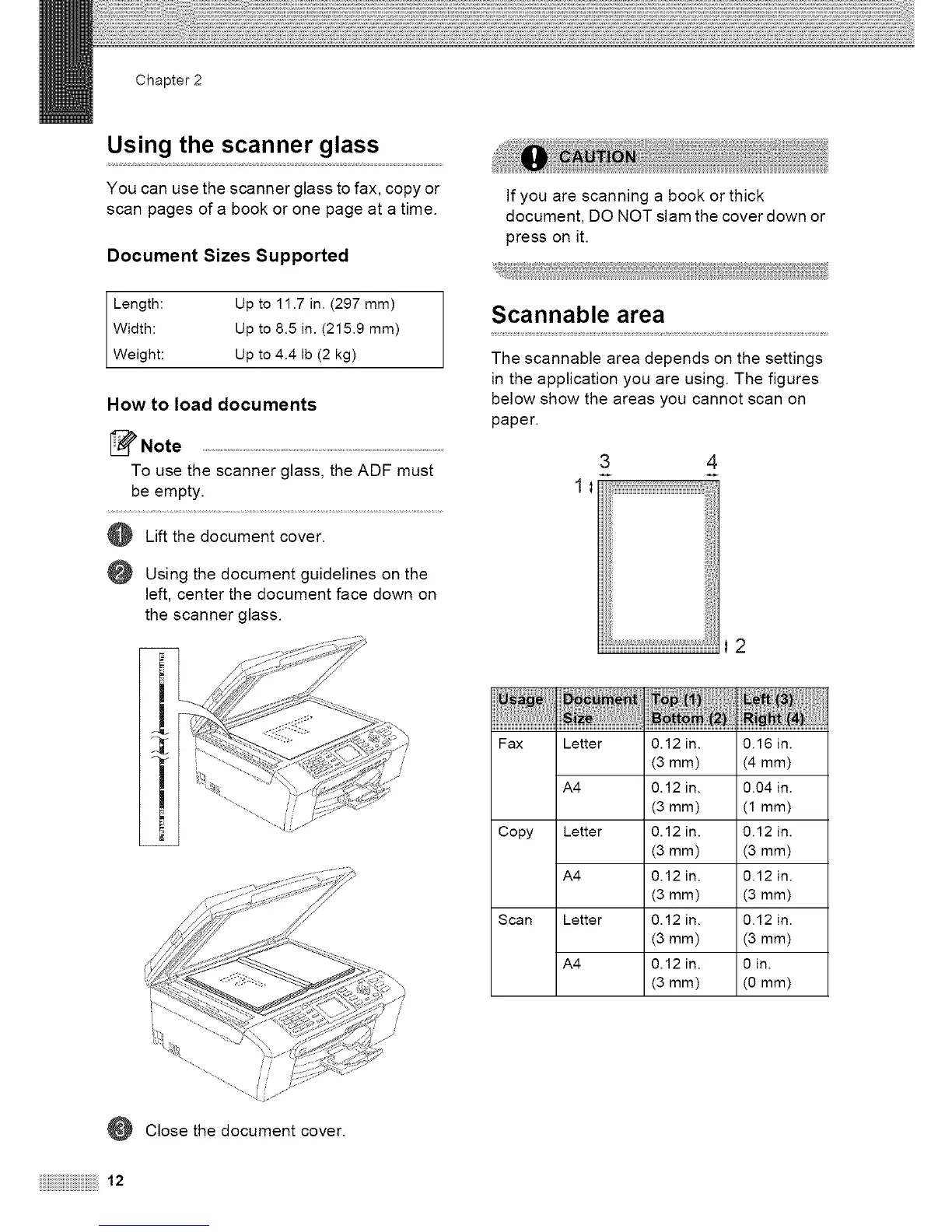

Using the scanner glass
You can use the scanner glass to fax, copy or
scan pages of a book or one page at a time.
Document Sizes Supported
Length:
Width:
Weight:
Up to 11.7 in. (297 mm)
Up to 8.5 in. (215.9 mm)
Up to 4.4 Ib (2 kg)
How to load documents
Note
To use the scanner glass, the ADF must
be empty.
@
@
Lift the document cover.
Using the document guidelines on the
left, center the document face down on
the scanner glass.
If you are scanning a book or thick
document, DO NOT slam the cover down or
press on it.
Scannable area
The scannable area depends on the settings
in the application you are using. The figures
below show the areas you cannot scan on
paper.
@
Close the document cover.
Fax Letter 0.12 in. 0.16 in.
(3 mm) (4 mm)
A4 0.12 in. 0.04 in.
(3 mm) (1 mm)
Copy Letter 0.12 in. 0.12 in.
(3 mm) (3 mm)
A4 0.12 in. 0.12 in.
(3 mm) (3 mm)
Scan Letter 0.12 in. 0.12 in.
(3 mm) (3 mm)
A4 0.12 in. 0 in.
(3 mm) (0 mm)
