Brother MFC-8370DN Service Manual

3-83
Confidential

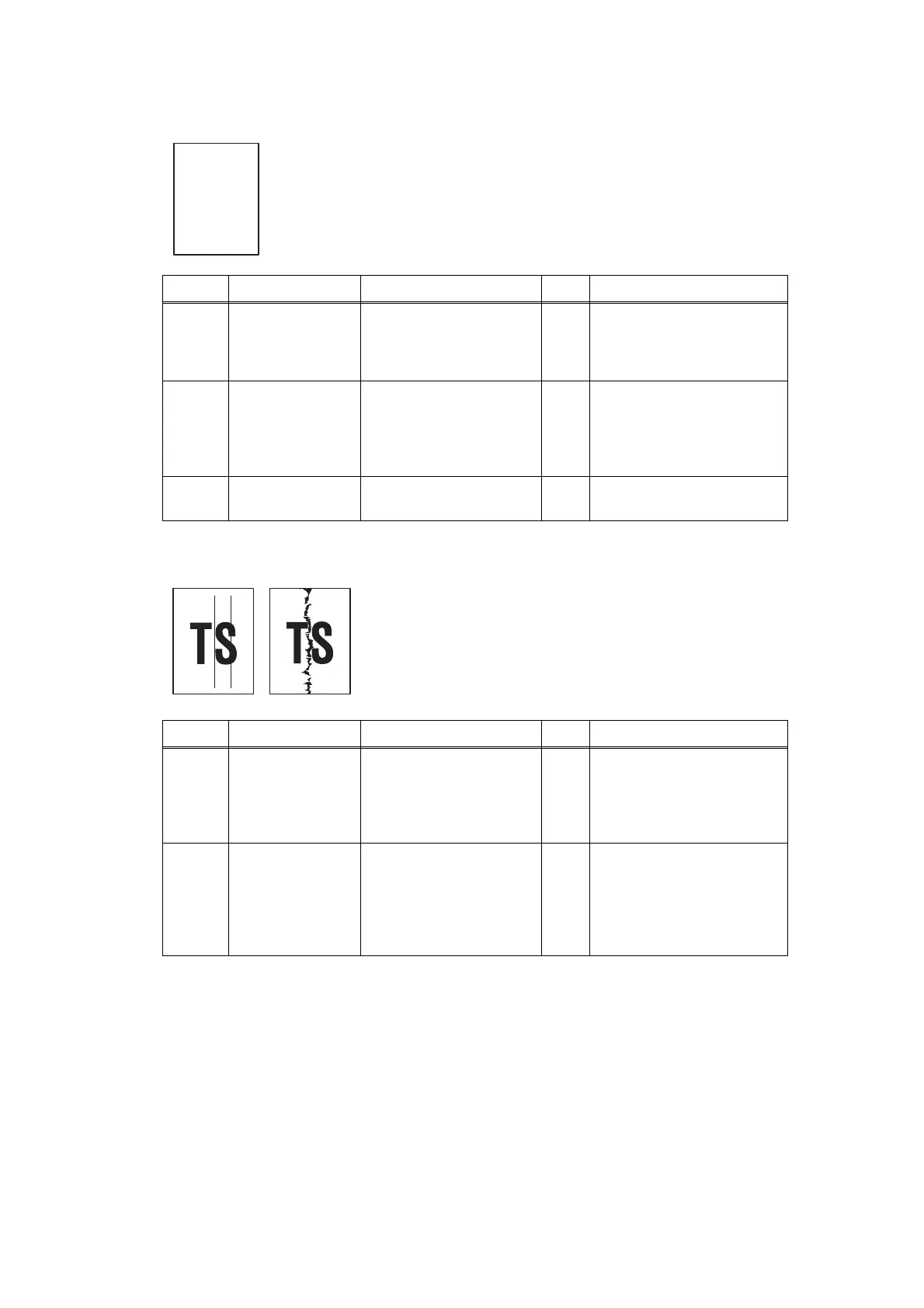

■ Completely blank
■ Vertical streaks
Step Cause Check Result Remedy
1
White level data
malfunction
Is the problem solved by
performing the
acquisition of white level
data. (Function code 55)
Yes
Perform the acquisition of
white level data. (Function
code 55)
2
Scanner module
failure
Is the problem solved by
replacing the CCD unit
(CCD model) or
document scanner unit.
(CIS model)
Yes
Replace the CCD module.
(CCD model)
Replace the document
scanner unit. (CIS model)
3
Main PCB failure Is the problem solved by
replacing the main PCB.
Yes
Replace the main PCB.
<User Check>
- Check if the ADF glass or document glass is not stained.
Step Cause Check
Result Remedy
1
Scanner module
failure
Is the problem solved by
replacing the CCD unit
(CCD model) or
document scanner unit.
(CIS model)
Yes
Replace the CCD module.
(CCD model)
Replace the document
scanner unit. (CIS model)
2
ADF or
document glass
failure
Is the problem solved by
replacing the scanner
top cover ASSY (CCD
model) or document
scanner unit. (CIS
model)
Yes
Replace the top cover
ASSY. (CCD model)
Replace the document
scanner unit. (CIS model)

Brother MFC-8370DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Input color depth	48 bit
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Product color	Grey, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Card reader integrated	-
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Scan
Power consumption (standby)	85 W
Power consumption (average operating)	680 W
Package weight	21100 g
Digital sender	No
Maximum duty cycle	- pages per month

Weight and Dimensions

Depth	443 mm
Width	390 mm
Height	442 mm
