(31) Remove the Hook of the Air duct from the frame. Slide the Air duct to the direction of
31b and remove the Air duct.

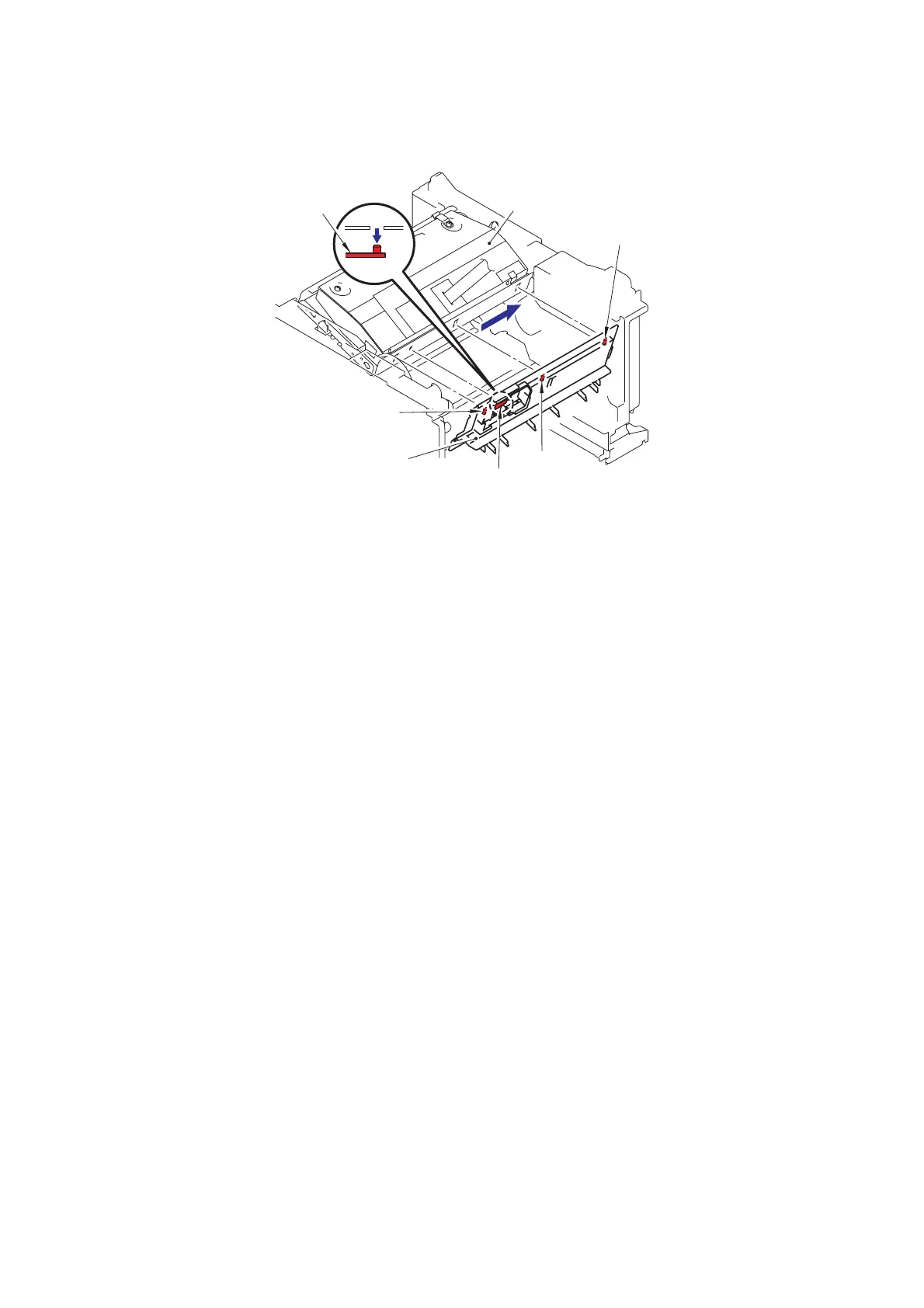

Fig. 4-21
Hook
Hook
Hook
Hook
Hook
Laser unit
Air duct
31b
31a
