Brother MFC-8370DN Service Manual

4-15
Confidential
(32) Remove the two Flat cables from the Main PCB.
(33) Remove the six cup S M3x6 Taptite screws.
(34) Remove the Protective film from the Flat cable.
(35) Pull out the two Flat cables from the Core.
(36) Remove the Laser unit.

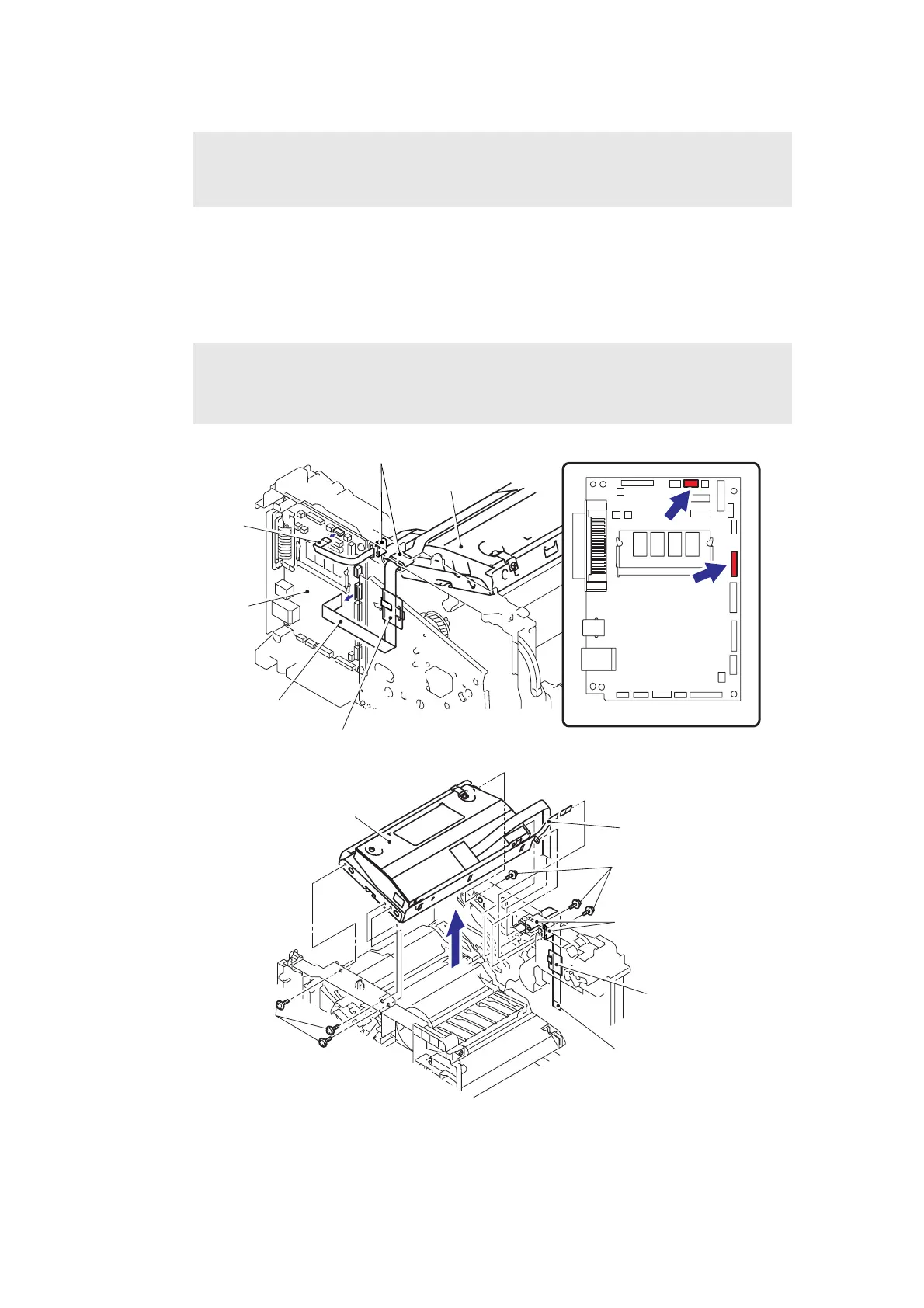

Fig. 4-22
Note :
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
Note :
• Be careful not to lose the Protective film attached on the flat cable.
• Do not touch the Laser scanner window directly.
Taptite cup S M3x6
Polygon motor
(Flat cable)
LD harness
(Flat cable)
Core
Protective film
Laser unit
Taptite cup S M3x6
Core
LD harness
(Flat cable)
Protective film
Main PCB
Main PCB
Polygon motor
(Flat cable)
Laser unit

Brother MFC-8370DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Input color depth	48 bit
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Product color	Grey, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Card reader integrated	-
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Scan
Power consumption (standby)	85 W
Power consumption (average operating)	680 W
Package weight	21100 g
Digital sender	No
Maximum duty cycle	- pages per month

Weight and Dimensions

Depth	443 mm
Width	390 mm
Height	442 mm
