(5) Remove the Left and Right Pull arms and Pull arm springs from the Pull arm guide.

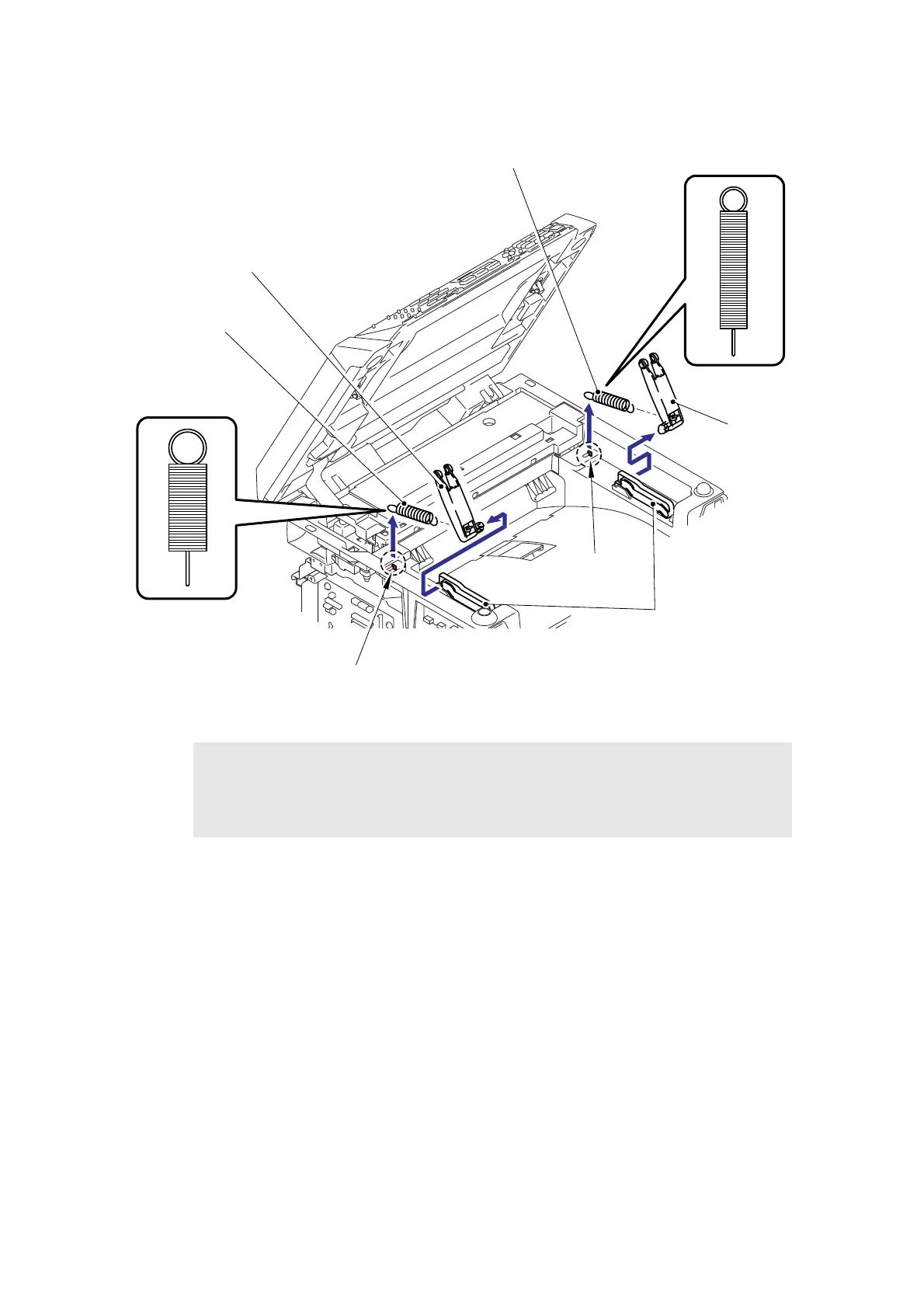

Fig. 5-163
Assembling Note:
• When assembling the Pull arm springs Left and Right, be sure to assemble each of
the Pull arm spring correctly. (Left is shorter and thicker and Right is longer and
thinner) See Fig. 5-163.
Hook
Pull arm L
Pull arm spring L
Hook
Pull arm R
Pull arm guide
Pull arm spring R
