Brother MFC-8370DN Service Manual

2-15
Confidential
 CIS model
(1) Set the document face down into the document chute. When the machine starts
duplex scanning. The ADF motor is rotated clockwise, the pick-up roller draws the
document, and the separation roller and separation pad send a sheet of the
document to the ADF one by one from the top page of the stacked documents.
(2) The document is passed through the paper feed roller 1 and is passed over the CCD
module so that the document is scanned. In duplex scanning, the document is sent
to the paper feed roller 3 by the switch back flap A, because the switch back flap A
goes up. Then the document is sent for the specified distance by the switch back
roller, and the switch back roller is turned counter so that the document is drawn
again.

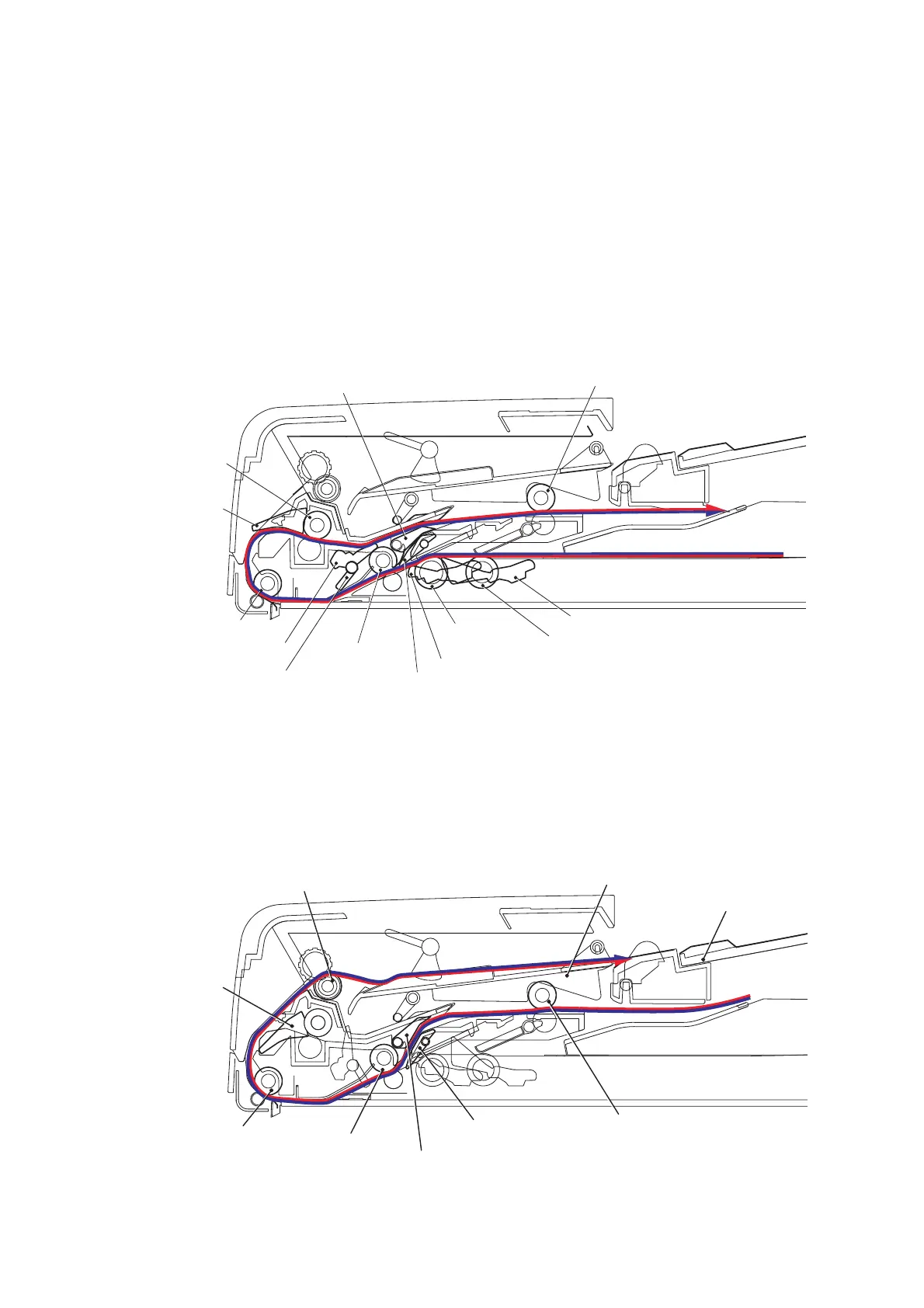

Fig. 2-16
(3) The drawn document is attached on the flap B and sent to the paper feed roller 1. At
this time, the opposite side of the document is faced-up so that the backside of the
document is scanned. The document is sent to the switch back roller again. The
document is sent to the eject roller , and then the document is sent to the document
eject tray, because the switch back flap A goes down.
Fig. 2-17
Document front actuator 1
Document front actuator 2
Feed roller
Separation roller
Front flap
Feed roller 1
Document rear actuator
Feed roller 2
Switch back actuator
Switch back flap A
Feed roller 3
Switch back flap B
Switch back roller
Ejection flap
Exit roller
Switch back flap B
Front flap
Switch back roller
Switch back flap A
Feed roller 1
Feed roller 2
Ejection tray

Brother MFC-8370DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Input color depth	48 bit
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Product color	Grey, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Card reader integrated	-
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Scan
Power consumption (standby)	85 W
Power consumption (average operating)	680 W
Package weight	21100 g
Digital sender	No
Maximum duty cycle	- pages per month

Weight and Dimensions

Depth	443 mm
Width	390 mm
Height	442 mm
