Brother MFC-J6730DW Service Manual

Confidential
2-68
■ Randam color

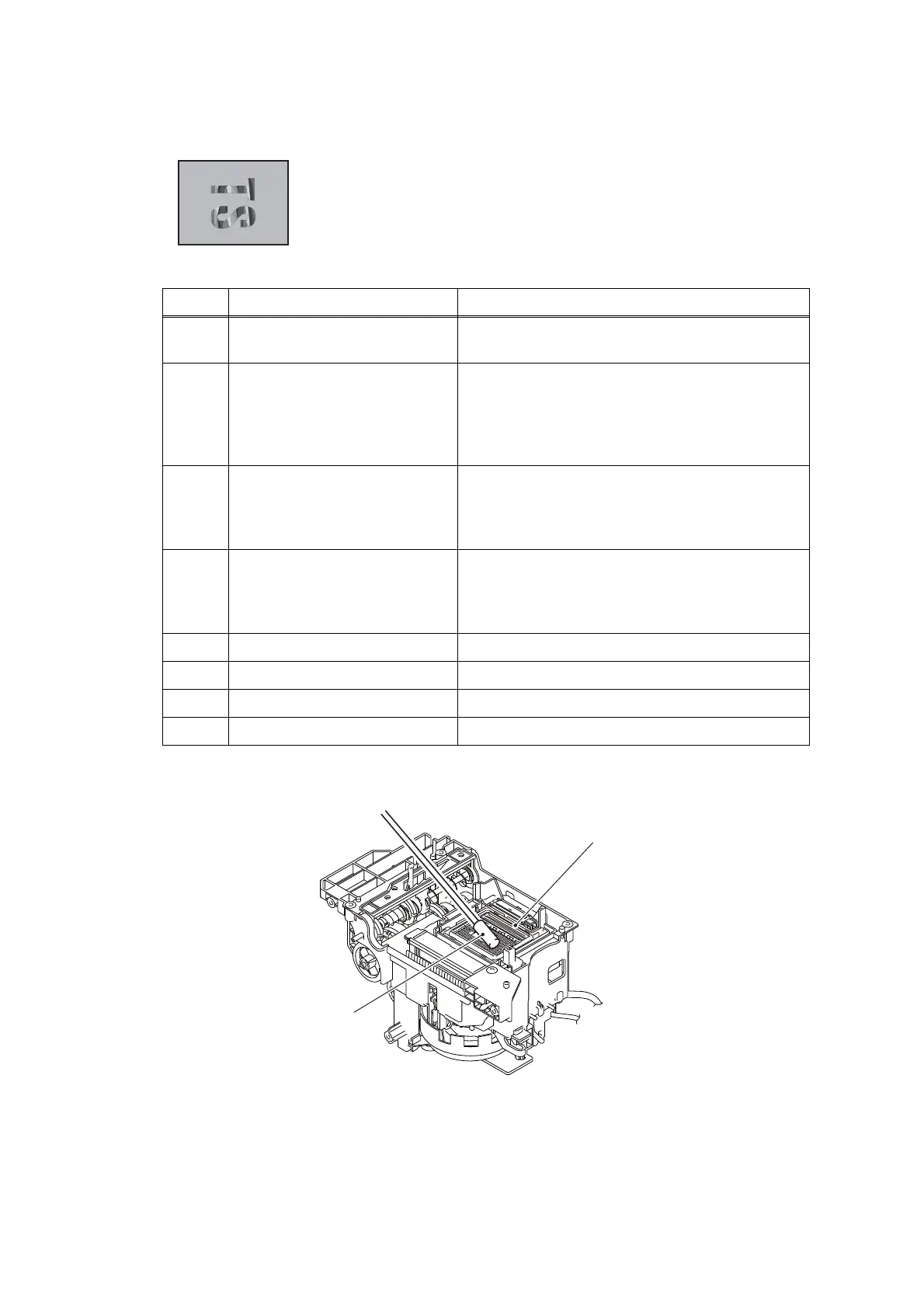

<Cleaning of the maintenance unit>
Fig. 2-11
< User Check >
- Check that ink cartridge is loaded correctly.
- Check that ink is refilled correctly.
- Carry out head cleaning.
Step Cause Solution
1 Maintenance unit stained Clean the maintenance unit.
(refer to the figure below.)
2 Wrong head property
information
Input the head property information.
(refer to Chapter 5, Section 1.3.24 "Updating of
Head Property Information and Backup/
Restoration of Head Calibration Data
(Maintenance mode 68)")
3 Head calibration uncompleted Write the head calibration data.
(refer to Chapter 5, Section 1.3.2 "Creating of
Head Calibration Data and Writing it into Flash
ROM (Maintenance mode 02)")
4 Non-discharge of ink from
head
Perform the recommended purge procedures.
(refer to the recommended procedures in
Chapter 5, Section 1.3.28 "Purge Operation
(Maintenance mode 76)".
5 Carriage PCB defective Replace the carriage PCB ASSY.
6 Head defective Replace the head/carriage unit.
7 Maintenance unit defective Replace the maintenance unit.
8 Main PCB defective Replace the main PCB.
Maintenance unit
Cleaner stick
