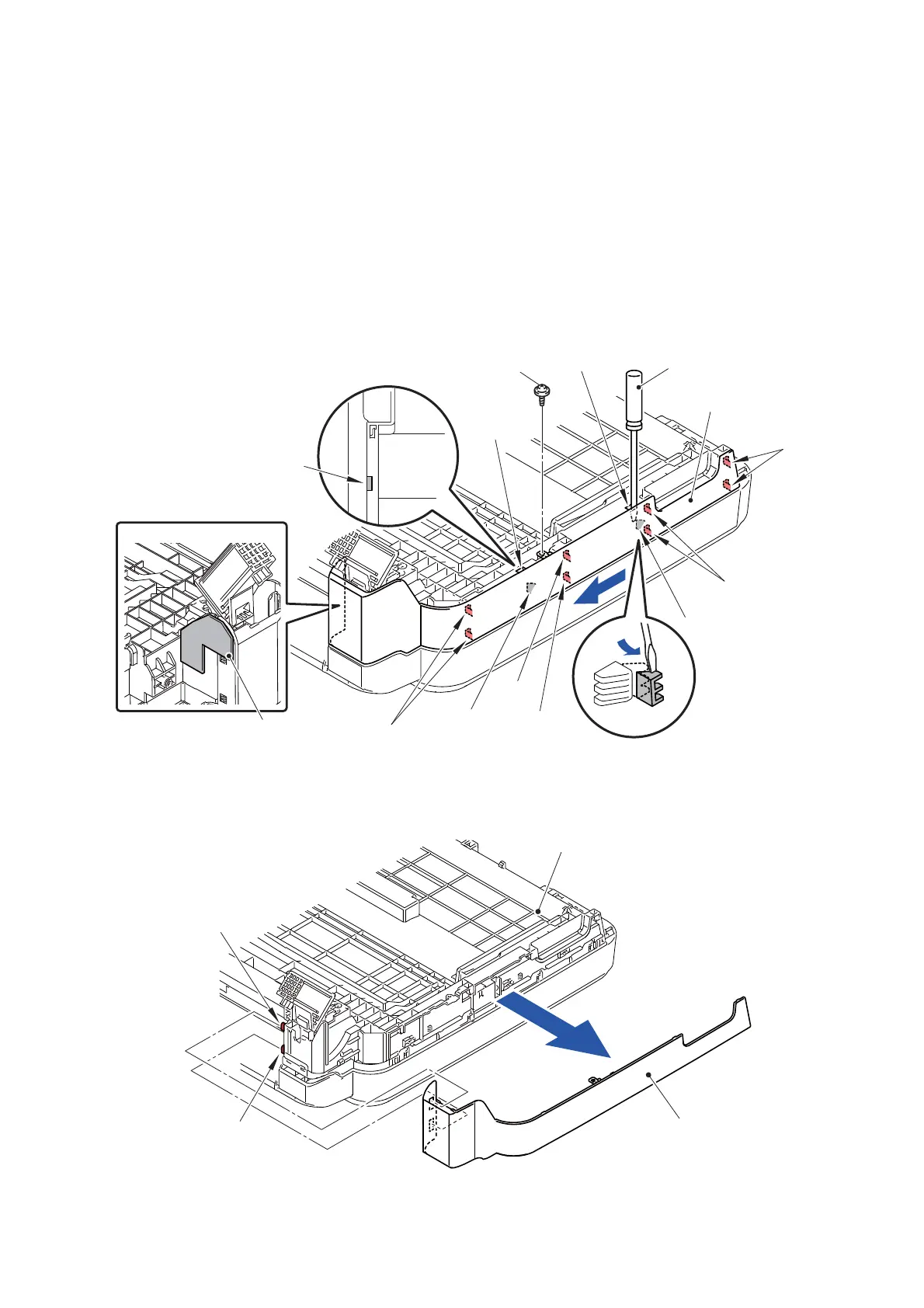

(7) Remove the two Pins on the left-side of the Control panel ASSY in the direction of
the arrow.
(8) Remove the two Pins on the right-side of the Control panel ASSY from the Lower
cover.
Fig. 3-66
(9) Remove the two screws (TAPTITE CUP B M3x8) and remove the Tilt hook from
the Control panel ASSY.
Fig. 3-67
Routing of harnesses: See “ Control panel ASSY”.
Pins
Pins
Control panel ASSY
Lower cover
8b
7b
8a
7a
TAPTITE CUP B M3x8
Control panel ASSY
Tilt hook
TAPTITE CUP B M3x8
