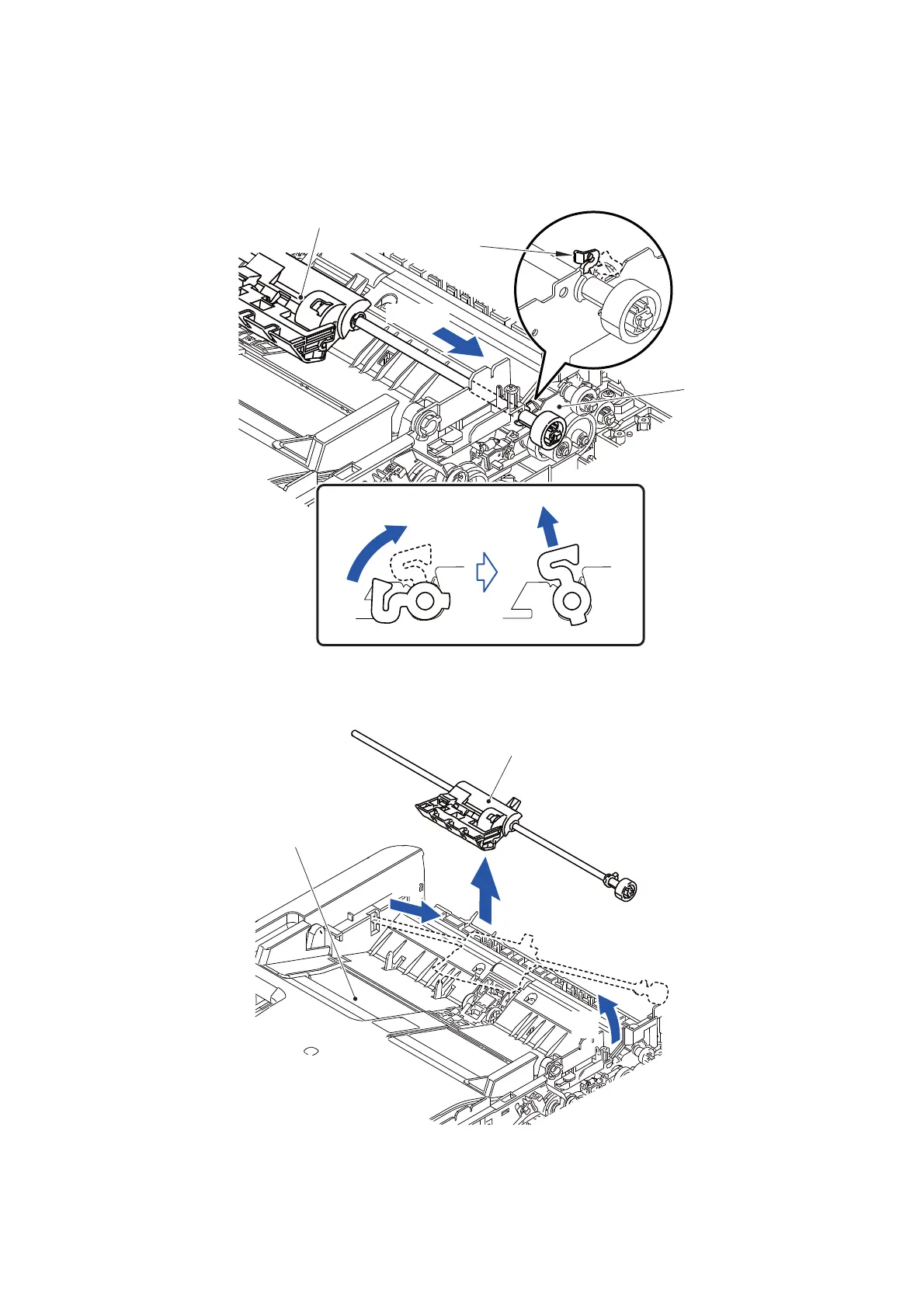

Brother MFC-J6730DW - Document Separation Roller ASSY

3-72
Confidential
9.30 LCD
(1) Release the three Hooks and remove the LCD holder from the Panel upper cover.
Fig. 3-73
(2) Remove the LCD and LCD frame sheet from the Panel upper cover.
Fig. 3-74
Hooks
LCD holder
Panel upper cover
1a
1b
LCD
LCD frame sheet
Panel upper cover
2b
2a
