Brother MFC-J6730DW - Ink Cartridge Cover; Upper Cover;< India Model Only > Upper Cover Dust Foam

3-89
Confidential
9.39 Ink Refill ASSY
(1) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB earth
frame R from the Modem PCB frame.
(2) Remove the two screws (TAPTITE CUP B M3x10) and remove the Modem PCB
frame from the Lower cover.

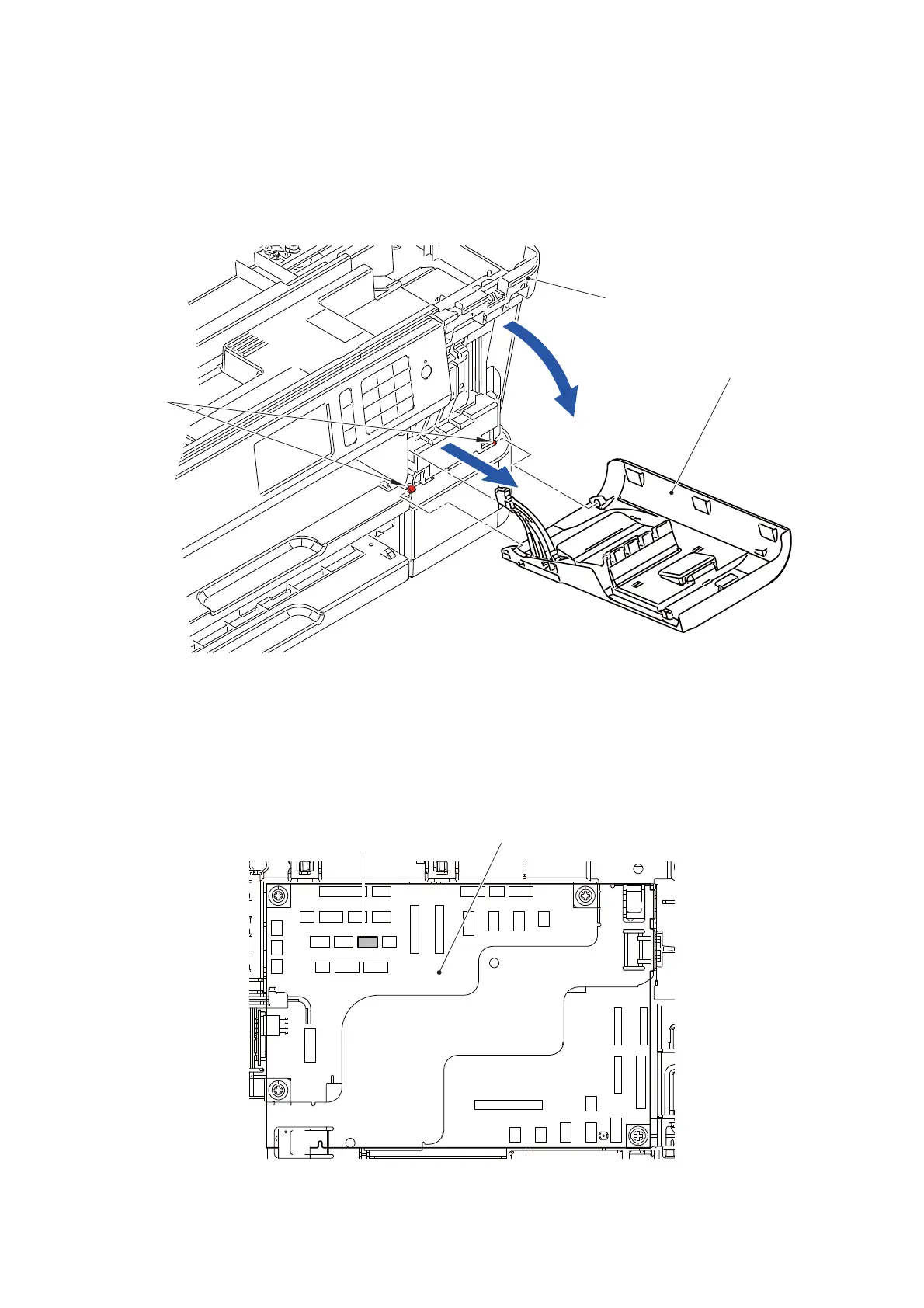

Fig. 3-103
(3) Remove the Ink supply tube from the Support wire.
(4) Remove the Ink supply tube from the Tube support plate.
(5) Release the wiring of the Ink refill ASSY.
(6) Remove the Ink refill ASSY from the Lower cover.
Fig. 3-104
Routing of harnesses: See “ Main PCB/Modem PCB”.
TAPTITE CUP B M3x10
SCREW CUP M3x6
Modem PCB frame
Lower cover
Main PCB earth frame R
2
1
Ink supply tube
Support wire
Tube support plate
Hooks
Ink refill ASSY
6
3
4
4
4
2
