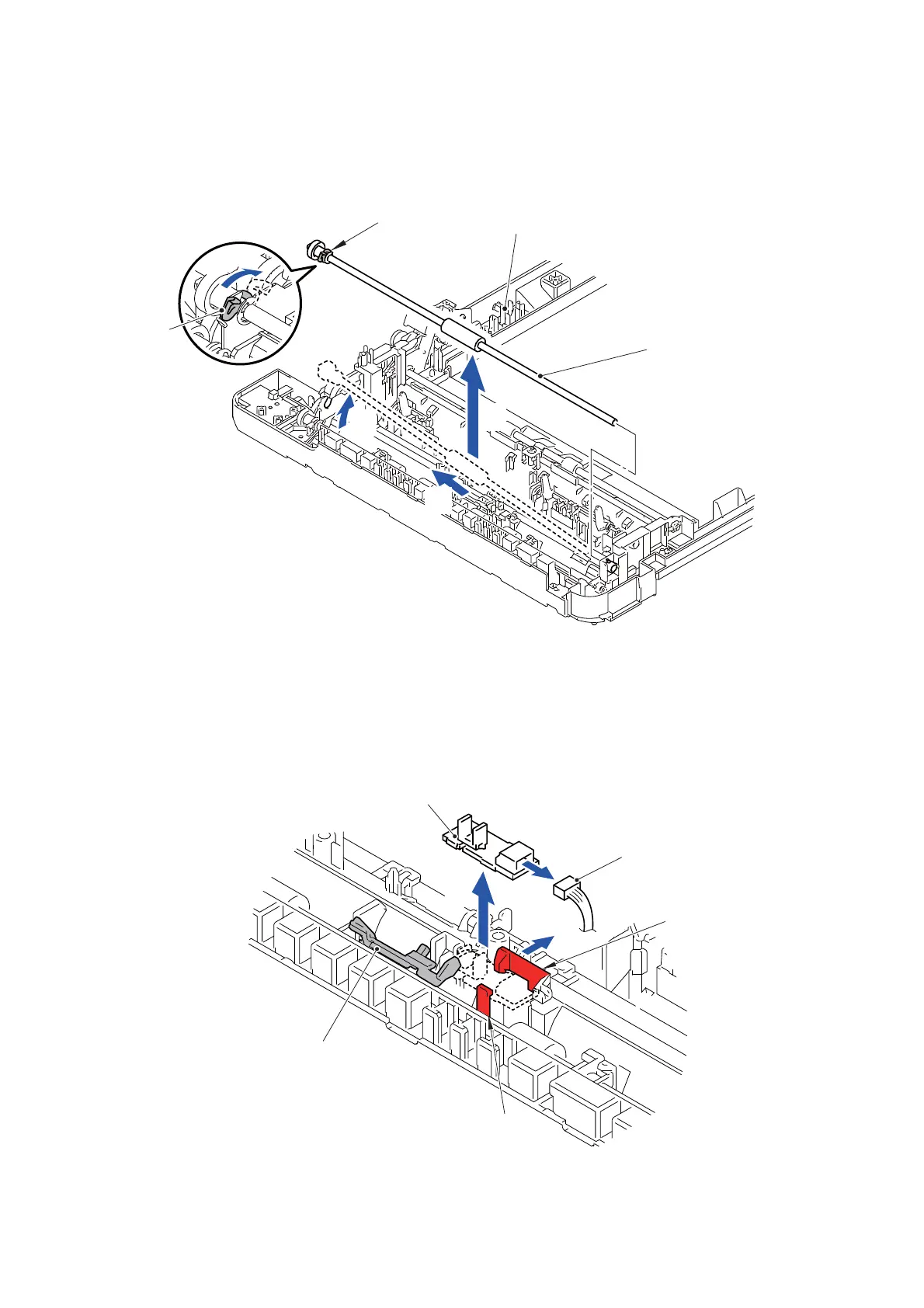

Brother MFC-J6730DW - Document Scanning Position Sensor PCB

3-79
Confidential
(4) Release the Lock of the connector and disconnect the Flat cable from the Carriage
PCB ASSY.
Fig. 3-87
(5) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB earth
frame from the Main PCB frame and Modem PCB frame.
Fig. 3-88
Head/carriage unit
Carriage PCB ASSY
Connector
Lock
Flat cable
SCREW CUP M3x6
Main PCB earth frame
Modem PCB frame
Main PCB frame
SCREW CUP M3x6
