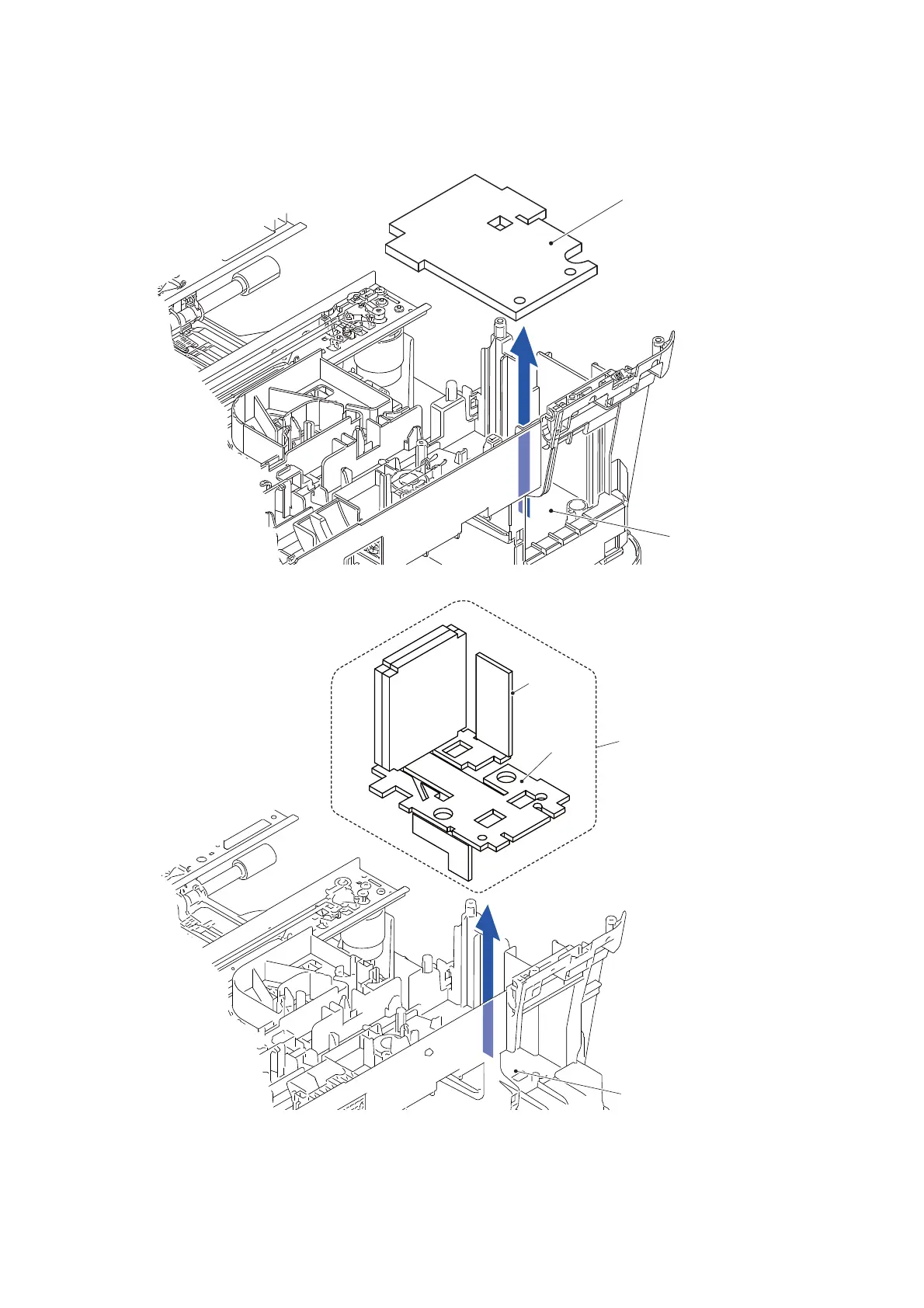

Brother MFC-J6730DW - Ink Absorber Felt (for Ink Refill ASSY)

3-121
Confidential
(5) Slide the PF release guide in the direction of the arrow 5a, and remove the
Pressure roller holder from the Frame base ASSY.
Note: When removing the Pressure roller holder, be careful not to lose any Spring.
Assembling Note: When assembling the Pressure roller holder, assemble it as fitting
the Springs to the Bosses.
Fig. 3-156
(6) While sliding the Registration sensor holder ASSY in the direction of the arrow 6a,
remove the Boss and then remove the Registration sensor holder ASSY from the
Frame base ASSY.
Fig. 3-157
Springs
Springs
Pressure roller holder
Frame base ASSY
PF release guide
5a
5b
Boss
Registration sensor holder ASSY
6a
Registration sensor harness
Frame base ASSY
6b
