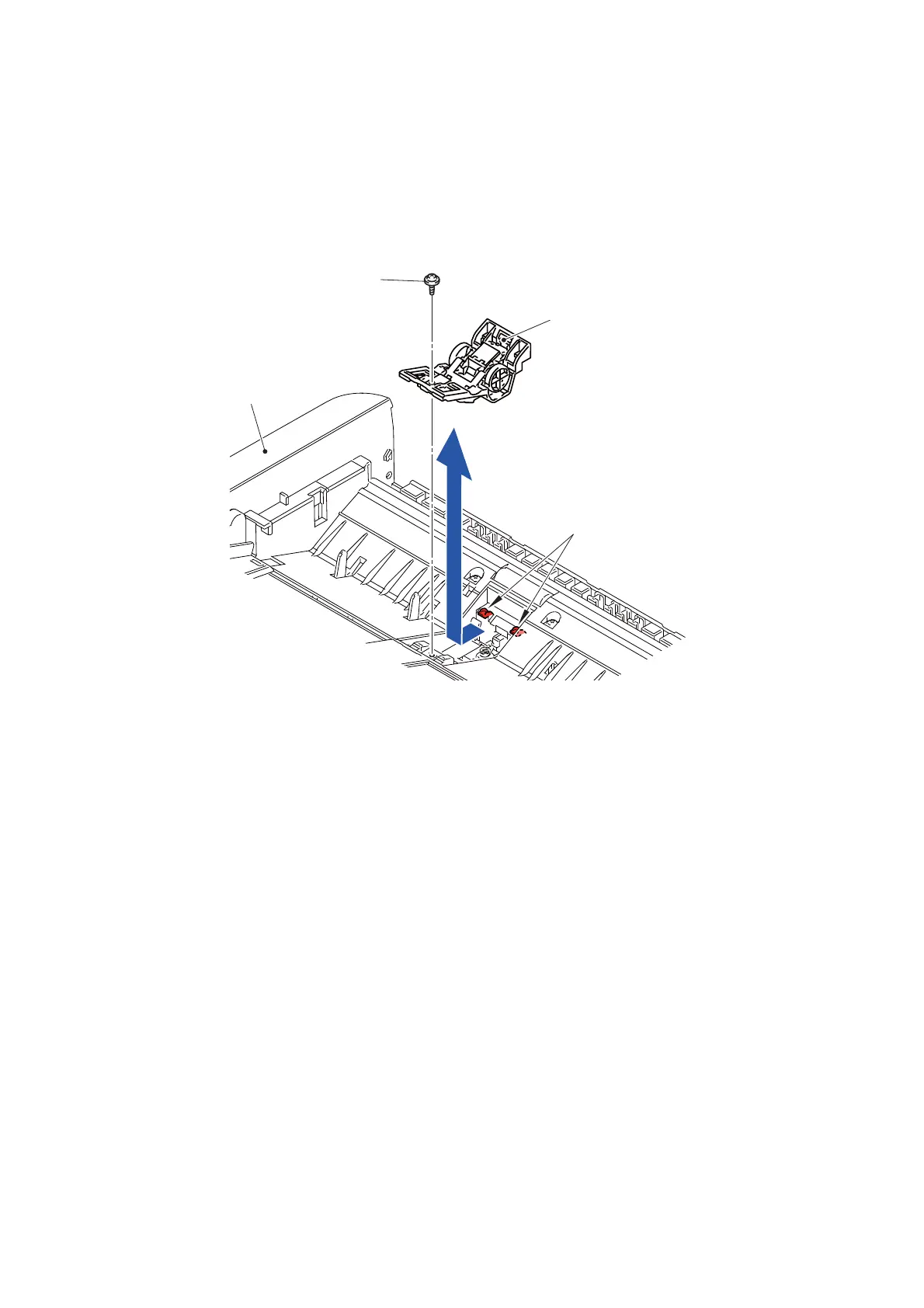

Brother MFC-J6730DW - ADF Separation Pad Holder ASSY

3-73
Confidential
9.31 Touch Panel
(1) Release the five Hooks and remove the Antistatic plate from the Key holder ASSY.
Fig. 3-75
(2) Remove the Touch panel plate from the Panel upper cover.
(3) Remove the Touch panel from the Panel upper cover.
Fig. 3-76
Hooks
Hooks
Hook
Antistatic plate
Key holder ASSY
2
3
Touch panel plate
Touch panel
Panel upper
Boss
Boss
cover
