Brother MFC-J6730DW - Document Scanner Side Cover L (MFC Model)

3-63
Confidential
9.24 Upper Cover

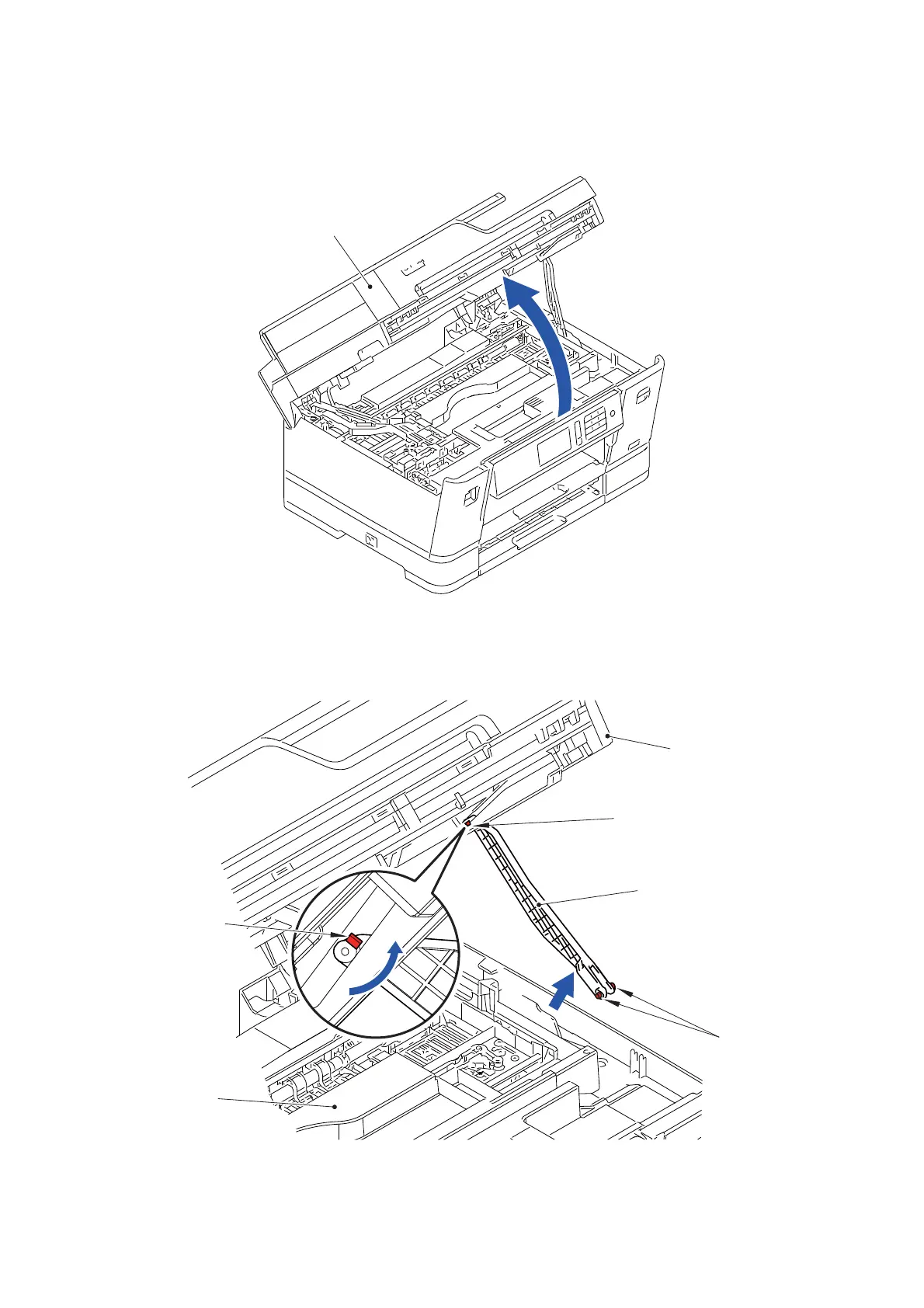

(1) Release the Hook A first, and then release the other four Hooks and remove the
Edge cover from the Upper cover.
Fig. 3-57
(2) Disconnect the Connector of the Document scanner sensor harness from the Main
PCB.
Fig. 3-58
Hooks
Hooks
Hook A
Edge cover
Upper cover
Main PCB
Document scanner sensor harness
