(3) Remove the six screws (TAPTITE BIND B M4x12) and remove the Upper cover
from the Lower cover.

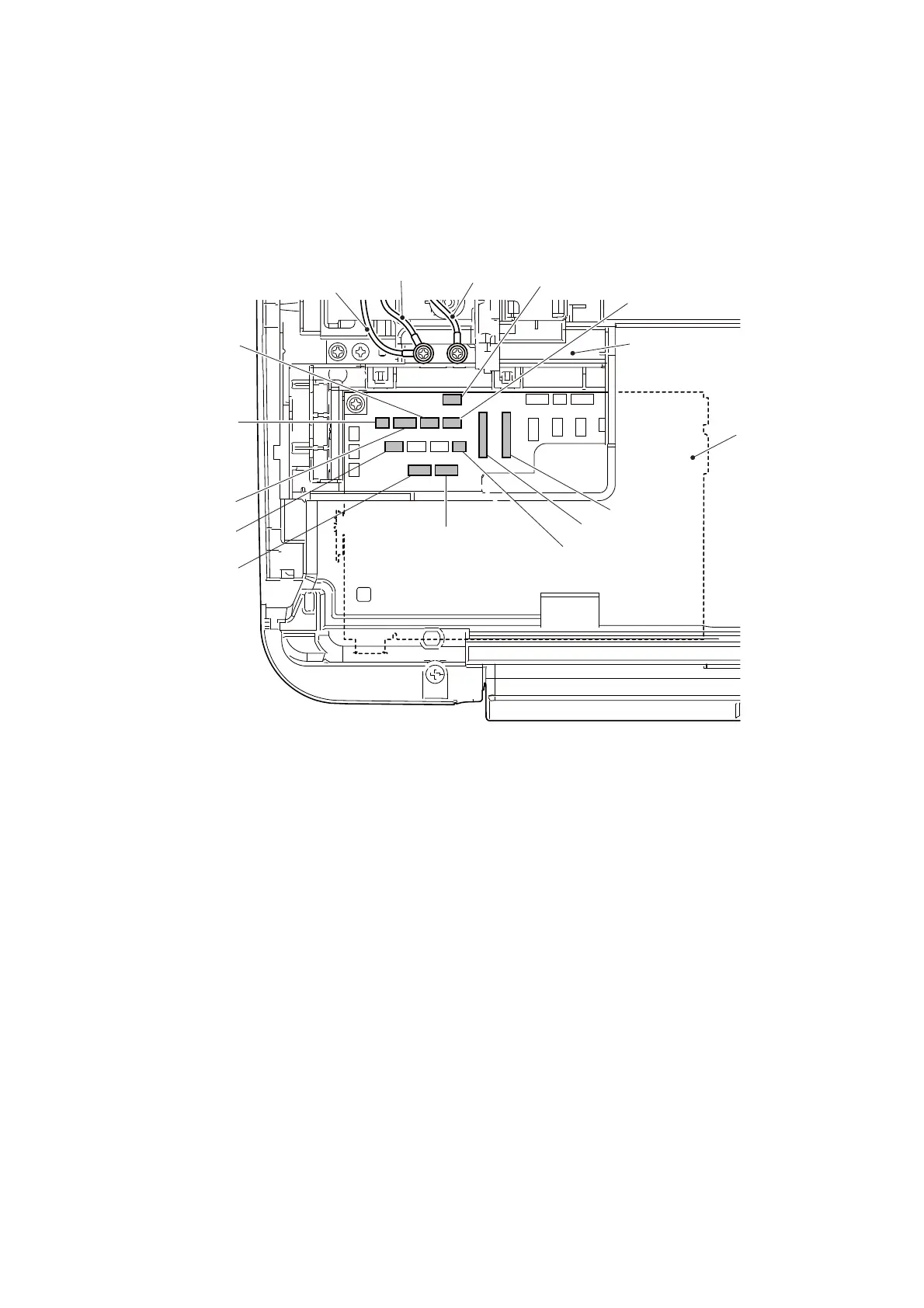

Fig. 3-59
TAPTITE BIND B
Upper cover
Lower cover
M4x12
TAPTITE BIND B M4x12
TAPTITE BIND B
M4x12
TAPTITE BIND B
M4x12
TAPTITE BIND B
M4x12
TAPTITE BIND B
M4x12
TAPTITE BIND B M4x12
Upper cover
<Top view>
