3-24
Confidential

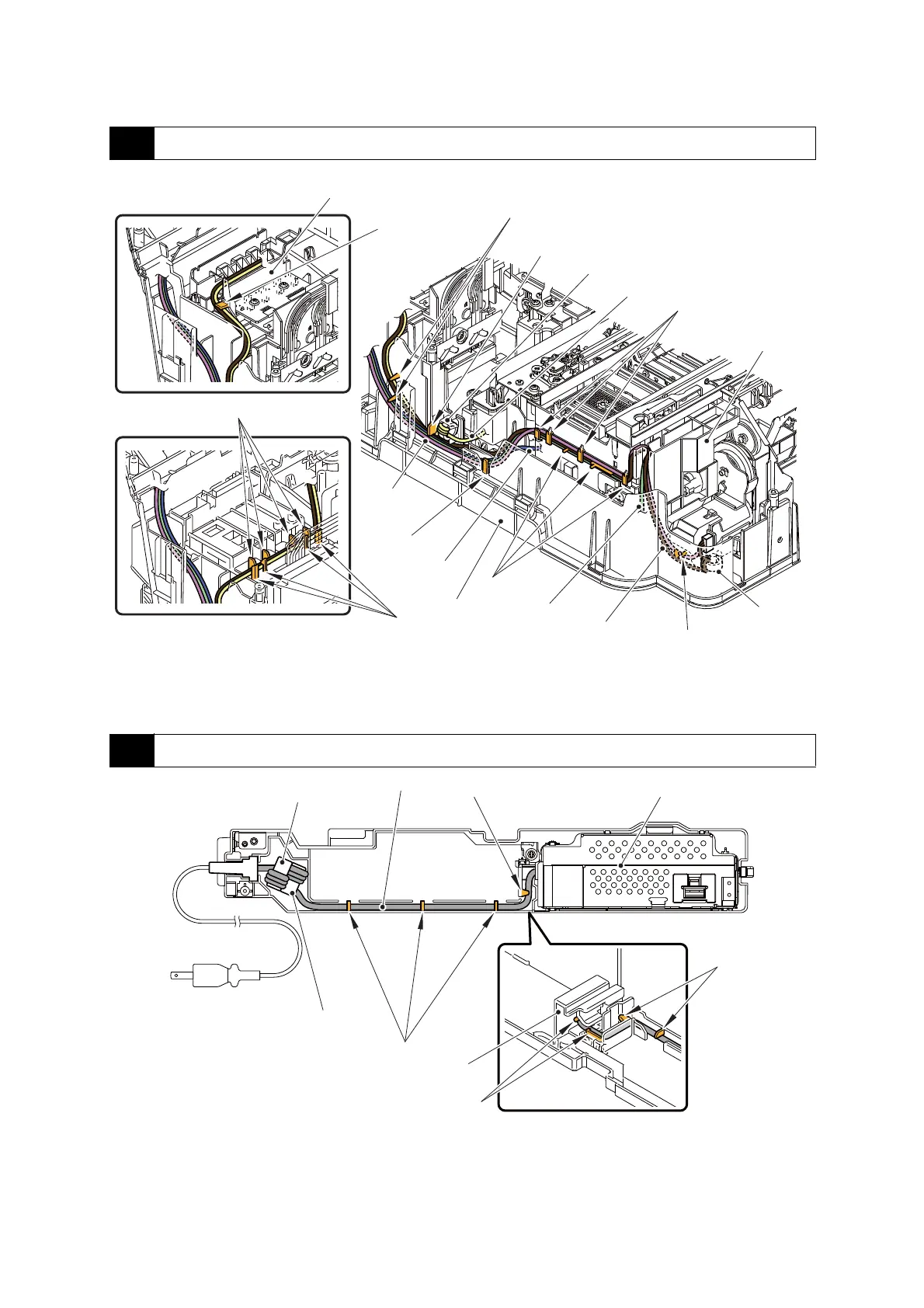

11 Lower cover R
12 Power supply PCB ASSY
Cable guide
Cable guide
Ferrite core
Maintenance unit
Ferrite core
Cable guide
Cable guide
Cable guide
Cable guide
ASF motor
Lower cover R
Ink refill ASSY
ASF encoder
Carriage motor harness
Maintenance
Cap cam
sensor harness
harness
Cable guide
Cable guide
Cable guide
cam harness
< Ink tank model >
harness
< Ink cartridge model >
Cable guide
Cable guide
Ferrite core
Ferrite core
Lower power supply frame
AC cord ASSY
Cable guide
PS insulator
Cable guide
