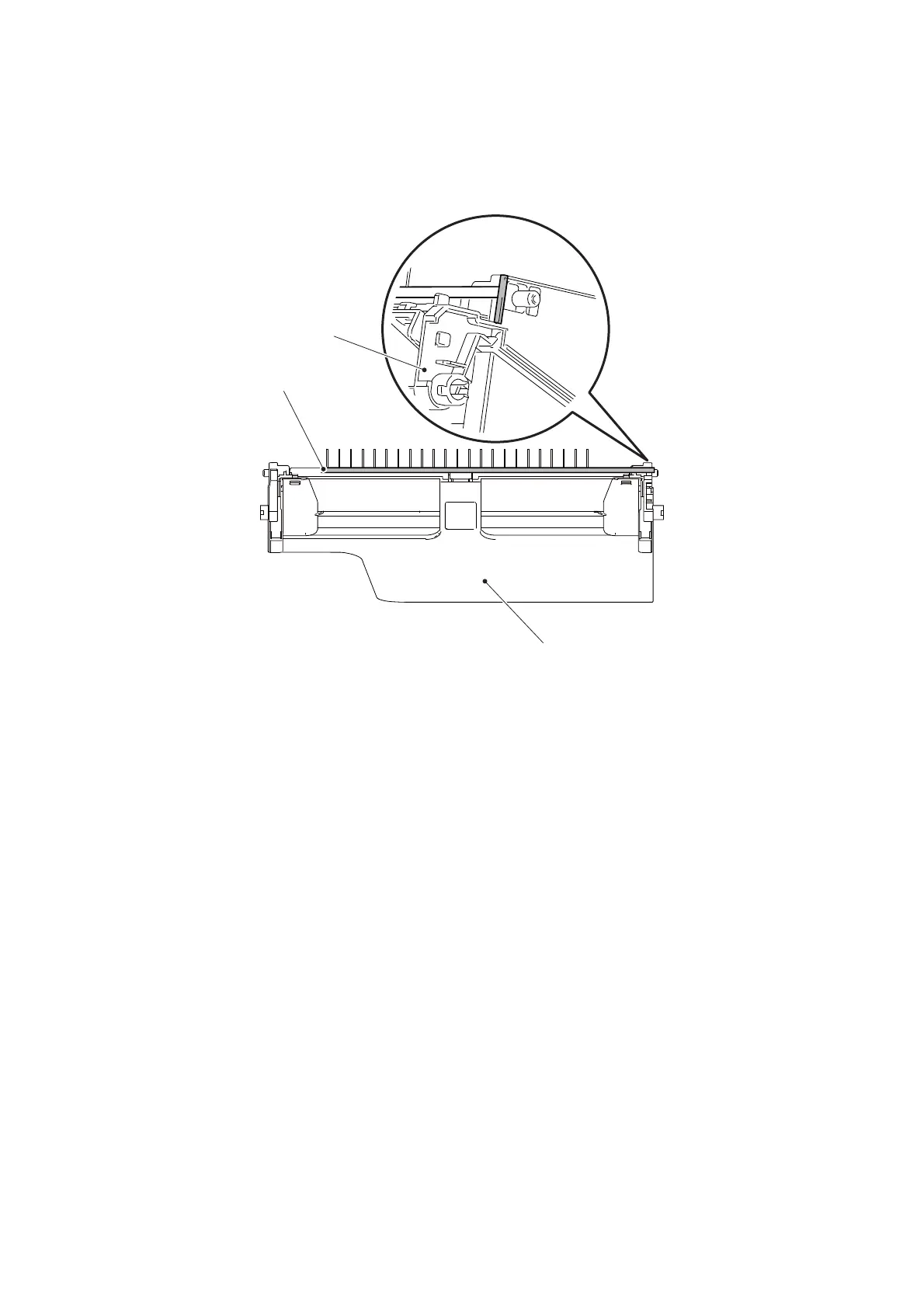

(3) Release all the wiring attached to the Main PCB harness hold L.
(4) Release the three Hooks and remove the Main PCB harness hold L from the
Lower cover.
Fig. 3-79
(5) Remove the Wireless LAN PCB from the Connector (CN15) of the Main PCB.
Fig. 3-80
Routing of harnesses: See “ Main PCB”, “ Main PCB/Modem PCB”.
Main PCB harness hold L
Hooks
Hook
Lower cover
Wireless LAN
PCB
CN15
Main PCB
