Brother MFC-J6730DW - Page 200

3-77
Confidential
9.34 Modem PCB

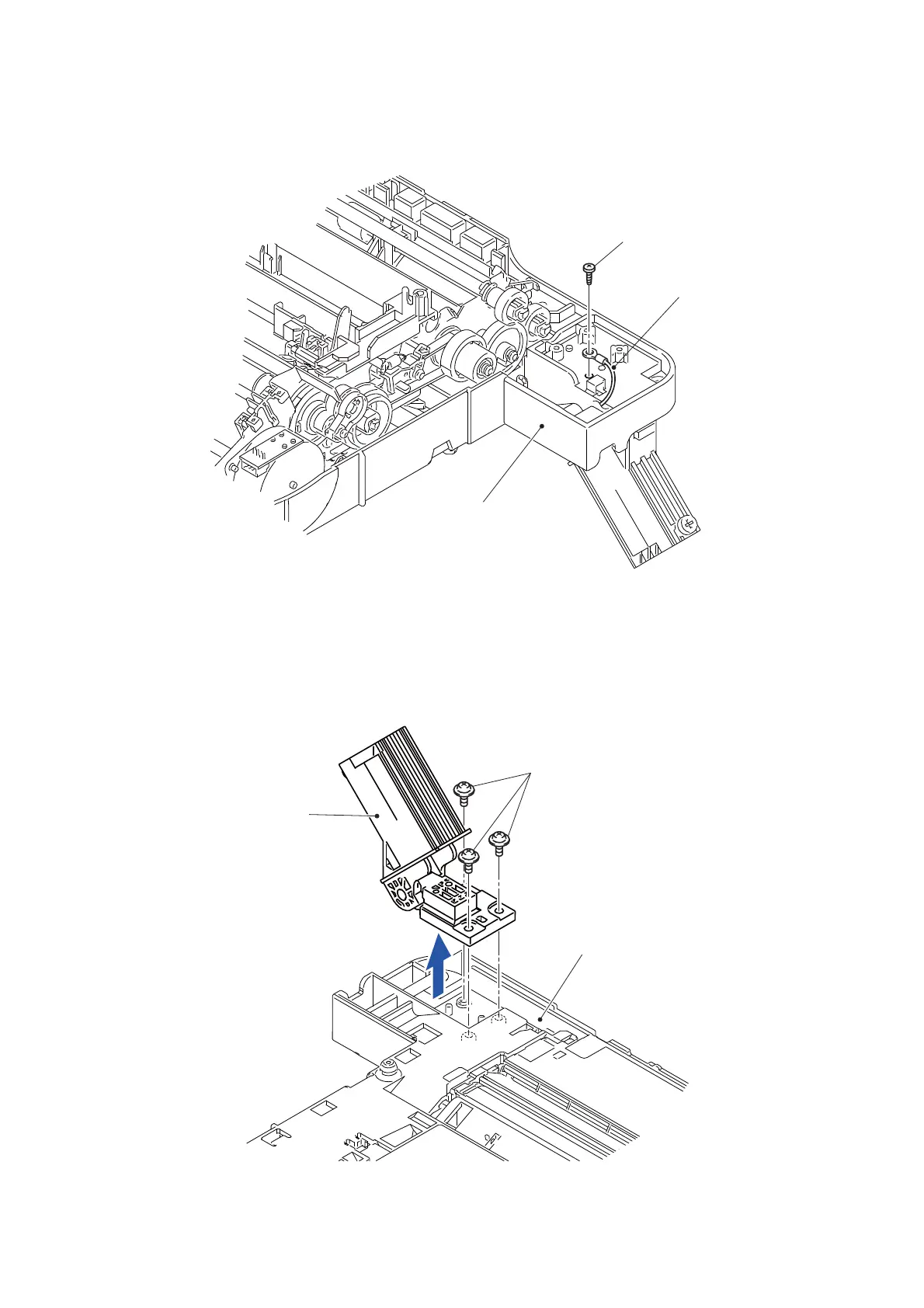

(1) Remove the screw (SCREW CUP M3x6) and remove the Upper modem frame
from the Modem PCB.
Fig. 3-83
(2) Release the wiring of the flat cable of the Modem PCB.
(3) Remove the screw (SCREW CUP M3x6) and remove the Modem PCB from the
Modem PCB frame.
Fig. 3-84
Routing of harnesses: See “ Main PCB/Modem PCB”.
SCREW CUP M3x6
Upper modem frame
Modem PCB
SCREW CUP M3x6
Modem PCB
Modem PCB frame
2
