3-82
Confidential
9.36 Head Joint Rubber
(1) Remove the Head joint spring from the Head/carriage unit.
Note: It can be easily removed if you press the section “A” by inserting a thin
screwdriver, etc. from the spring hole.

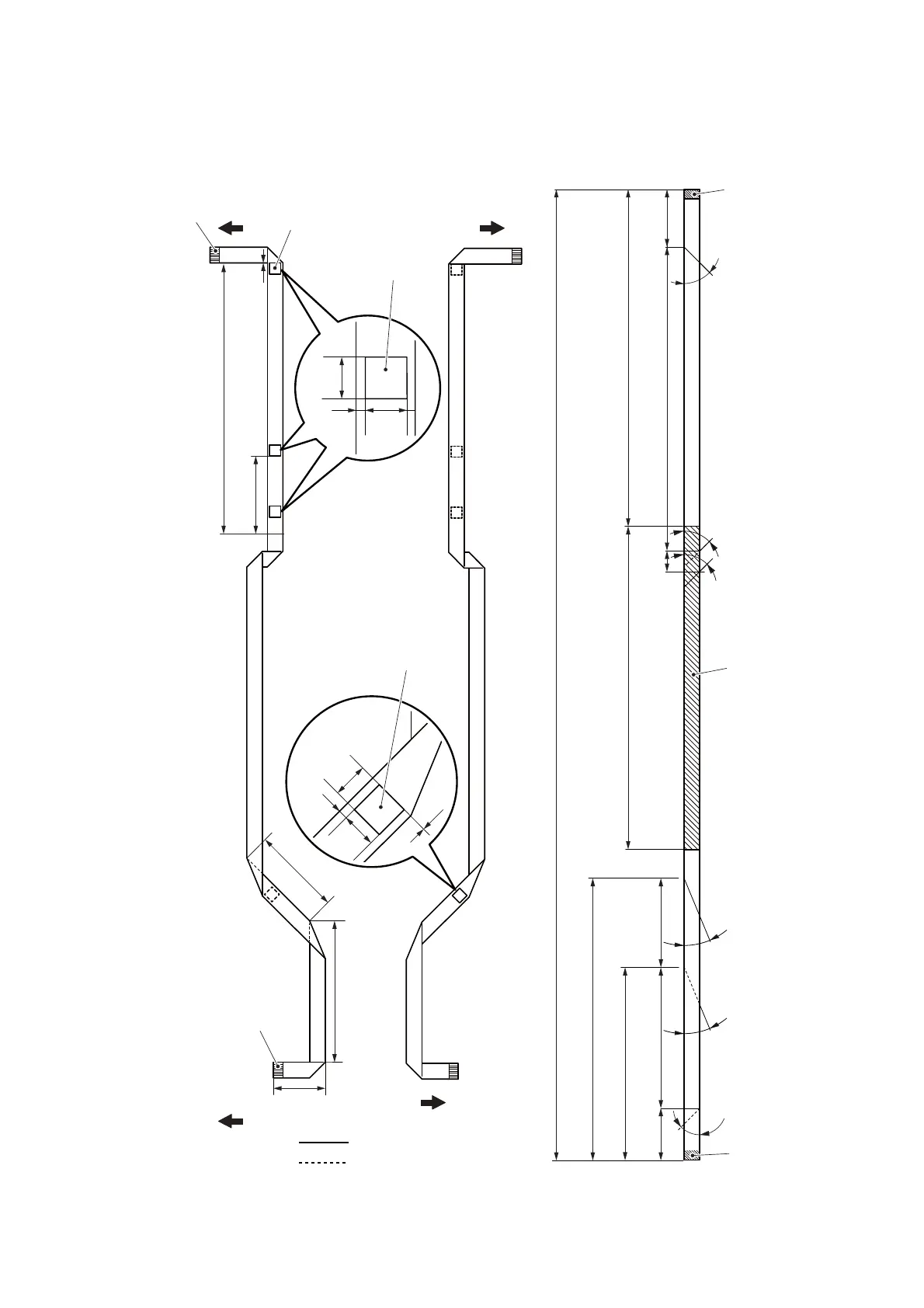

Fig. 3-93
Head/carriage unit
Head joint spring
Head joint spring
Head/
carriage unit
Head joint spring
Screwdriver
“A”
