3-94
Confidential
(6) Release the wiring of the switchback sensor harness.

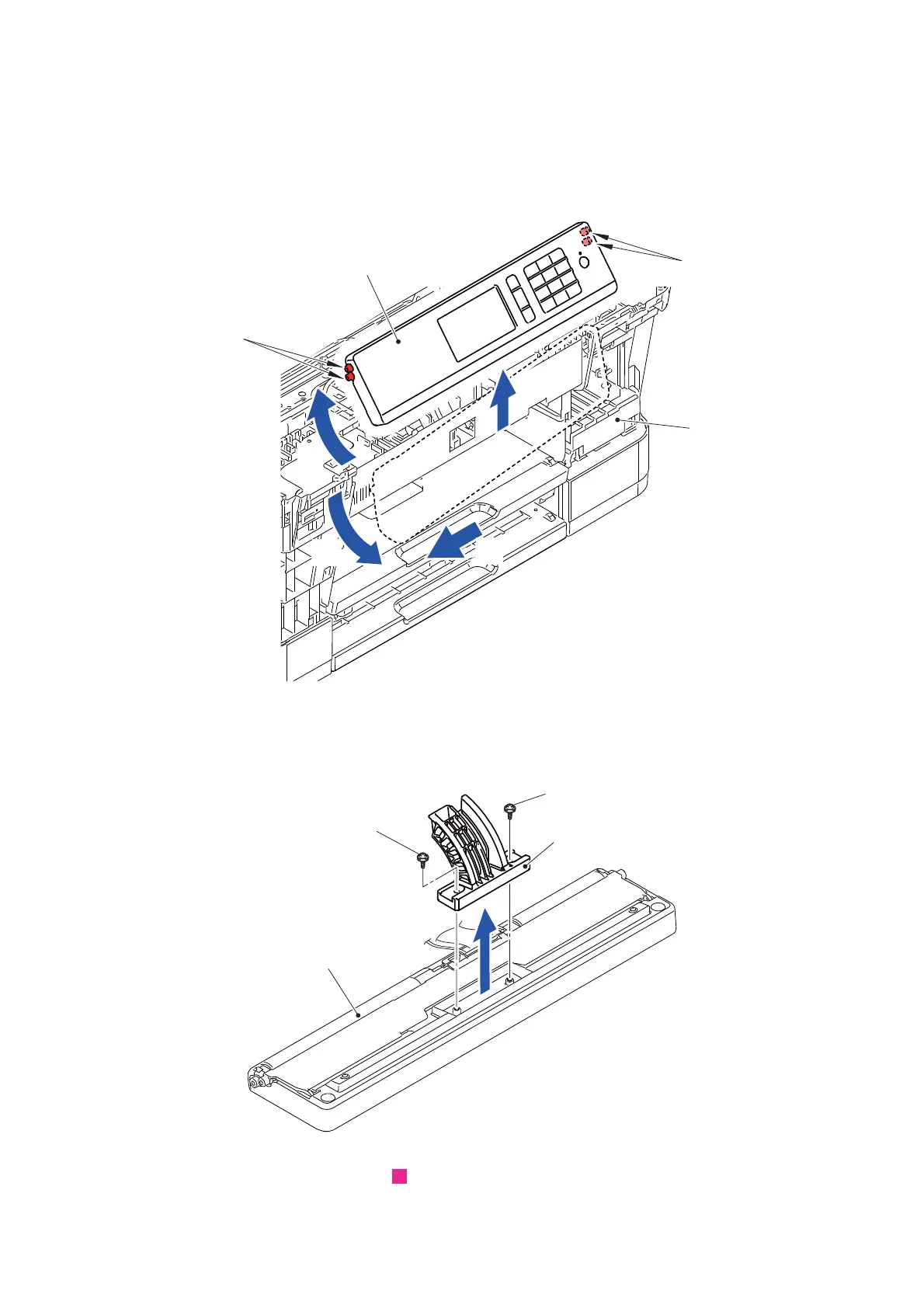

(7) Release the two Hooks and remove the Switchback sensor PCB from the Main
body.
Fig. 3-111
Routing of harnesses: See “ Lower cover L”, “ Switchback sensor PCB”.
Hooks
Switchback
Switchback sensor PCB
sensor PCB
Hooks
Main body
