3-110
Confidential
9.53 Paper Feed Motor
(1) Remove the three screws (SCREW BIND M3x6) from the CR guide rail.
(2) Remove the two screws (TAPTITE CUP B M3x10) from the CR guide rail.
Assembling Note: When tightening the two screws (TAPTITE CUP B M3x10), tighten
them in the order shown in the figure.
(3) Remove the two CR guide rail springs.
(4) Remove the CR guide rail from the Main body.

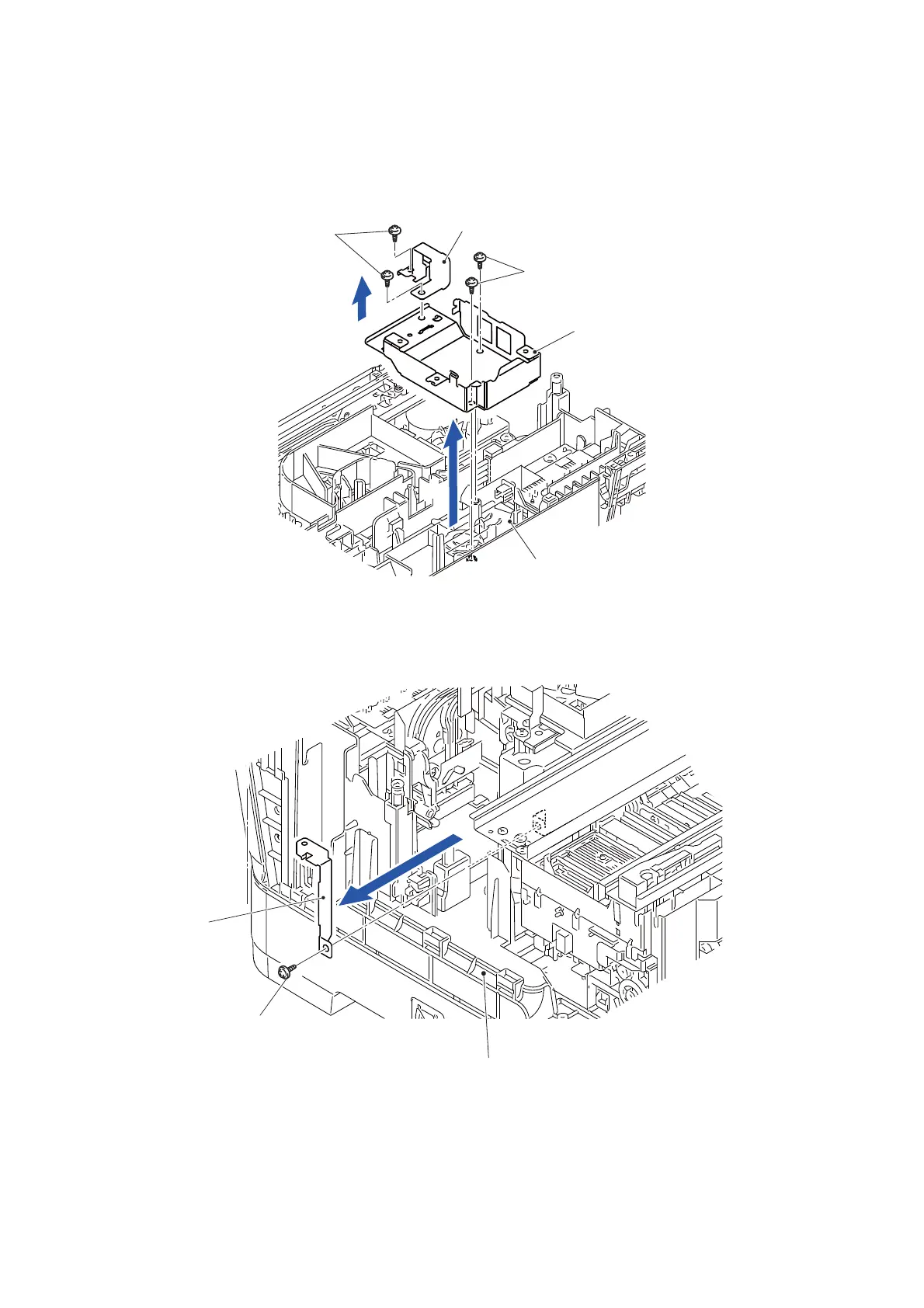

Fig. 3-136
Note: Do not place the removed CR guide rail with the Recording paper holder down.
Fig. 3-137
TAPTITE CUP B M3x10
CR guide rail spring
SCREW BIND M3x6
CR guide rail
SCREW BIND M3x6
Maintenance unit
Main body
1
2
CR guide rail spring
SCREW BIND M3x6
TAPTITE CUP B M3x10
CR guide rail
CR guide rail
Recording paper holder
Recording paper holder
Wrong
Correct
