Brother MFC-J6730DW Service Manual

3-128
Confidential
(4) Remove the screw (SCREW PAN (S/P WASHER) M3.5x6) and remove the AC
cord FG wire. (Case of 200 V)
Assembling Note: After connecting the AC cord FG wire, be sure to check that there
is no looseness of the wire.
(5) Remove the Power cord and two Ferrite cores from the Enclosure base.
Assembling Note: When handling the Power cord, be sure to check the sheath is not
damaged.
(6) < Made-in-Philippines machine only >
Remove the Protect holder L/R from the Power supply unit.
(7) Remove the three screws (SCREW CUP M3x6) and remove the Power supply
PCB ASSY from the Power supply unit.
Assembling Note: Two insulation sheets must be interleaved without damage
between the Power supply PCB ASSY and Power supply unit.
(8) Disconnect the Power supply harness from the Power supply PCB ASSY.

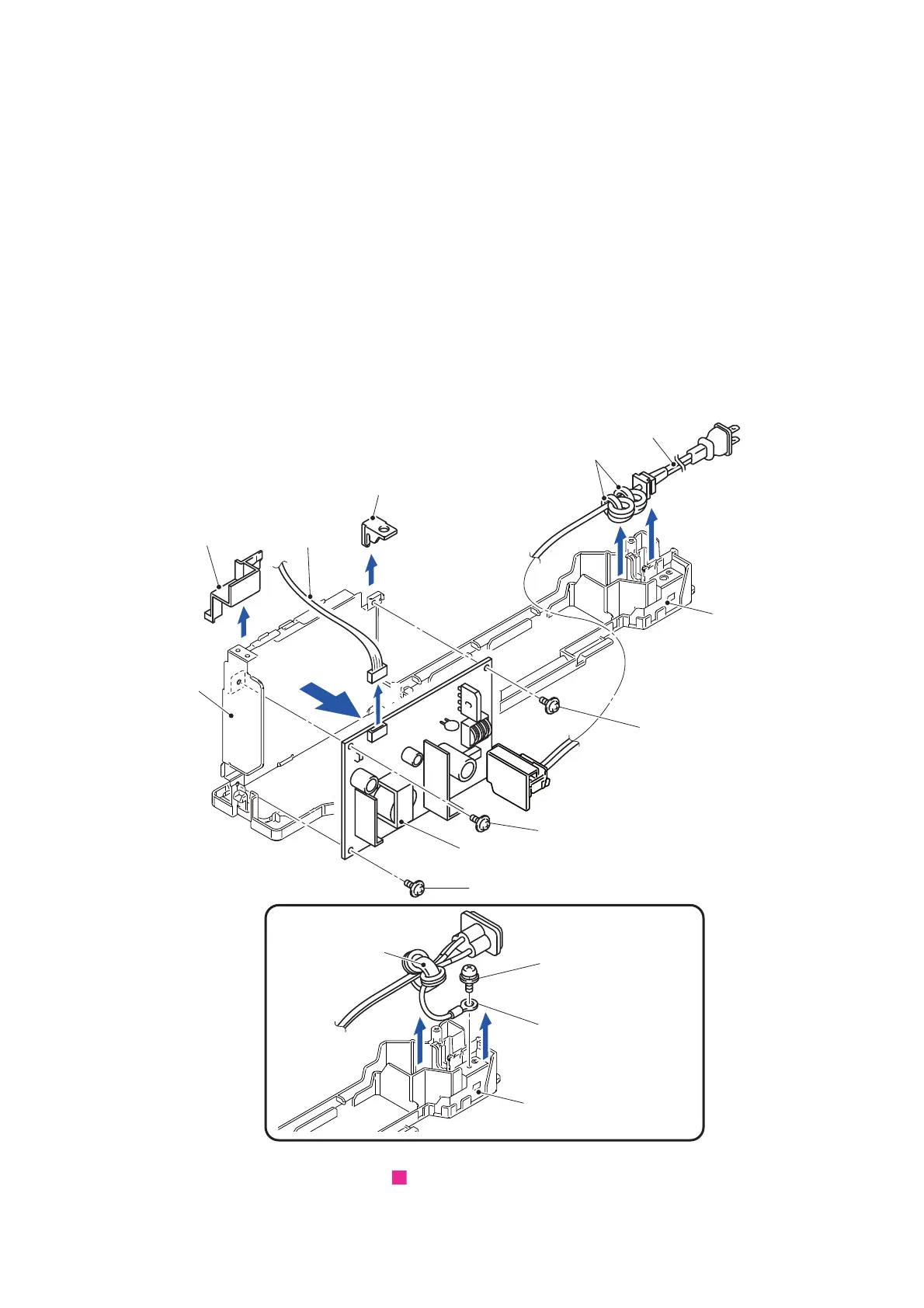

Fig. 3-165
Routing of harnesses: See “ Power supply PCB ASSY”.
Power cord
Ferrite cores
SCREW CUP M3x6
Power supply PCB ASSY
SCREW CUP M3x6
Power supply
Power supply unit
Enclosure base
5
5
7
8
SCREW CUP M3x6
4
4
<Case of 200 V>
Ferrite core
SCREW PAN
AC cord FG wire
Enclosure base
(S/P WASHER) M3.5x6
Protect holder R
harness
Protect holder L
6
6
12

Brother MFC-J6730DW Specifications

General

Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	4800 x 1200 DPI
Duplex printing mode	Auto
Print speed (black, normal quality, A4/US Letter)	22 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Scanner type	ADF scanner
Maximum scan area	295 x 429.8 mm
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	- DPI
Optical scanning resolution (black)	600 x 600 ppi
Optical scanning resolution (color)	600 x 300 ppi
Faxing	Color faxing
Fax memory	200 pages
Modem speed	33.6 Kbit/s
Fax forwarding to	PC
Fax speed dialing (max numbers)	100
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Display	LCD
Control type	Touch
Product color	Black
Market positioning	Home & office
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Maximum input capacity	501 sheets
Auto document feeder (ADF) input capacity	50 sheets
Envelopes sizes	C5, Com-10, DL, Monarch
Paper tray media types	Glossy paper, Plain paper, Recycled paper
Non-ISO print media sizes	Folio (media size), Ledger (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5, B6
Photo paper sizes (imperial)	9x13, 10x15, 13x18 \
Maximum ISO A-series paper size	A4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Ethernet LAN data rates	10, 100 Mbit/s
Internal memory	128 MB
Standard interfaces	Ethernet, USB 2.0
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (ready)	6 W
Power consumption (sleep)	1.6 W
Power consumption (copying)	28 W
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista

Weight and Dimensions

Depth	477 mm
Width	575 mm
Height	374 mm
