2.2 DISASSEMBLY & REASSEMBLY
2.2.1 Disassembly Procedure
[ 1 ] Removing the cassette cover ASSY, the tape cassette and the batteries
(1) Turn the machine upside down.
(2) Open the cassette cover ASSY by applying the force toward “A” direction.
(3) Push the rib “B” on the holder cam assembled on the cassette cover ASSY to the direction
of the arrow to remove the holder cam from the cassette cover ASSY.
Caution: Never draw out the holder cam. The rib “B” on the holder cam may be damaged.
(4) The cassette cover is removed by applying a force toward “D” direction of the arrow by
pushing the “C” section outward.
(5) Remove the tape cassette.
(6) Remove the batteries.

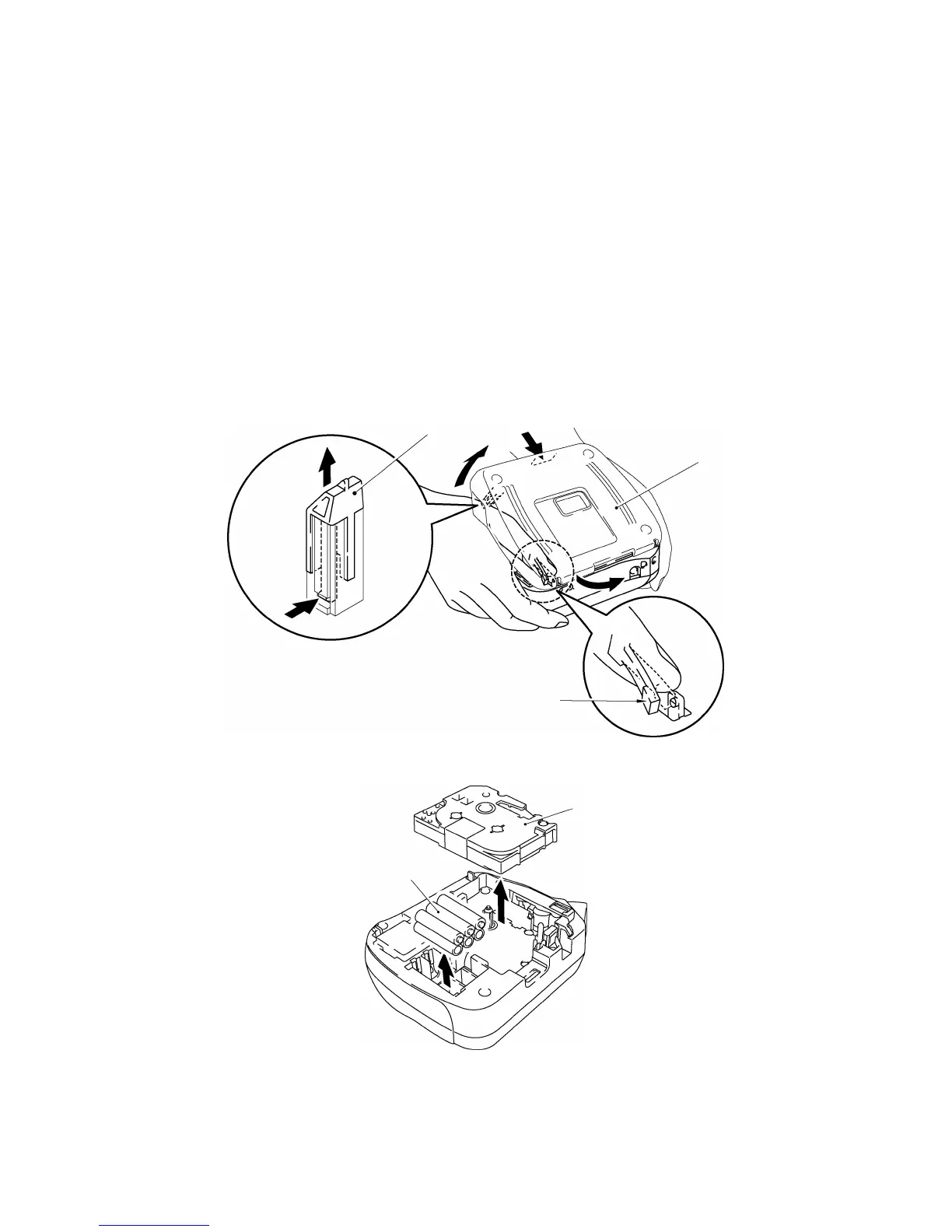

Fig. 2.2-1 Removing the Cassette Cover
Fig. 2.2-2 Removing the Tape Cassette and Batteries
Holder cam
“A”
“B”
Cassette cover ASSY
“D”
“C”
Tape cassette
Batteries
PT2002008
