Brother P-Touch PT-1180 Service Manual

II-13
[ 4 ] Removing the terminal press cover
(1) Remove the terminal press cover by releasing the hooks from the grooves of the bottom
cover.
You can remove the terminal press cover by releasing the two hooks from the back side of
the bottom cover by using tool like a flat screwdriver.
(2) Remove the battery terminal (-) from the terminal press cover.

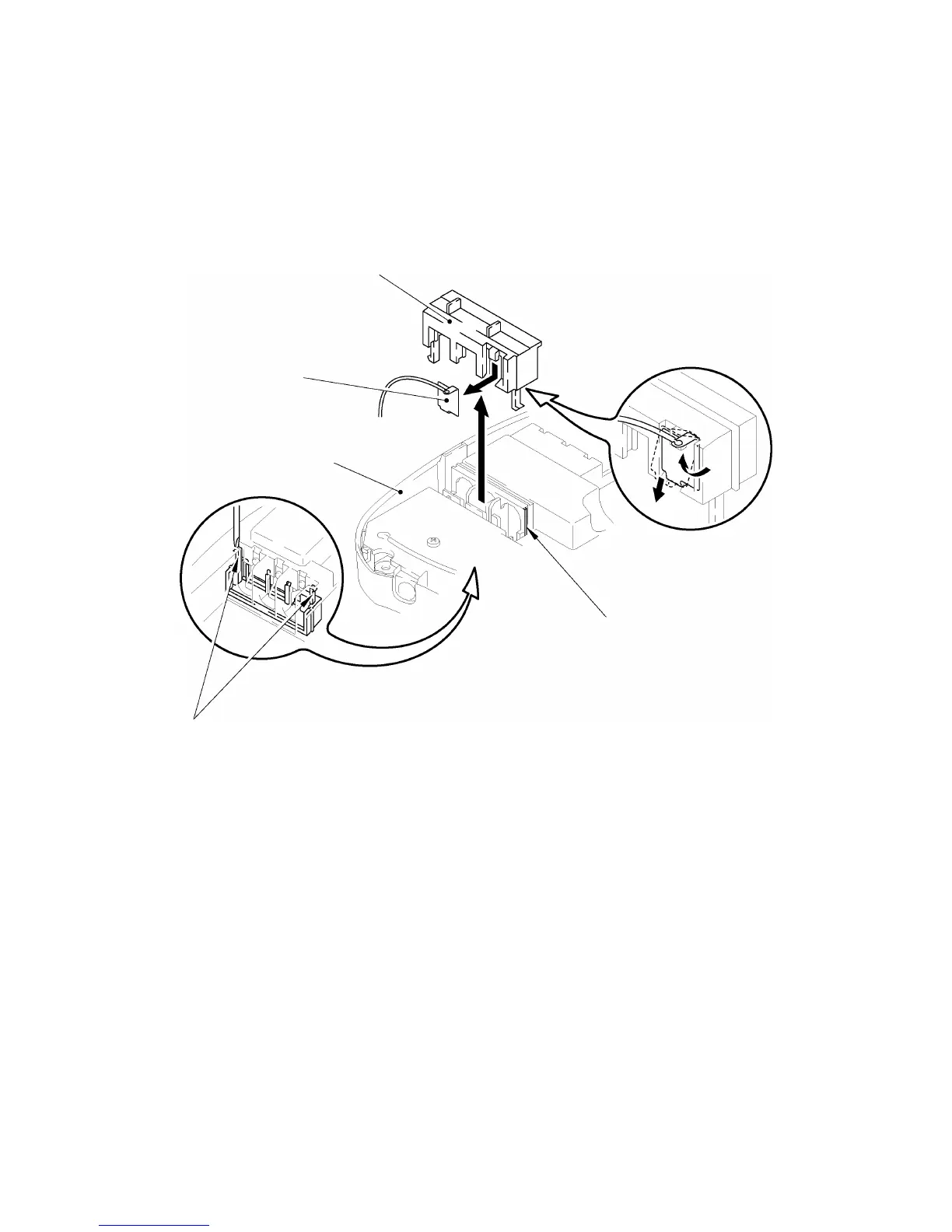

Fig. 2.2-9 Removing the Terminal Press Cover
Terminal press cover
Bottom cover
Groove
Hooks
Battery terminal (-)
