II-12
Removing the roller holder ASSY and thermal head ASSY
When handling the thermal head ASSY, do not touch the thermal head by hand. Otherwise, it may
be damaged due to the electricity charged in your body.
(1) After taking off the retaining ring, remove the roller holder ASSY and the roller holder return
spring from the frame ASSY.
(2) Remove a screw which secures the thermal head ASSY to the frame ASSY, then take out
the thermal head ASSY.

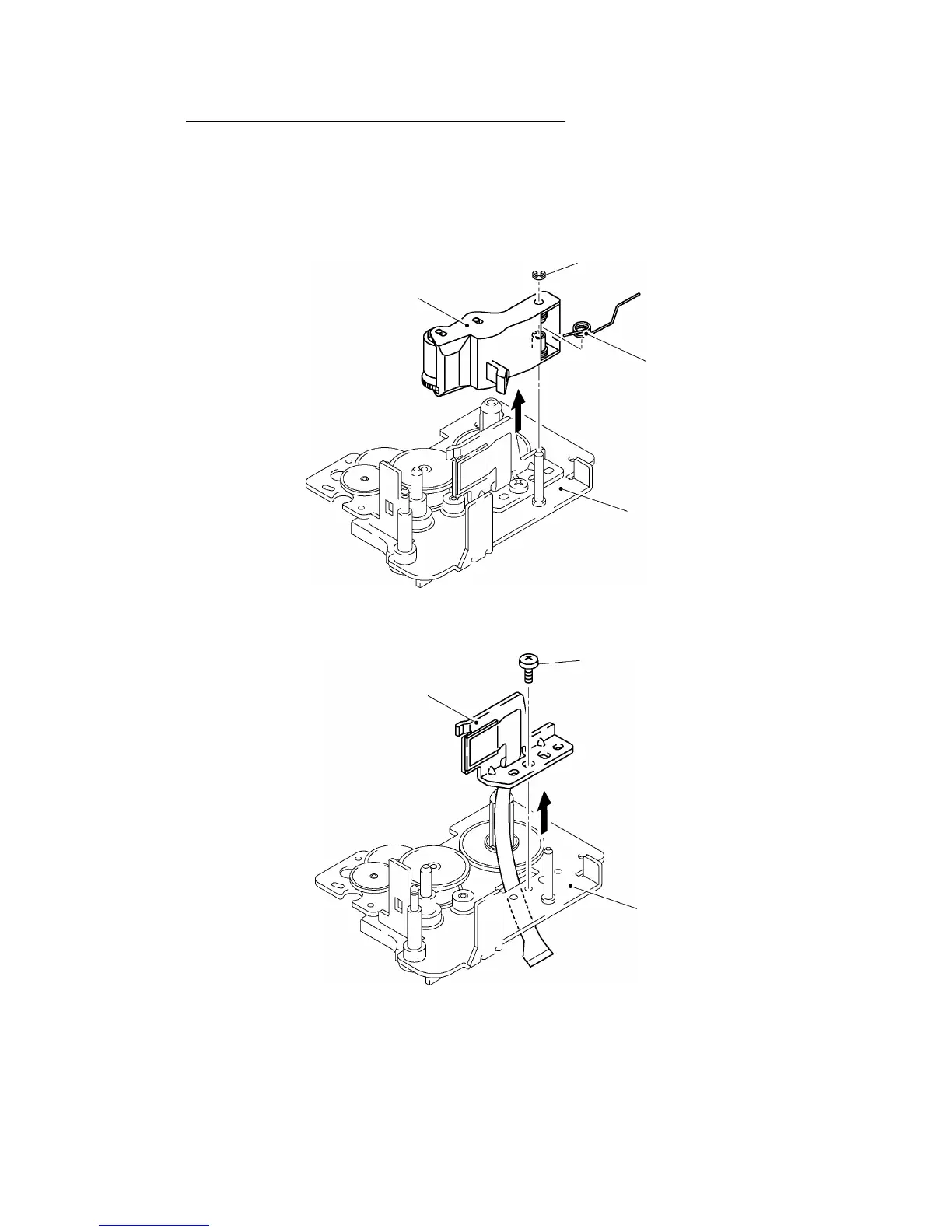

Fig. 2.2-7 Removing the Roller Holder ASSY
Fig. 2.2-8 Removing the Thermal Head
Roller holder release spring
Roller holder ASSY
Retaining ring
Frame ASSY
Screw
Frame ASSY
Thermal head ASSY
To Next Page
