II-14
[ 5 ] Removing the battery terminals
(1) Remove the battery terminal B (+,-) from the bottom cover.
(2) After disengaging the hook of the battery terminal (+) by tool like a flat screwdriver, remove
the battery terminal (+) from the bottom cover.

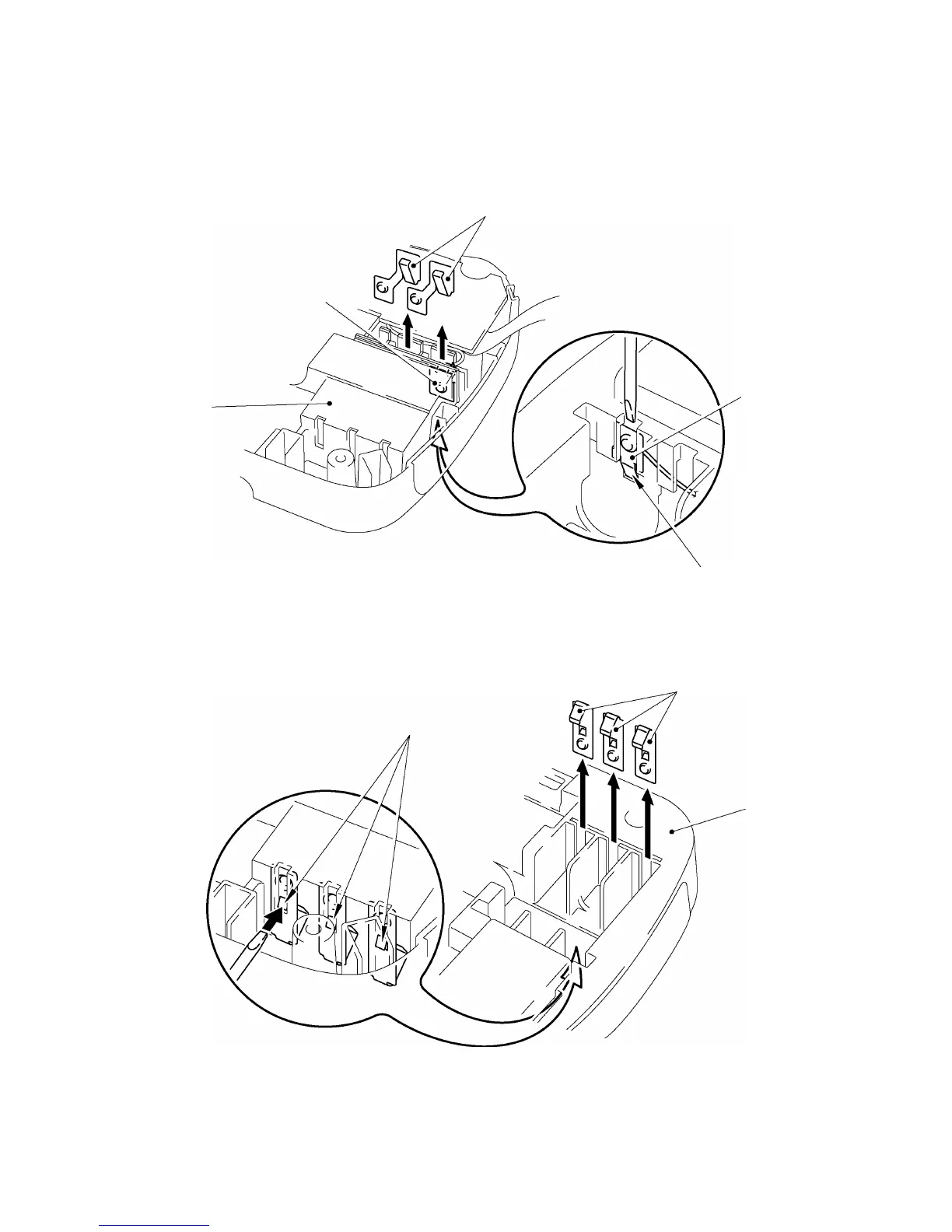

Fig. 2.2-10 Removing the Battery Terminals (1)
(3) Place the bottom cover upside down. After disengaging the hooks in “A” section of the
battery terminal A (+,-) by using tool like a flat screwdriver, remove the battery terminal A
(+,-) from the bottom cover.
Fig. 2.2-11 Removing the Battery Terminals (2)
Battery terminal B (+,-)
Bottom cover
Battery terminal (+)
Hook
Battery terminal (+)
Battery terminal A (+,-)
“A”
Bottom cover
