Brother P-Touch PT-1180 Service Manual

II-10
[ 3 ] Removing the frame ASSY
(1) Remove the two motor harnesses from the sub PCB by melting the solder.
(2) Remove the three screws and remove the frame ASSY from the bottom cover.
Note: The cutter lever will be disconnected from the cutter lever shaft of the frame Assy at this
point.

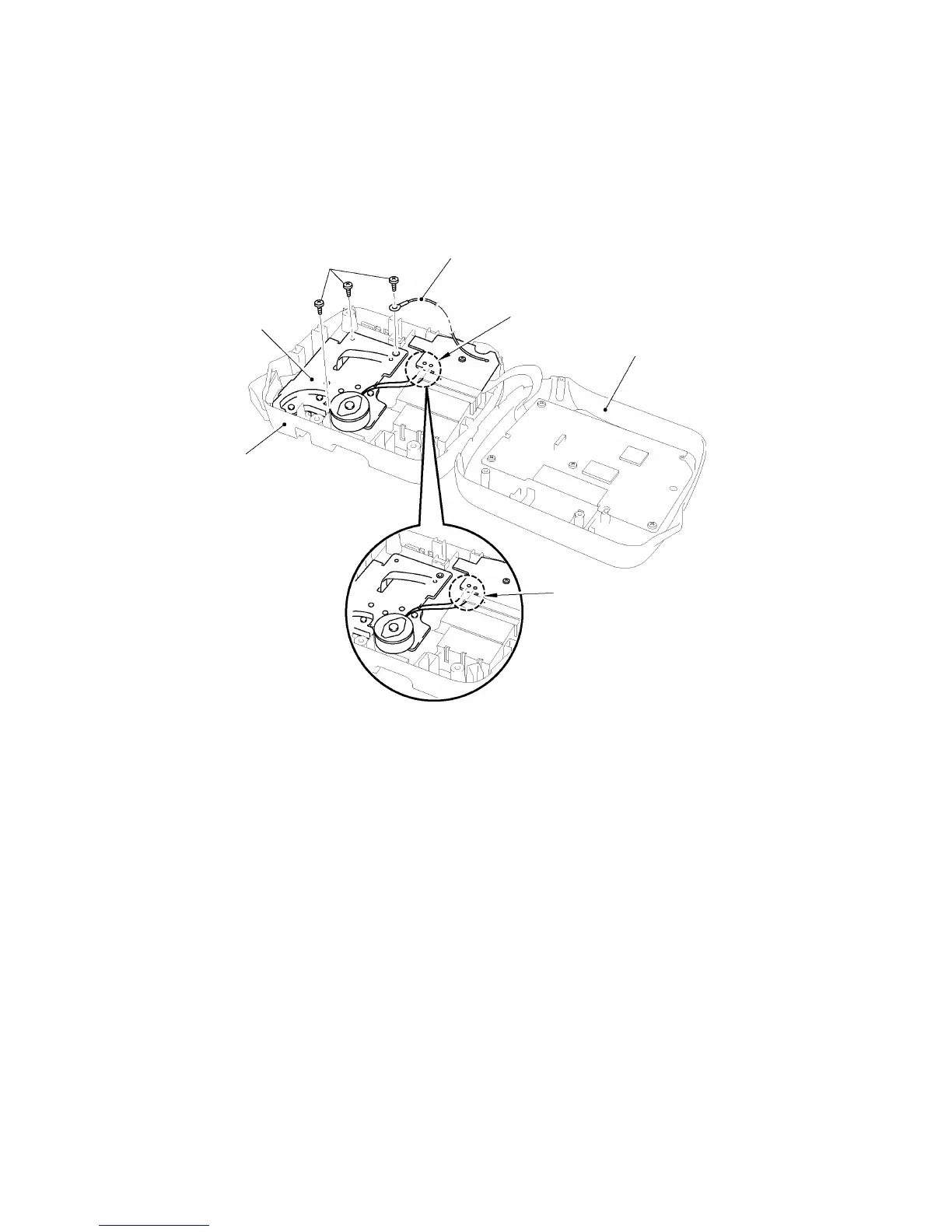

Fig. 2.2-5 Removing the Frame ASSY
FG harness
Screws
Bottom cover
Frame ASSY
Melting the solder
Upper cover
Melting the solder
