Brother P-Touch PT-1180 Service Manual

III-6
[ 3 ] Jog dial (Only for PT-1250/1160)
The two input signal (JOG0, JOG1) waveforms are varied by rotating the JOG dial. The rotational
directions are determined from the variation pattern of this two input signal waveforms.

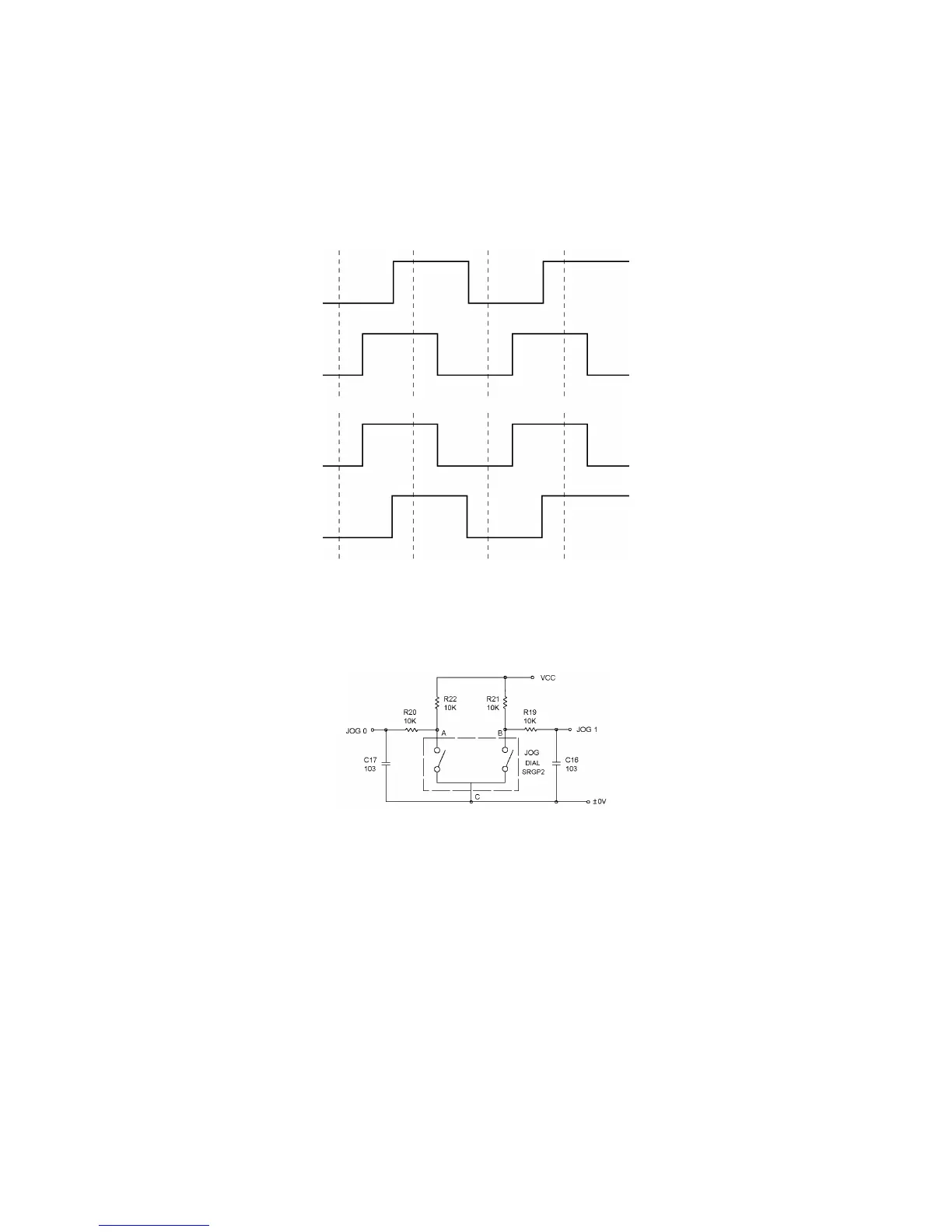

<JOG Switching Dial Signal>
Fig. 3.2-6
Fig. 3.2-7 Jog Dial Circuit
(CW)
JOG1 signal
JOG0 signal
JOG1 signal
JOG0 signal
(CCW)
