26II-
[ 8 ] Installing the tape cassette, the batteries, and the cassette cover ASSY
(1) Hook “A” of the cassette cover is set at the boss of bottom cover. The cassette is installed,
thereafter, at the “B” section by applying a force (sliding torque) toward “C”.

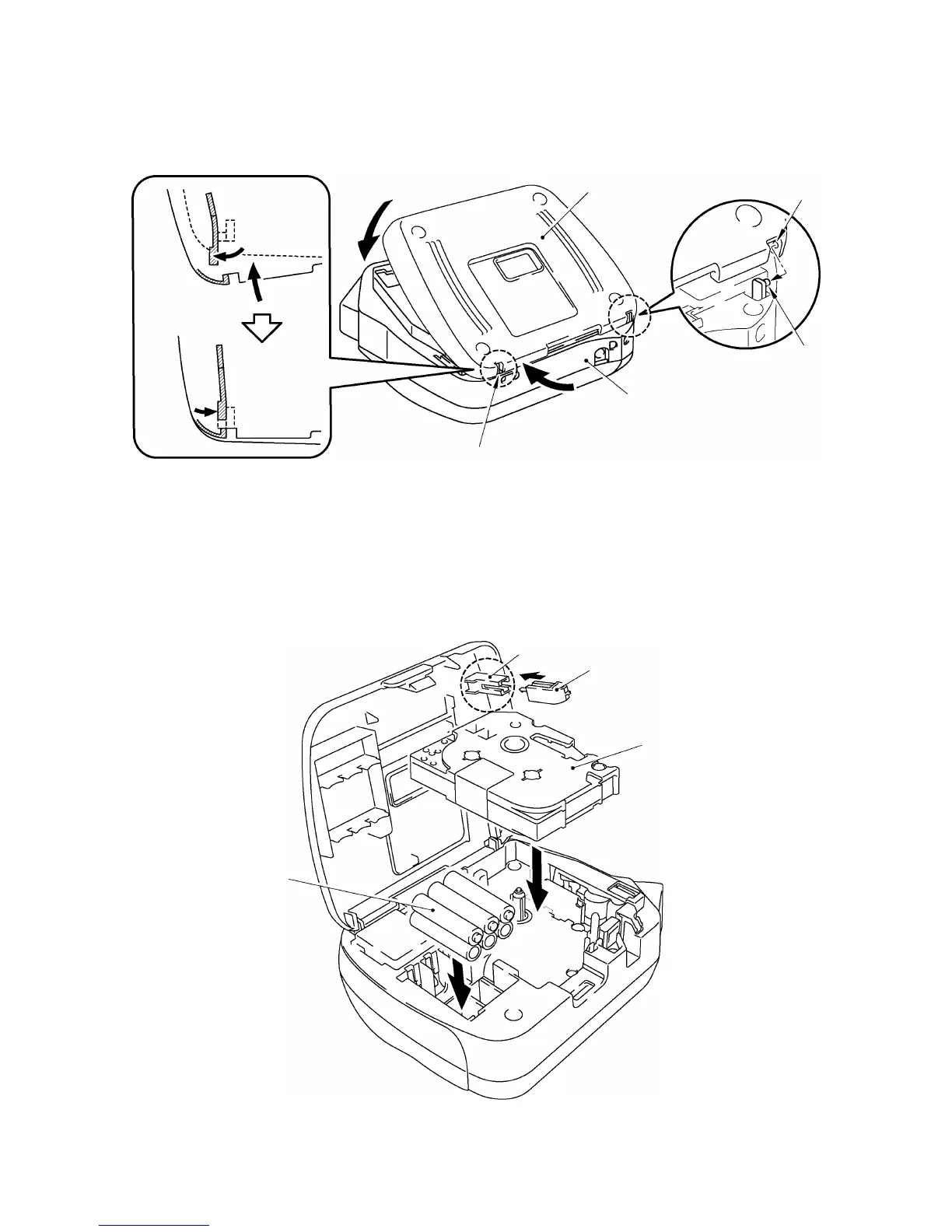

Fig. 2.2-29 Installing the Cassette Cover
(2) Install the holder cam to the cassette cover.
Caution1: Insert the holder cam into the cassette cover correctly. Check that the holder cam is
not removed easily.
Caution2: After checking that the “D” section on the cassette cover is not deteriorated or
damaged, install the holder cam into the cassette cover.
(3) Load the tape cassette.
(4) Put the batteries in the bottom cover.
Fig. 2.2-30 Installing the Tape Cassette, the Batteries and the Holder Cam
“B”
“A”
Boss
Bottom cover
Cassette cover ASSY
“C”
“D”
Holder cam
Tape cassette
Batteries
PT2002008
To Next Page
