25II-

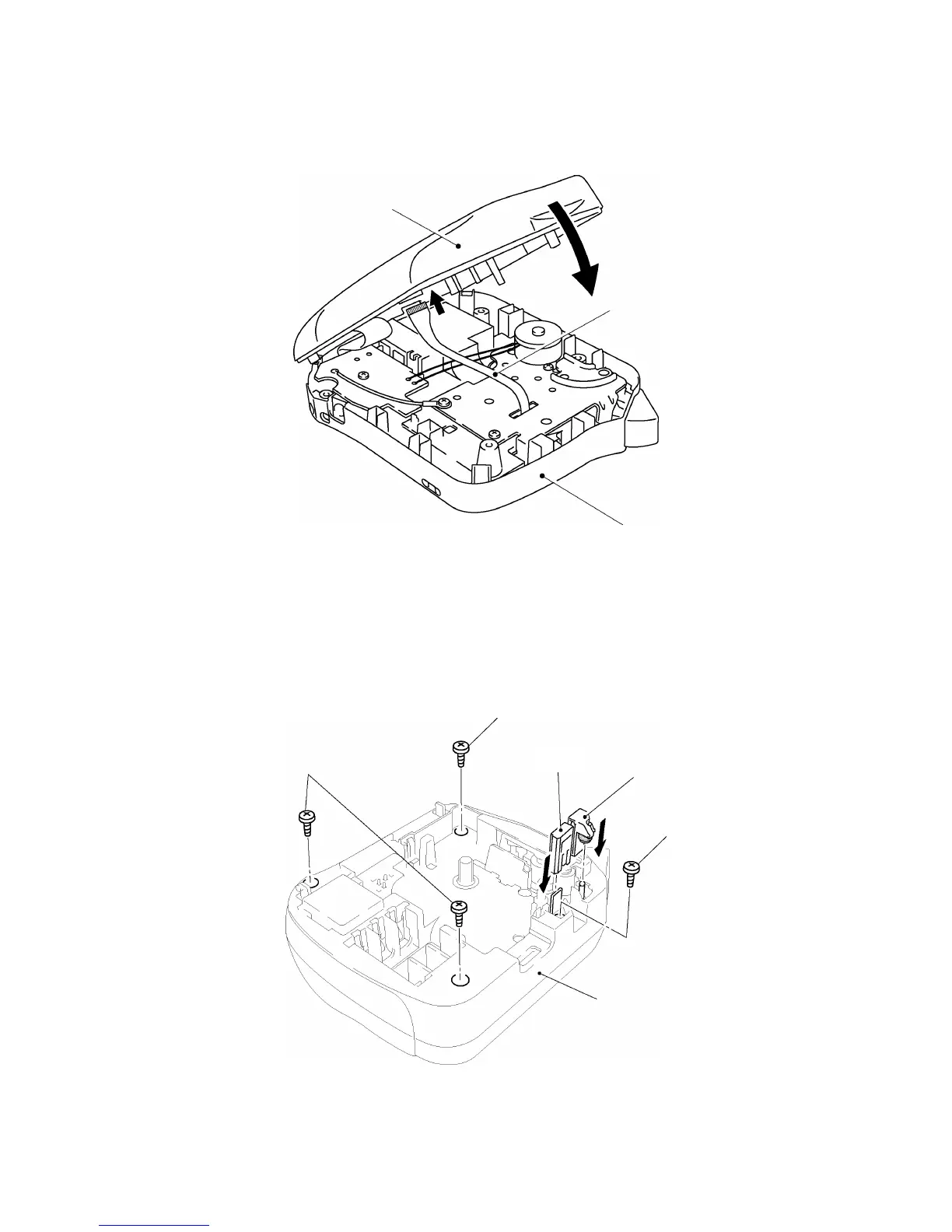

[ 7 ] Installing the cutter case ASSY, board and the bottom cover
(1) Hold the bottom cover as shown below, then connect the thermal head flat cable to the main
PCB through under the motor harness and the power supply harness connector.
Fig. 2.2-27 Installing the Bottom Cover (1)
(2) Place the upper and bottom cover upside down. And secure the bottom cover by four
screws.
Tightening torque: 0.39 N
.
m (4 kg
.
cm)
(3) The cutter case ASSY and board are inserted into the frame ASSY.
Note: When setting the bottom cover with upper cover, care must be taken so that the cable and
harness are not caught between them.
Fig. 2.2-28 Installing the Bottom Cover (2)
Bottom cover
Thermal head flat cable
Upper cover
Screw
Cutter case ASSY
BoardScrews
Screw
Bottom cover
To Next Page
