24II-
Installing the DC motor ASSY
(6) Tighten the DC motor to the frame ASSY with the two screws. Be careful to the direction of
the motor harnesses.
Tightening torque: 0.10 ∼ 0.20 N
.
m (1 ∼ 2 kg
.
cm)
Backlash of DC motor = 0.05 ∼ 0.2 mm

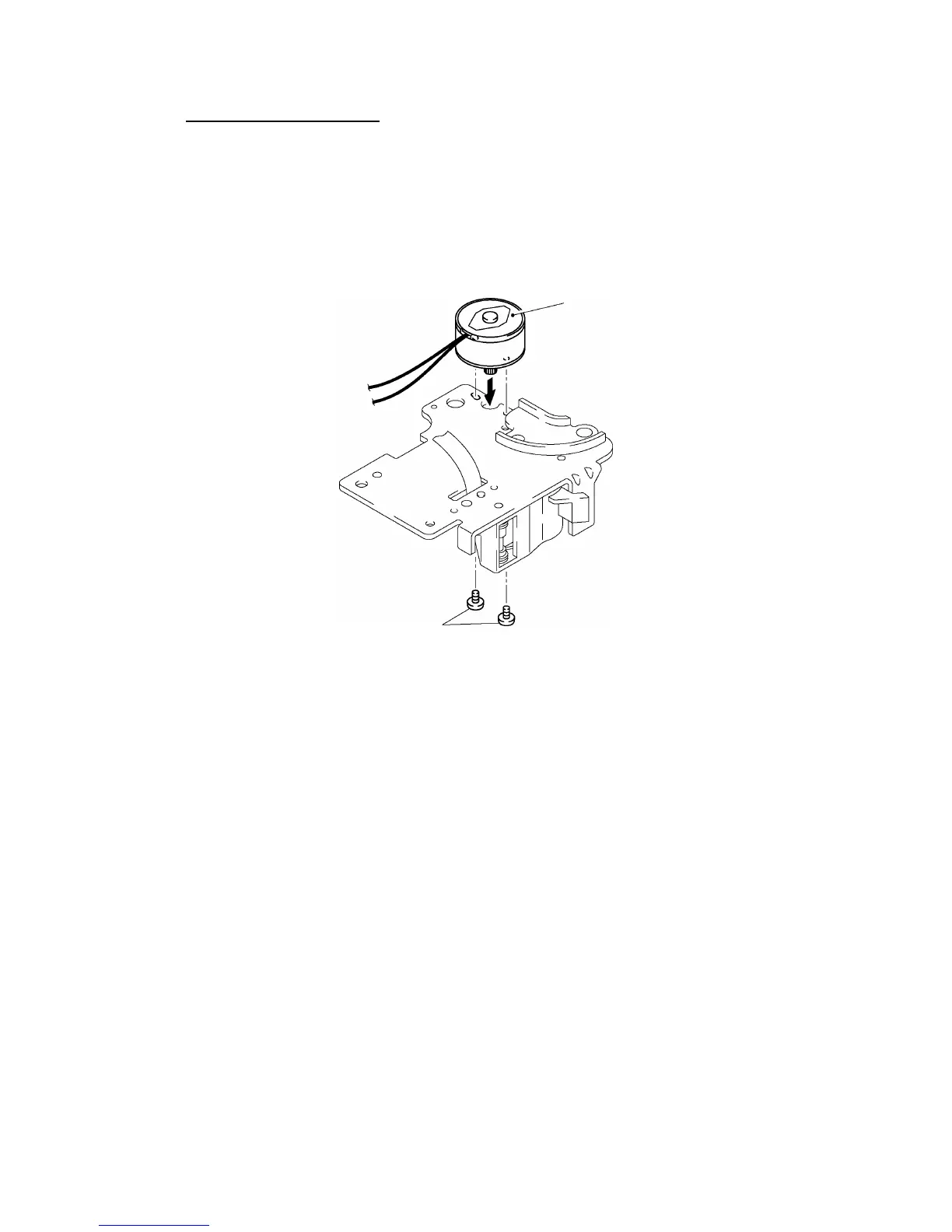

Fig. 2.2-26 Installing the DC Motor ASSY
DC motor ASSY
Screws
