II-11
Disassembling the Frame ASSY
Removing the DC motor ASSY
(1) Remove the two screws from the frame ASSY and take out the motor ASSY.

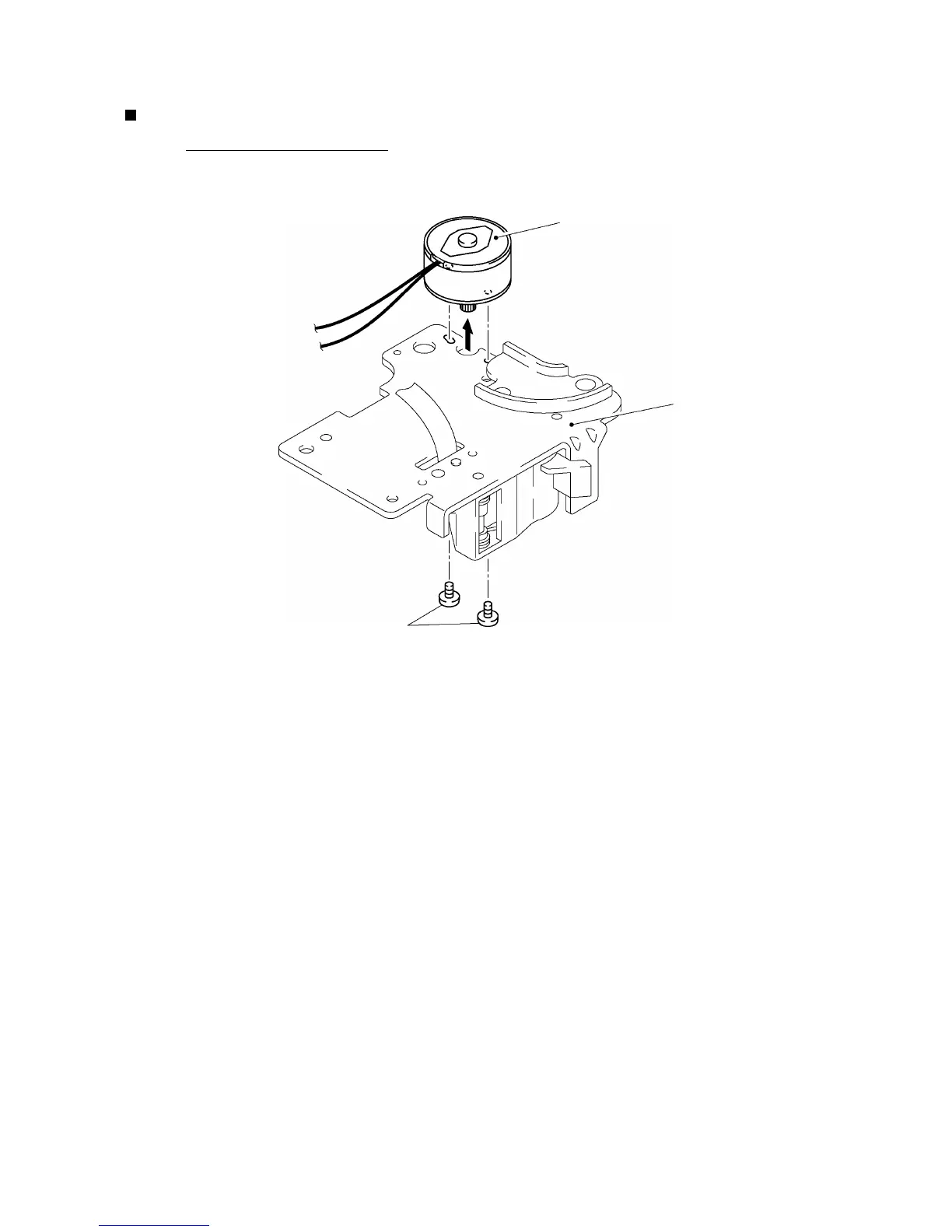

Fig. 2.2-6 Removing the DC Motor ASSY
DC motor ASSY
Screws
Frame ASSY
