114
ELECTRICAL AND IGNITION
TIMING ADJUSTMENTS

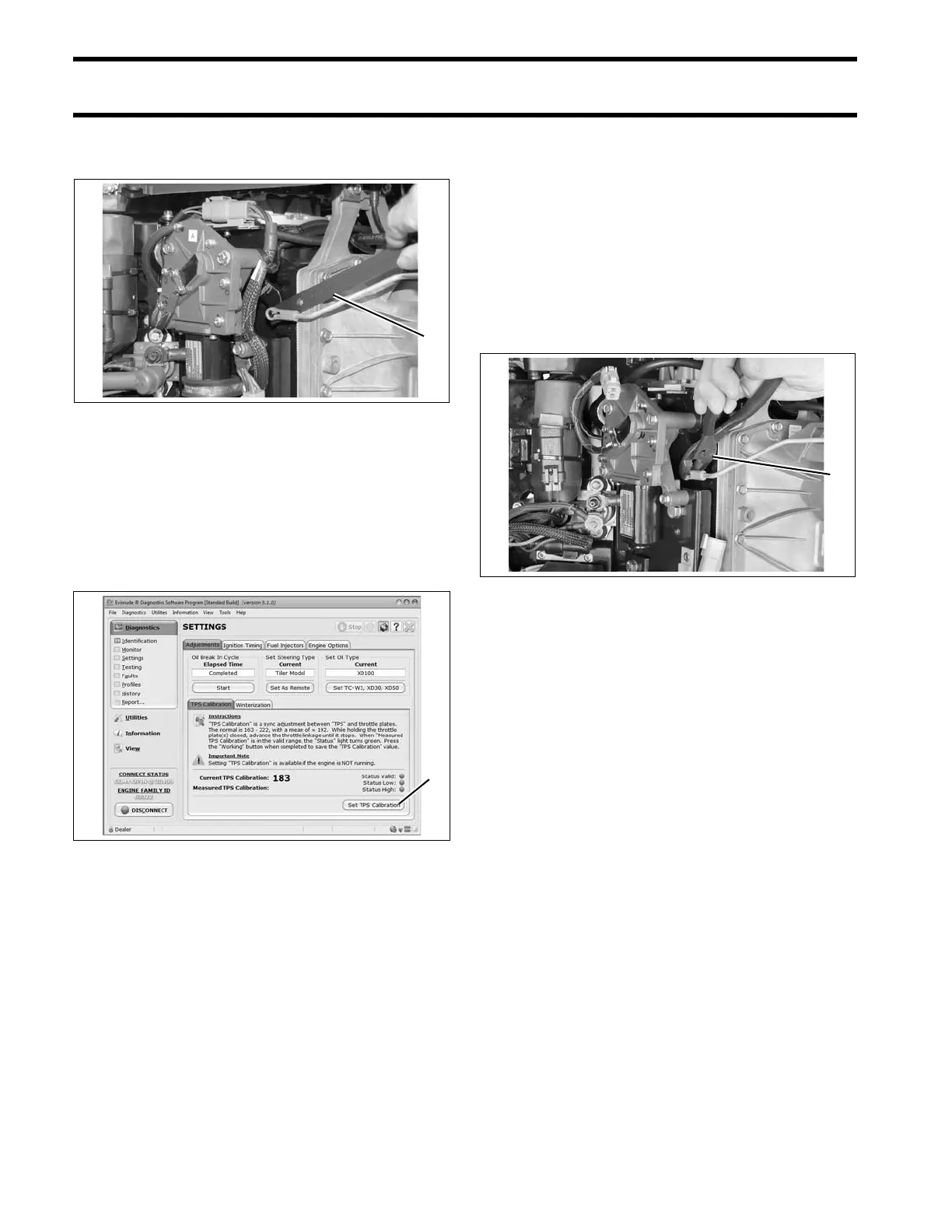

Use Ball Socket Remover, P/N 342226, to remove
throttle link from actuator arm.
Allow the throttle plates to return to the idle posi-
tion.
ALL MODELS
On the Settings/Adjustments screen of the diag-
nostics sof tware, click the “Set TPS Calibration”
button.
While holding the throt tle plates closed, advance
the throttle linka ge un til it stop s. Th e “Me asured
TPS Calibration” field on the screen will increase.
Click the “Working” button in the software to cali-
brate the TPS.
MODELS WITH ICON ELECTRONIC SHIFT AND
T
HROTTLE
Use Ball Socket Inst aller, P/N 342225, to install
throttle link onto actuator arm.
Return the ICON remote control to the NEUTRAL
position. The thro ttle actuator should move the
throttle plates to the idle position.
ALL MODELS
Connect the cra nkshaft position senso r (CPS).
Install the air silencer.
1. Ball socket remover 008034
1. TPS Calibration button 008571
1. Ball socket installer 007303
