OUTBOARD RIGGING CONNECTIONS
current, resulti ng in erratic operation of the
remote control system.
For more informati on, refer to t he ICON Remote
Control System Installation Guide.
Water Pressure Gauge
To displa y engine water p ressure, in stall a water
pressure hose fitting in the cylin der blo ck as
shown.
Use Pipe Sealant with Teflon on the threads of the
hose fitting. Refer to installation instructions sup-
plied with gauge.
Route the wa ter pressure hose aroun d the st ar-
board side of the powerhead along the same path
as the battery cables.
For an I-Command wate r pressure displa y, se v-
eral water pressure sensor kit s are available.
Refer to the Evinrude/Johnson Genuine Parts
and Accessories catalog.
To send wat er pre ssure da ta to the EMM, alo ng
with an I-Command d isplay, in stall a water pres-
sure transducer kit.
Water pressure readings in excess of 40 psi (275
kpa) are po ssible fo r 90 ° V6 models at bo at
speeds in excess of 50 mph (80 kph/43 kts).
Use 50 p si W ater Pressure Transducer Kit,
P/N 5008640.
Connect the transducer lead to the e ngine wiring
harness connector.

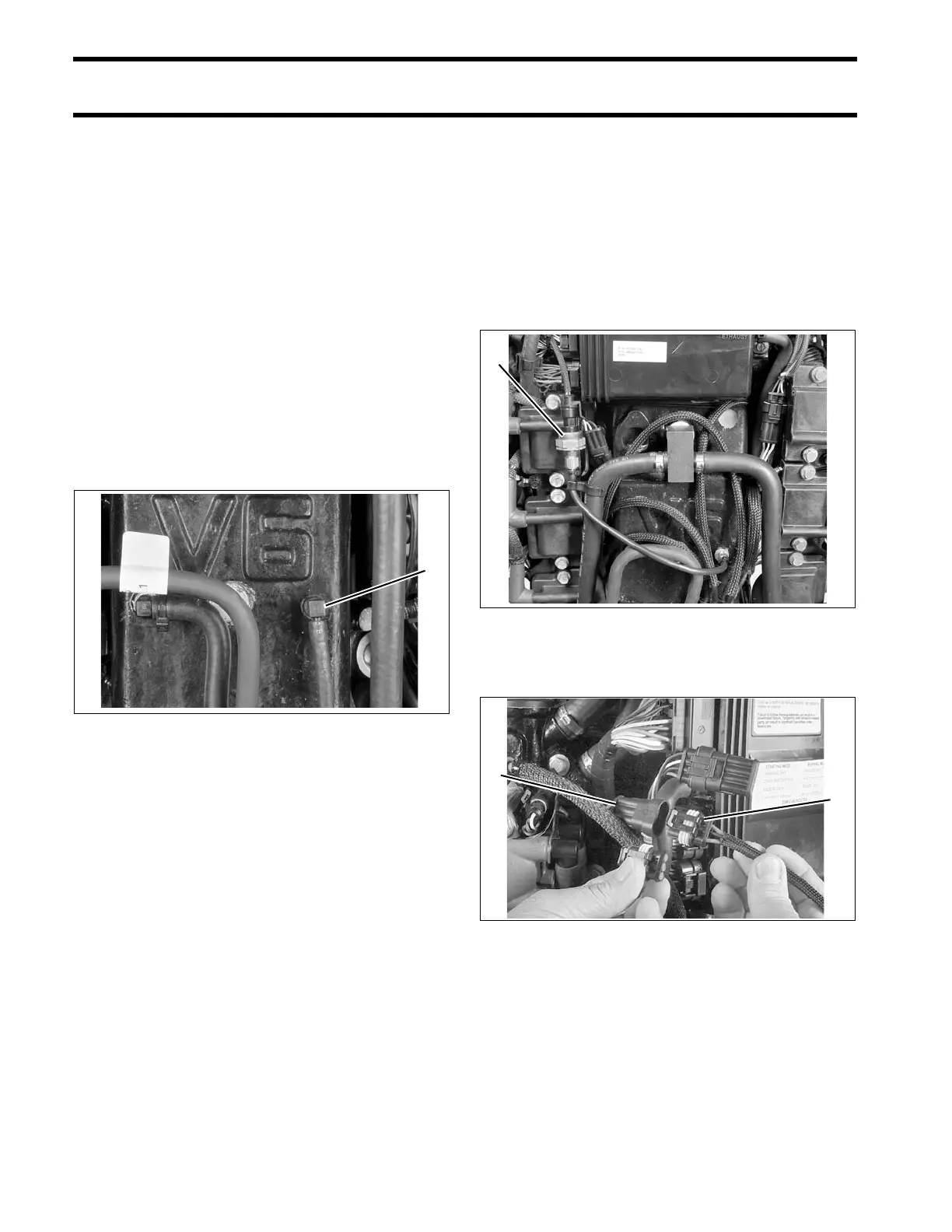

1. Water pressure hose fitting 005035
1. Water pressure transducer 008131
1. Water pressure transducer lead
2. Engine harness connector
004120
