TRIM AND TILT
MODES OF OPERATION
14
Manual Release – DOWN
When the manual release valve is opened and the
outboard is ma nually tilted do wn or trimmed in,
fluid f lows f rom th e botto m of the tilt cylinder ( in
the tilt range), or from the bottom of all of the cylin-
ders (in the t rim range), and p ast the manu al
release valve.
Fluid flows from the bot tom of th e tilt cylinder (in
the tilt range) to the top of the tilt cylinder. The
excess fluid, equal to the volume of the piston rod,
is vented to the reservoir.
In the trim ra nge, the fluid fro m the bot tom of all
three cylinder s is vented to the reservo ir, e xcept
for the amount required to fill the top of the tilt cyl-
inder.
After open ing the manual release valve, close it
firmly. The manual re lease valve must be closed
to enable the trim/tilt unit to function.

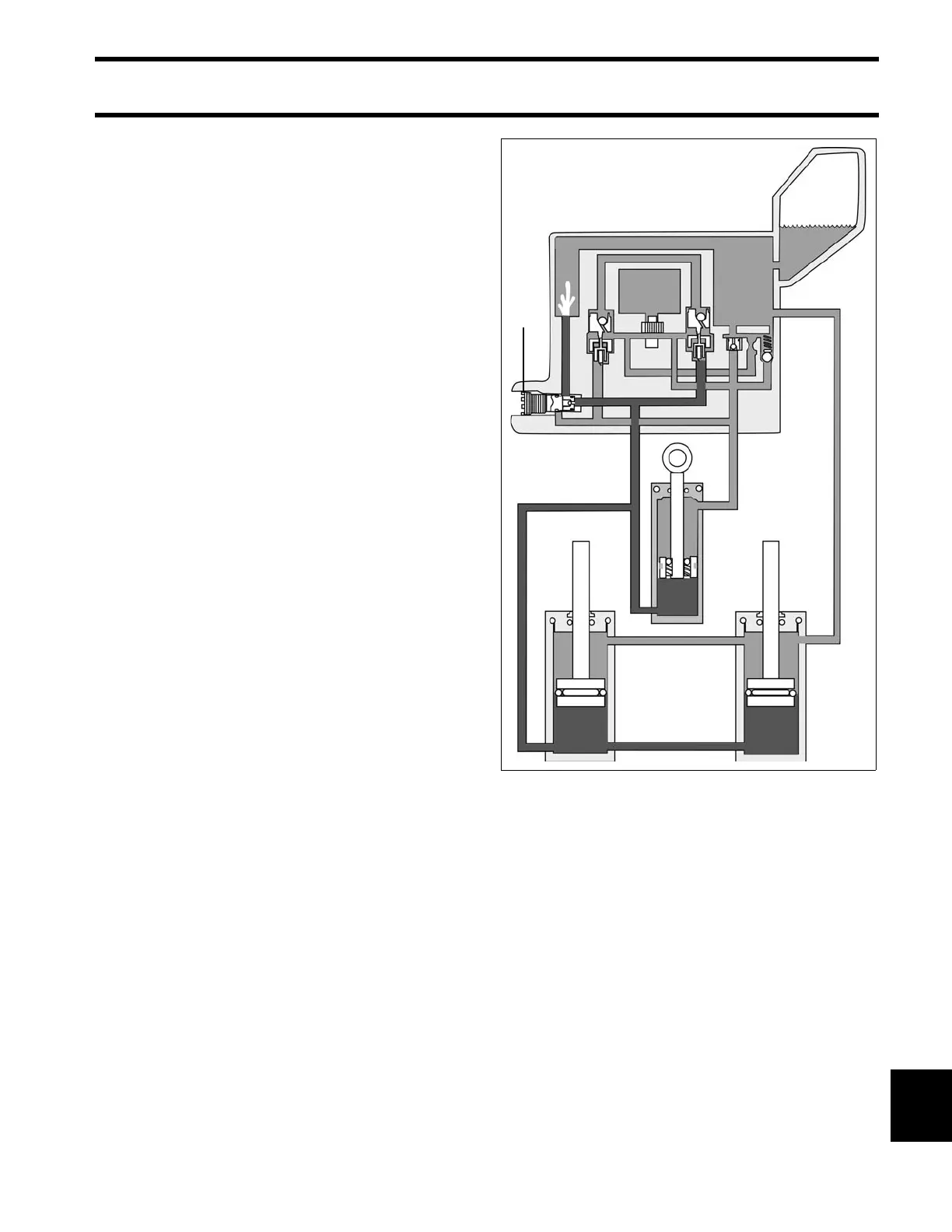

1. Manual release valve DRC3465
1
