EVINRUDE ICON REMOTE CONTROL SYSTEM
COMPONENTS
10
COMPONENTS
The ICON rem ote c ontrol sy stem consis ts of the
following components:
• ICON remote control and boat network
• One, two, three, four or five outboards
• Electronic Servo Module (ESM)
• Shift Actuator
• Throttle Actuator

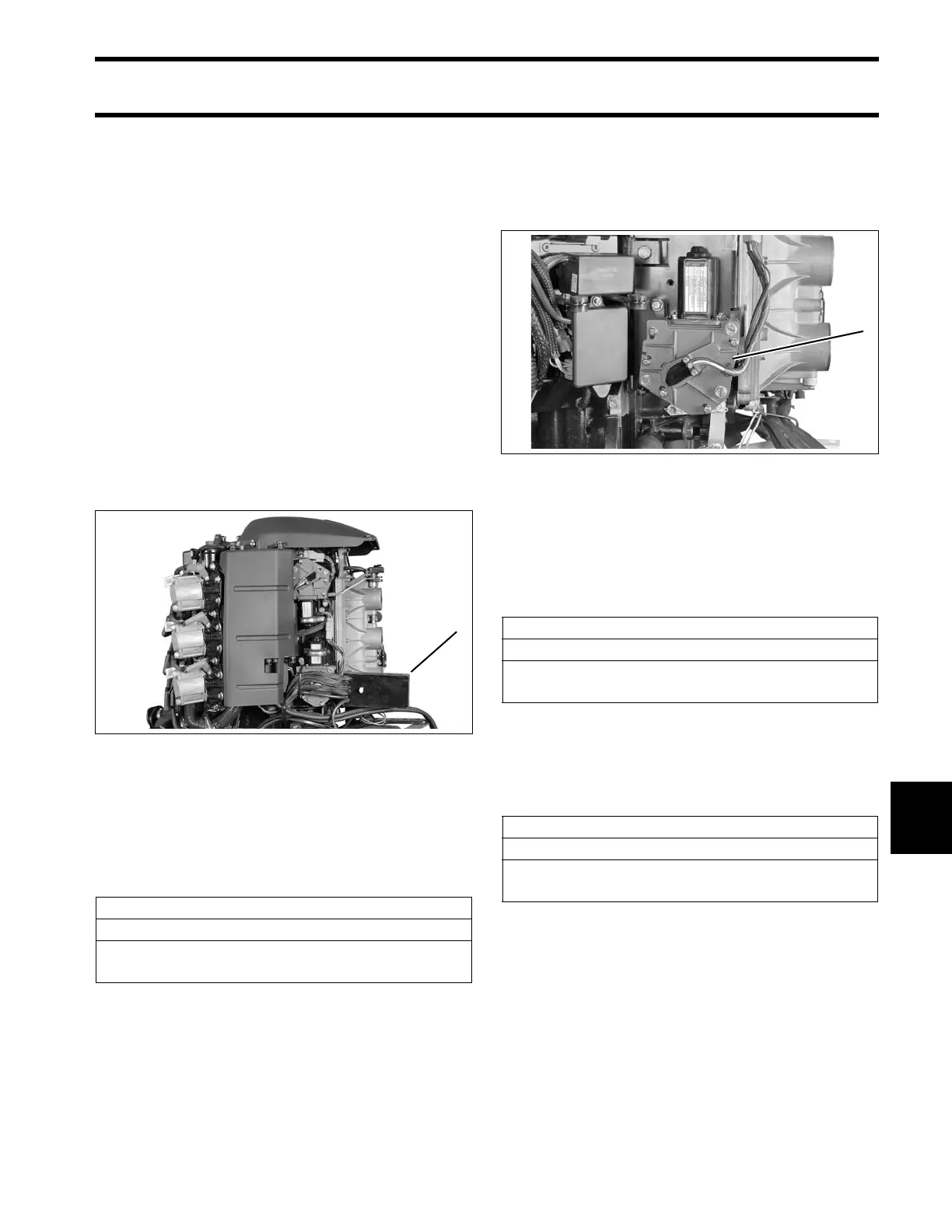

Electronic Servo Module (ESM)
The Electronic Servo Modu le (ESM) rece ives
shift, throttle and other con trol information from
the ICON remote control.
The ESM activates the shift and throttle actuators
to t he positions command ed by the remote con-
trol.
If the ICON remote contro l cannot commu nicate
with the ESM, all LED indicators flash until control
levers and shift actuators are in NEUTRAL.
Then, the NEUTRAL indicator LED for the out-
board that has a fault flashes. The EMM:
Shift Actuator
The shift actuator converts electronic signals from
the ESM into the mechanical motion required to
shift the outboard into and out of gear.
If the shift actuator sensor cannot determine gear
position, all LED indica tors flash unt il contro l
levers and shift actuators are in NEUTRAL.
Then, the NEUTRAL indicator LED for the engine
that has a fault flashes. The EMM:
If the shif t act uator is unable to move to a com-
manded positio n, the FORWARD, NEUTRAL or
REVERSE indicator LED flashes to indicate which
gear position is affected. The EMM:
Electronic Servo Module (ESM) 007525
Activates S.A.F.E.
Stores service code 108 and 111
Engine Monitor display: RPM reduction, ICON
fault 111, see dealer
Shift Actuator 008505
Activates S.A.F.E.
Stores service code 108 and 151
Engine Monitor display: RPM reduction, ICON
fault 151, see dealer
Activates S.A.F.E.
Stores service code 108 and 152
Engine Monitor display: RPM reduction, ICON
fault 152, see dealer
