MIDSECTION

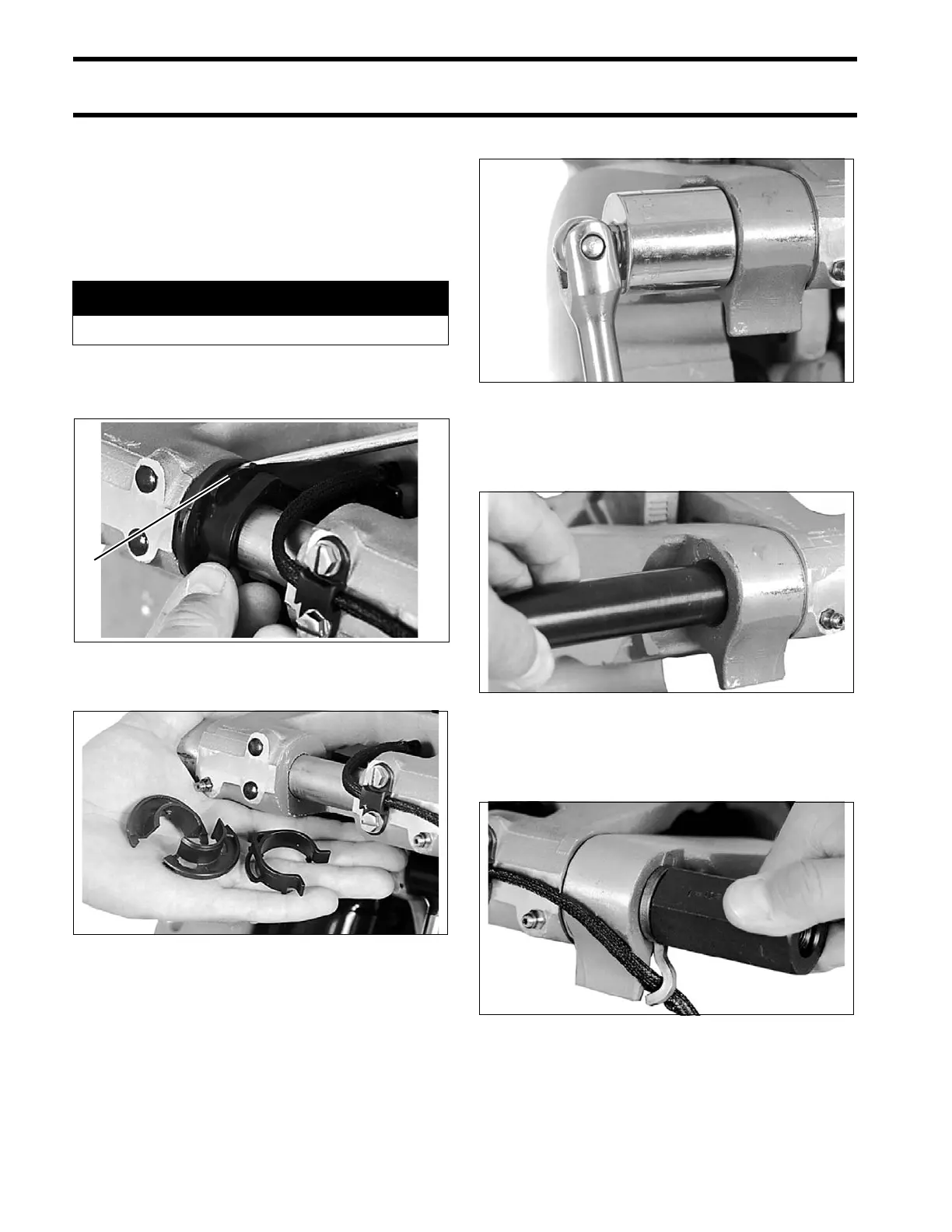

TILT TUBE
TILT TUBE
The tilt tube may be serviced without major disas-
sembly of the outboard using Tilt Tube Service Kit,
P/N 434523.
Removal
Pull the locking tabs on the tilt limit cam loose from
the collar.
Remove the cam and collar from the tilt tube.
Remove the nut from the starboard side.
Thread the spacer f rom Tilt T ube Service Kit,
P/N 434523, on to the st arboard end of th e tilt
tube.
Remove steerin g cab le wiper nut from tilt tub e.
Thread the adap ter from T ilt T ube Service Kit,
P/N 434523, onto the port end of the tilt tube.
A WARNING
Support the outboard with a suitable hoist.
1. Locking tabs 30749
30748
30747
30746
30745
