TRIM AND TILT
TRIM AND TILT SERVICE

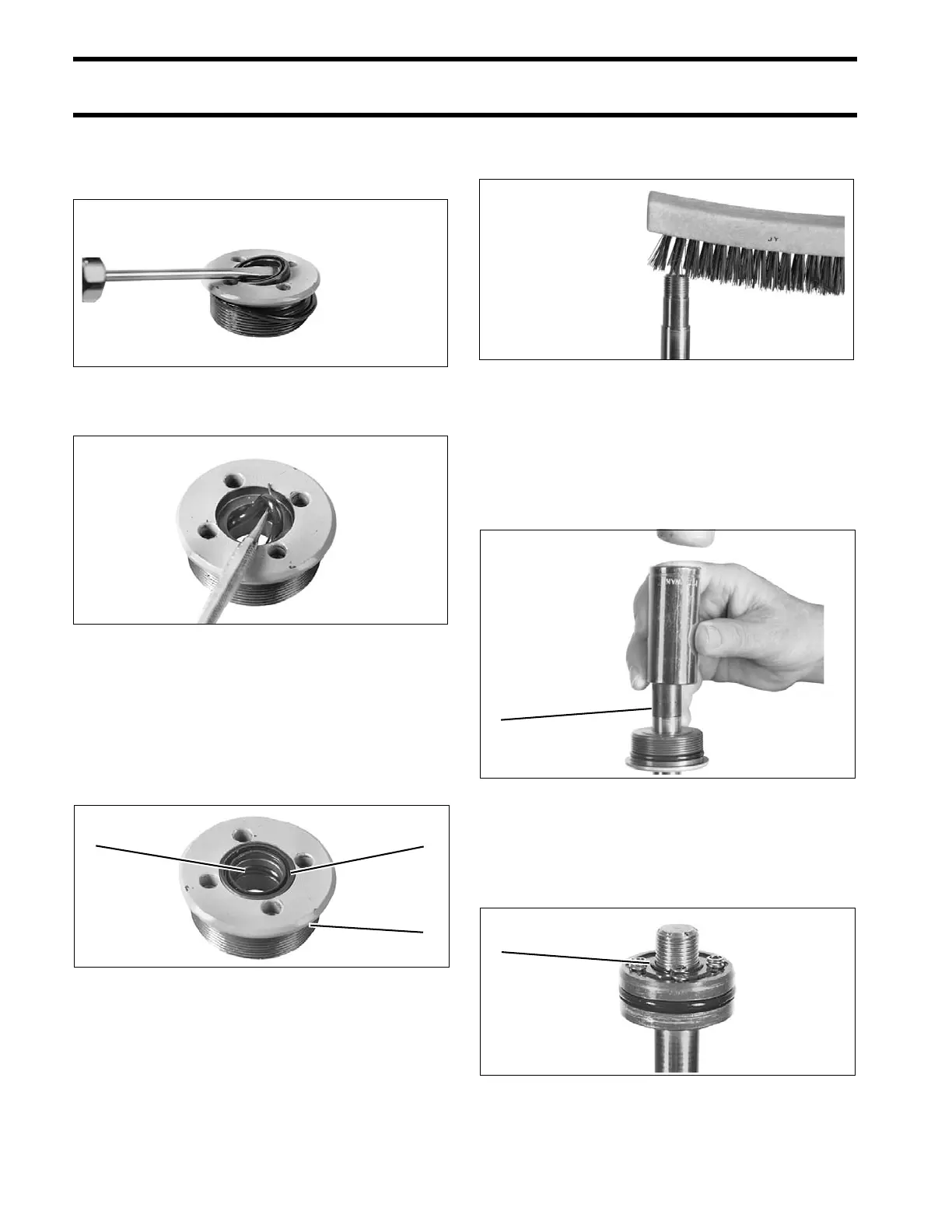

Use a screwdriver t o carefully pry the scraper out
of the end cap. Discard the scraper. Remove and
discard the large outer O-ring.
Remove and discard inner O-ring of the end cap.
Tilt Rod Assembly
Clean the end cap thoro ughly, then lubricate and
install a new O-ring in the en d cap. Lubricate and
install a new scraper. The scraper is installed with
the lip fa cing out. Lu bricate and inst all a new
O-ring on the outside of the end cap.
Use a wire brush to clean all thread-locking mate-
rial from the threads on the tilt rod.
Lubricate the inside surface of the end cap. Lubri-
cate an d in stall T ilt Cylinder Seal Protector,
P/N 326005. Use a deep-well socket and a plastic
mallet to drive the end cap ont o the rod, th en
remove the seal protector. Slide the end cap down
the tilt rod.
Remove any lubricant from the threads on the tilt
rod, prime with Locquic Primer, and let d ry. Slide
the piston assembly onto the tilt rod. Place a new
rod O-ring over the threads.
41791
41792
1. Inner O-ring
2. Lip
3. Outer O-ring
41795
41821
1. Tilt Cylinder Seal Protector P/N 326005 41824
1. O-ring 41816
To Next Page
