COOLING SYSTEM

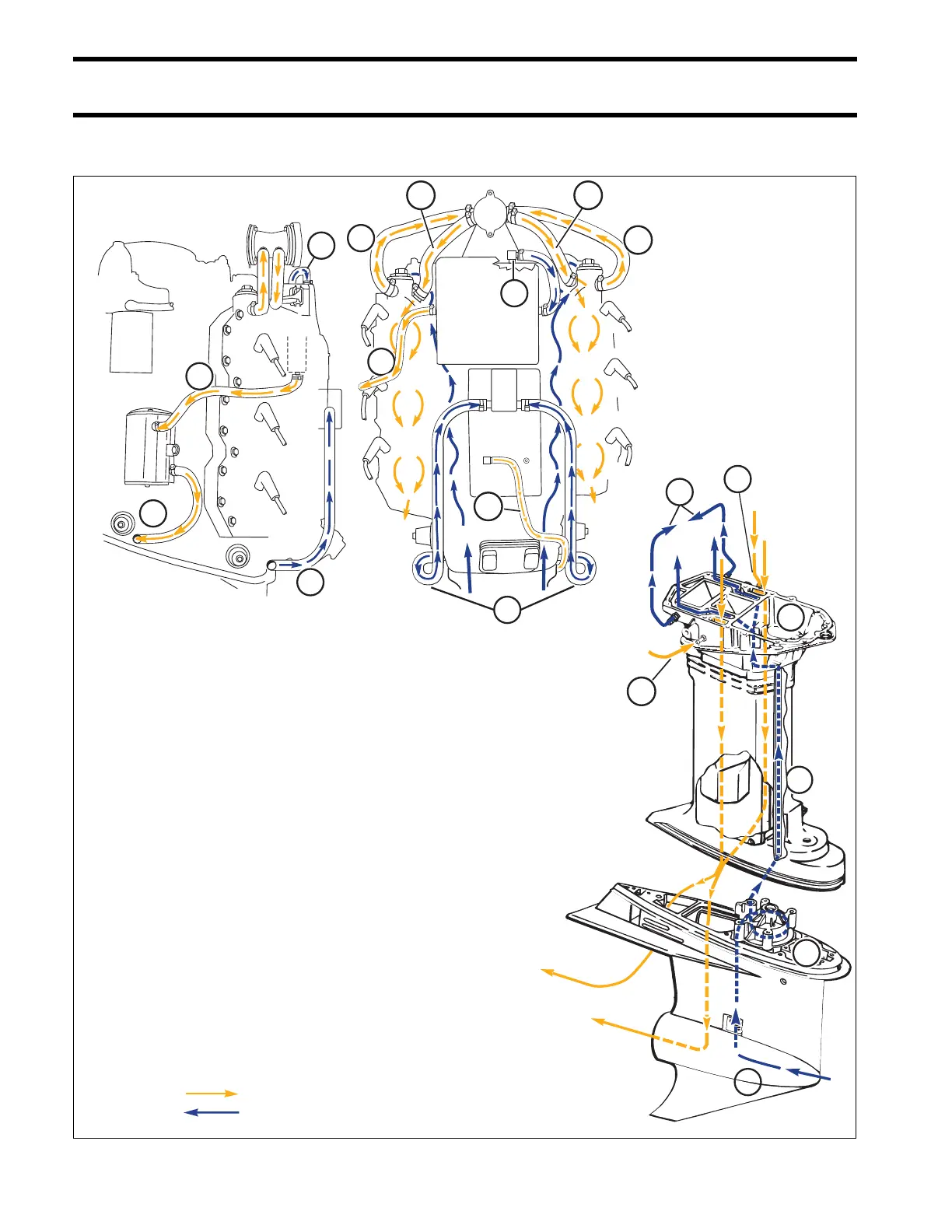

HOSE ROUTING AND WATER FLOW DIAGRAM 3.3 L
HOSE ROUTING AND WATER FLOW DIAGRAM 3.3 L
1
9
2
7
5
4
11
8
10 12
3
7
8
5
5
6
004109
6
13
13
REAR
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Water intake screens
Water pump
Water tube
Adapter housing
Water supply, adapter to cylinder block
(port and starboard)
Water supply to EMM (cylinder block vent)
Water supply, EMM to vapor separator
Vapor separator water outlet to adapter
Port thermostat tower to blow-off valve
Blow-off valve to port cylinder head
Starboard thermostat tower to blow-off valve
Blow-off valve to starboard cylinder head
Water supply to propeller hub cooling
Outgoing water (warm/hot)
Incoming water (cool)
PORT
