274
MIDSECTION

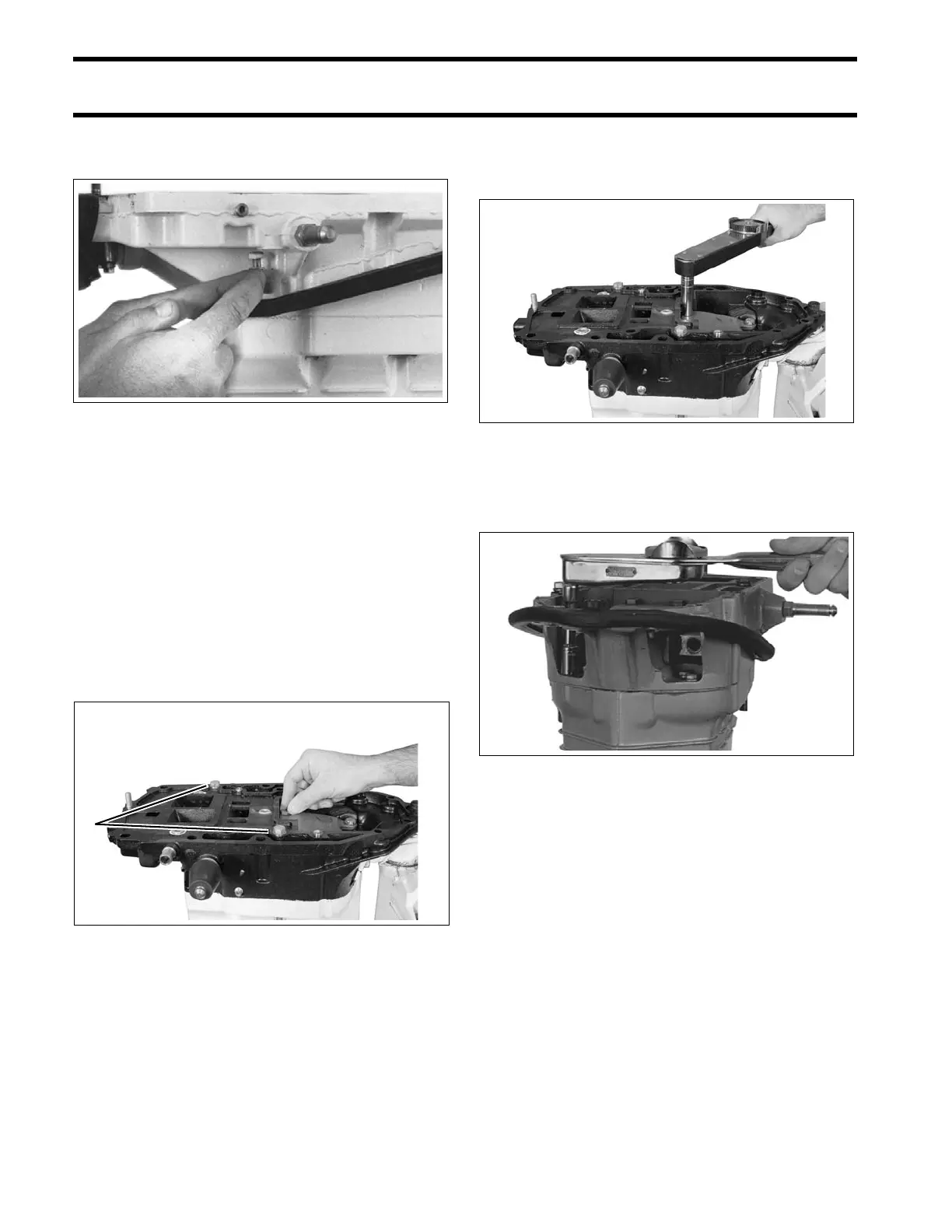

EXHAUST HOUSING SERVICE
Loosely inst all the small r etaining screws, n uts,
and washers.
Lubricate the up per mount with soapy water and
push into place in the adapter housing. The mount
radius mu st face aft with the “TOP” mark facing
up.
Apply Locquic Primer and Nut Lock to the up per
mount p late scre ws and inst all the p late a nd
screws loosely. Inst all the ground le ad and st ar
washer under the forward starboard screw.
Align the out er exhaust housing and adapte r by
placing two powerh ead mounting screws throu gh
their holes.
Install fou r mount plate screws and washers a nd
tighten t o a to rque o f 22 to 24 f t. lbs. (30 to 33
N·m).
Tighten the small ad apter to exhaust ho using
screws and nuts to a torque of 60 to 84 in. lbs. (7
to 9.5 N·m).
32580
1. Powerhead mounting screws 006985
006986
13691
